Technical Specifications
Overview
High-Efficiency Distribution Transformer
This three-phase oil-immersed transformer is engineered for reliable power transmission and distribution in industrial and agricultural settings. Featuring an advanced cooling design with corrugated tank plates, it eliminates the need for a conservator while ensuring optimal thermal management. Built for durability and consistent performance, it is suitable for 10kV-110kV power systems.
Technical Specifications
- Phase Configuration
- Three-phase
- Cooling System
- Corrugated plate tank (no conservator)
- Voltage Range
- 10kV - 110kV
- Rated Frequency
- 50 Hz
- Suitable Applications
- IndustrialAgriculturalPower TransmissionDistribution
Design & Construction
Key Construction Features

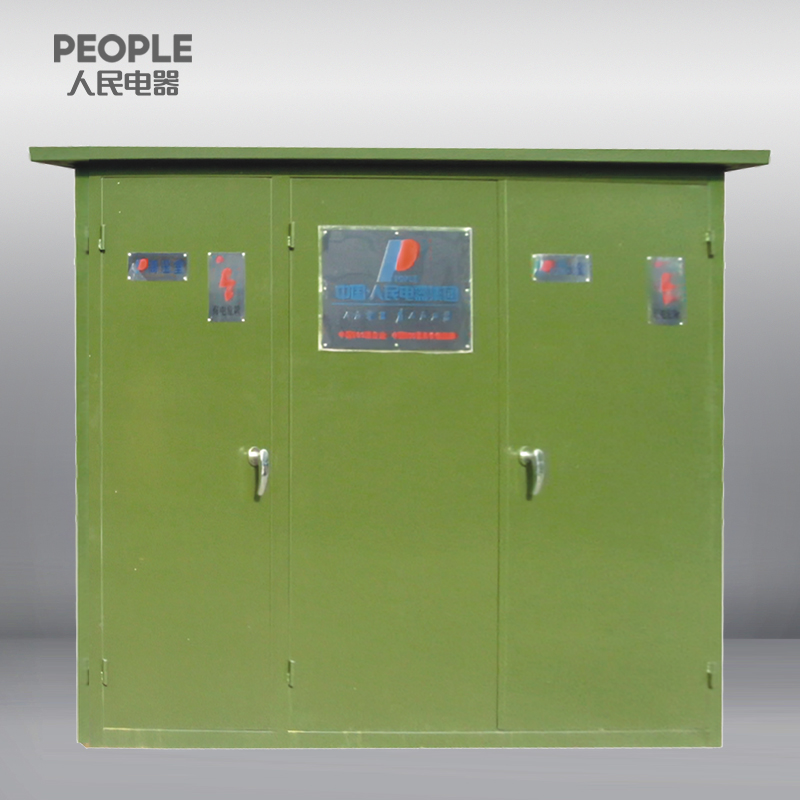

- Robust heavy-duty metal enclosure
- High insulation strength
- Multiple access doors with secure locking
- Integrated surge arrestors
- Sturdy base support
