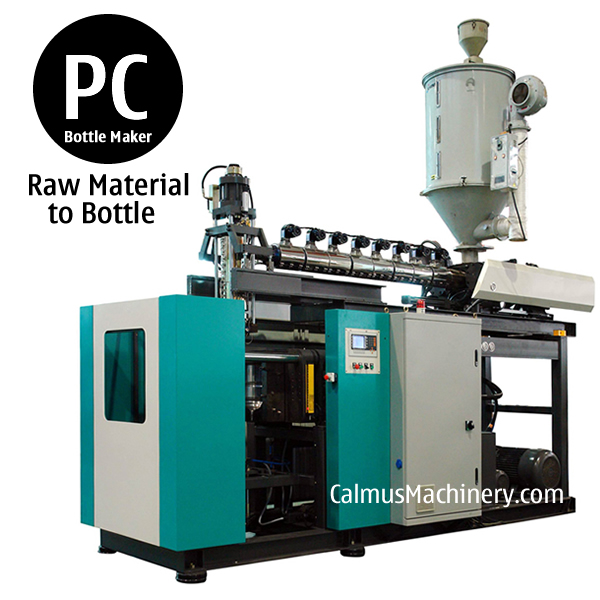

Polycarbonate Bottle Blow Molding Machine
This machine produces bottles directly from polycarbonate raw material using blow molding. It is capable of making 3-gallon, 5-gallon, 11-liter and 19-liter bottles.
Technical Specifications
Overview
High-Efficiency Polycarbonate Blow Molding
This advanced blow molding machine is engineered to transform polycarbonate (PC) resin granules directly into high-quality 20-liter or 5-gallon bottles. By eliminating the need for preforms, it streamlines the production process, allowing for efficient, high-volume manufacturing of durable containers with or without handles. The system features precise wall thickness control and a robust clamping unit to ensure consistent, professional-grade results for the beverage industry.
Production Capabilities
Key Performance Metrics
60 pcs/hr
Production Capacity
20 L
Bottle Volume
98 %
Qualification Rate
- Compatible Bottle Types
- 20 Litre5 GallonWith HandleWithout Handle
Plasticizing System
Plasticizing Specifications
| Parameter | Value |
|---|---|
| Screw Diameter | 85 mm |
| L/D Ratio | 28 |
| Plasticizing Rate | 80 kg/hr |
| Injection Stroke | 360 mm |
| Screw Speed Range | 10-56 rph |

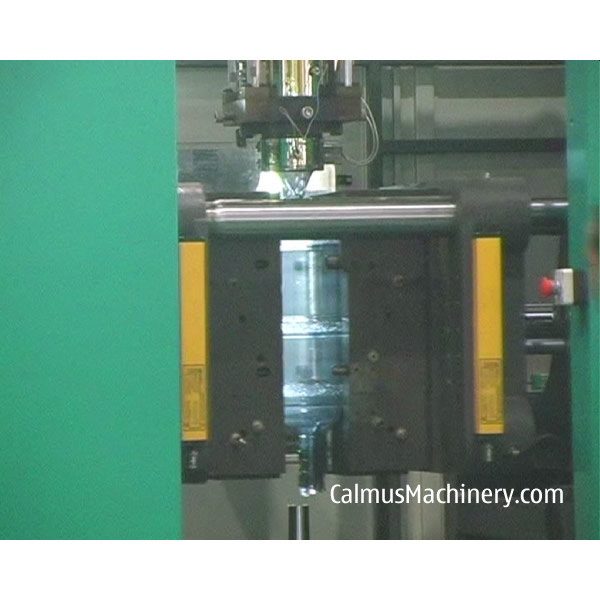

Clamping System
Clamping System Details
- Clamping Force: 190 kN
- Clamping Stroke: 350 mm
- Mould Thickness Range: 370-410 mm
- Max Opening between Platens: 720 mm
Power and Utilities
Power Consumption
84 kW
General Power
58 kW
Average Electrical Rating
Utility Requirements
| Utility | Requirement |
|---|---|
| Air Pressure | 6-10 bar |
| Air Consumption | 0.4 m³/min |
| Water Pressure | 2-3 bar |
| Water Consumption | 6 m³/min |
Machine Specifications
Dimensions and Weight
- Dimensions: 4,985 x 1,465 x 2,765 mm
- Weight: 6 tons (excluding hydraulic oil and mould)
- Control System
- 100-point wall thickness control with 6" color display
