Platform Hand Truck Trolley
This heavy-duty platform hand truck trolley is designed for moving heavy loads with ease. It is available in 150KG and 300KG capacity models and features a robust construction and smooth-rolling wheels.
Technical Specifications
Overview
Versatile Platform Hand Truck
This professional-grade platform hand truck is designed for efficient material handling in supermarkets, offices, workshops, and various transportation environments. Featuring a foldable design, these trolleys offer excellent portability and space-saving storage when not in use. Available in two distinct load capacities, they provide a robust solution for moving heavy items with ease and stability.
Key Features
- Design Features
- FoldableHeavy-DutySmooth-Rolling WheelsPortable
Performance Metrics
Load Capacity Options
150 KG
Standard Model
300 KG
Heavy-Duty Model

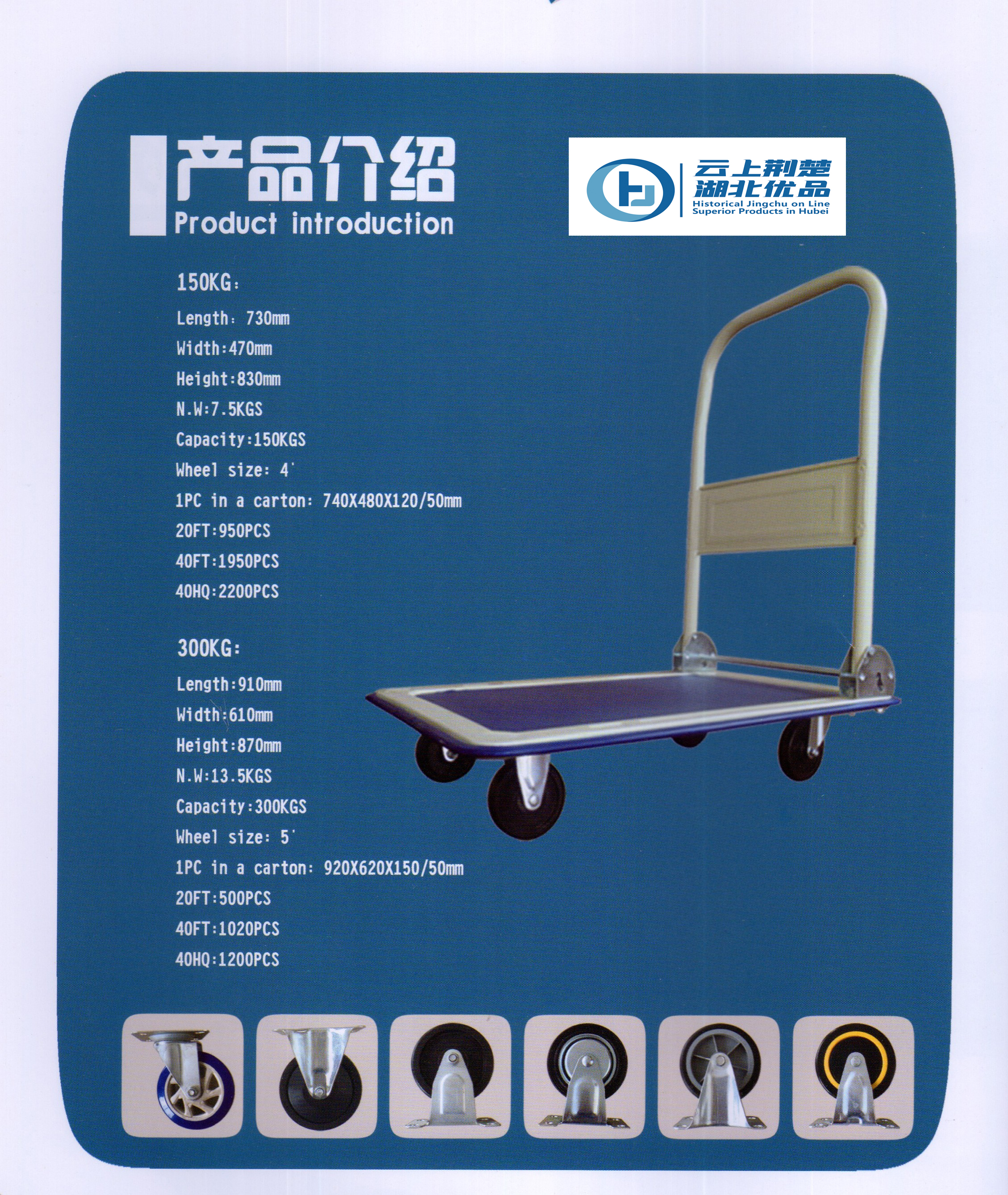

Technical Specifications
Model Dimensions
| Model Capacity | Length (mm) | Width (mm) | Height (mm) | Net Weight (kg) |
|---|---|---|---|---|
| 150KG | 730 | 470 | 830 | 7.5 |
| 300KG | 910 | 610 | 870 | 13.5 |
Wheel Size
- 4 inches (for 150KG model)
- 5 inches (for 300KG model)
Logistics & Packaging
Container Loading Capacity
| Model | 20FT Container | 40FT Container | 40HQ Container |
|---|---|---|---|
| 150KG | 950 | 1,950 | 2,200 |
| 300KG | 500 | 1,020 | 1,200 |
