Pipe Notching and Sanding Machine
This machine features a compound action swivel vice for achieving angles between 30-90 degrees. A belt sander is included on the back work table for deburring and finishing.
Technical Specifications
Overview
Professional Pipe Notching and Sanding Solution

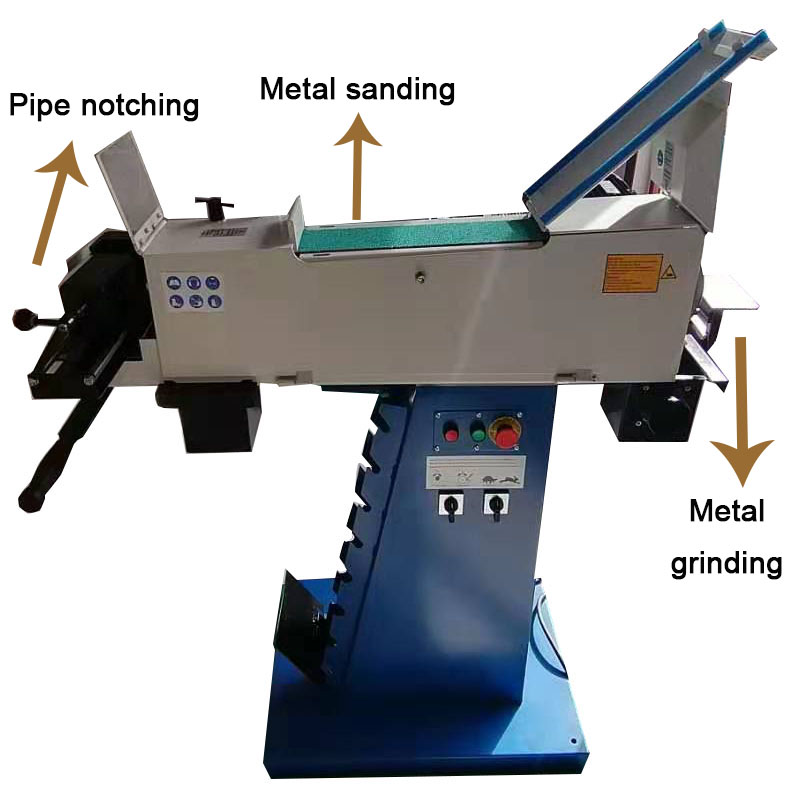

This multifunctional metalworking machine is engineered for precision pipe notching, metal sanding, and grinding. It features a compound action swivel vice capable of achieving angles between 30-90°, making it ideal for fabrication, welding preparation, and custom pipe fitting. With a robust design, integrated dust management, and versatile roller support, this machine provides a comprehensive solution for efficient surface finishing and joint preparation.
Technical Capabilities

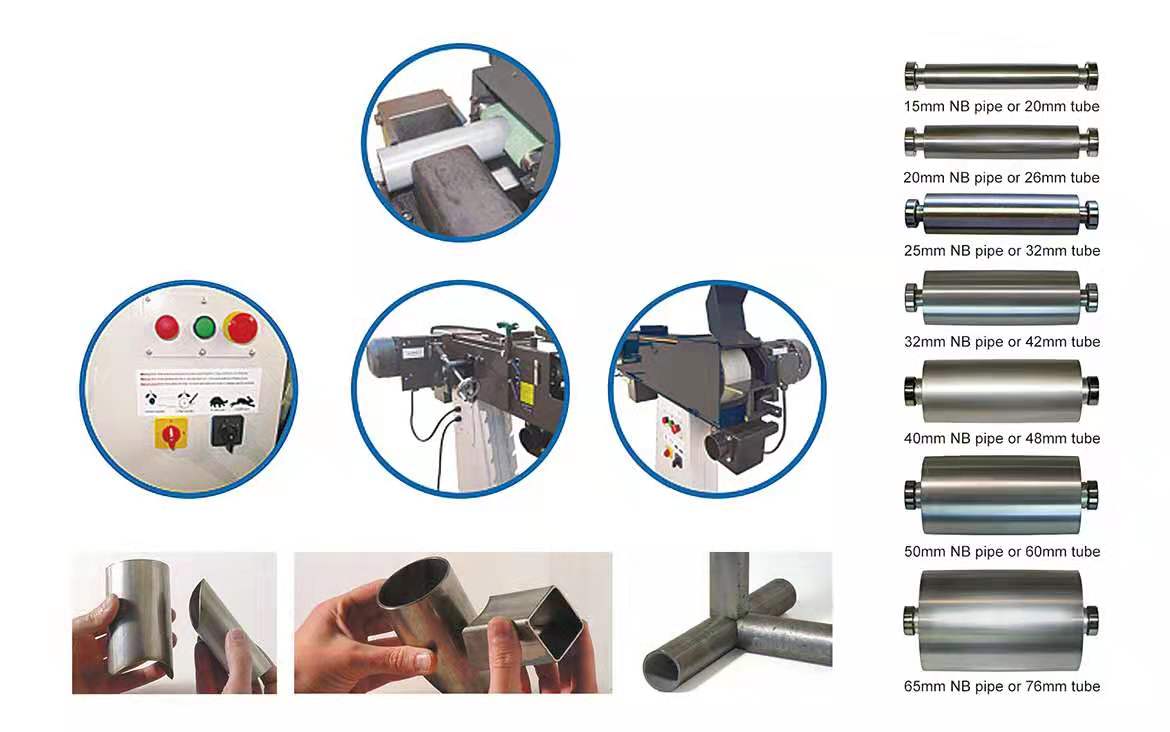

Supported Pipe/Tube Sizes
| Pipe Type | Tube Diameter |
|---|---|
| 15mm NB | 20mm |
| 20mm NB | 26mm |
| 25mm NB | 32mm |
| 32mm NB | 42mm |
| 40mm NB | 48mm |
| 50mm NB | 60mm |
| 65mm NB | 76mm |

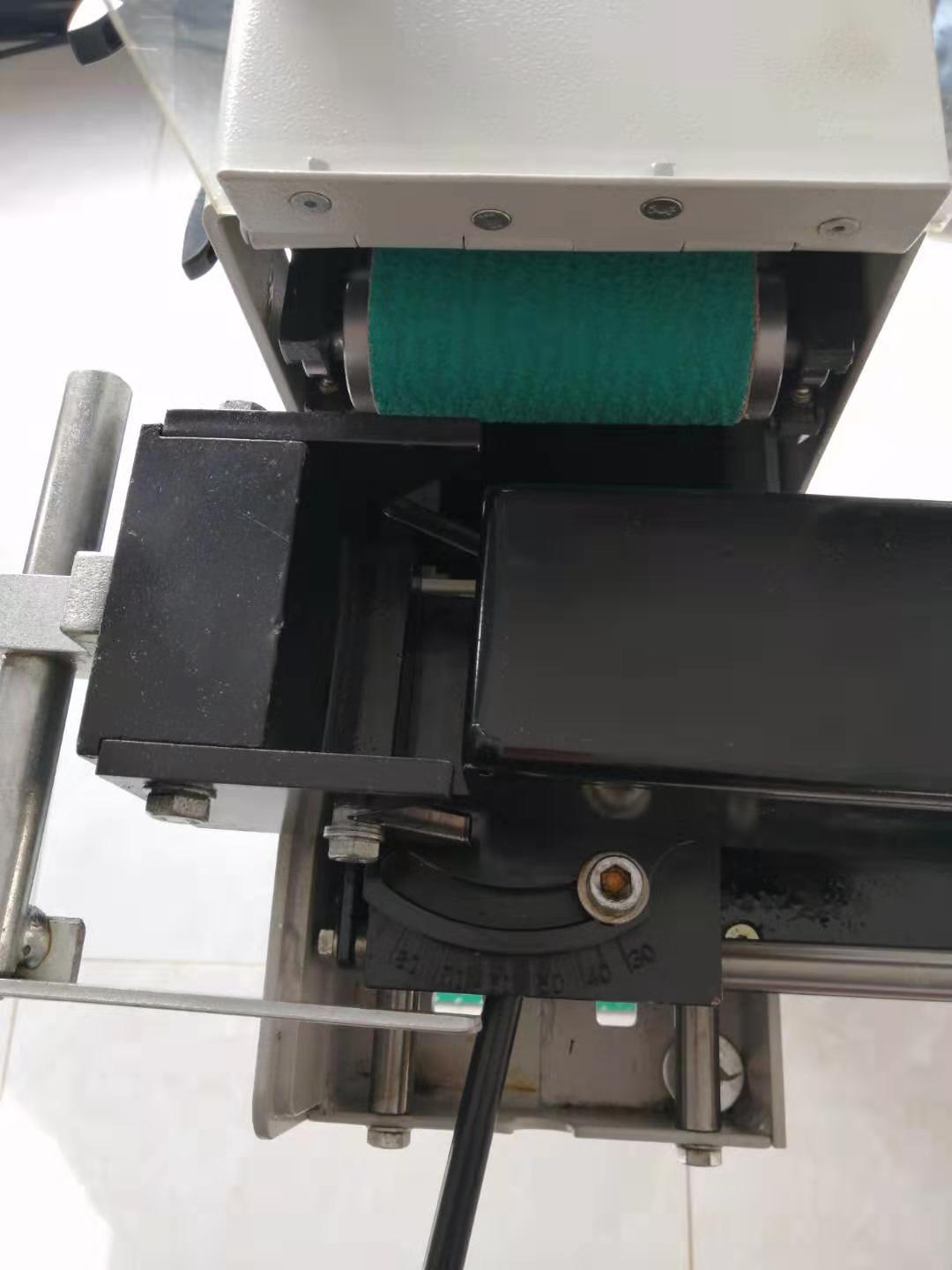

- Swivel Angle Range
- 30-90°
Features & Accessories
Included Features
- Compound action swivel vice

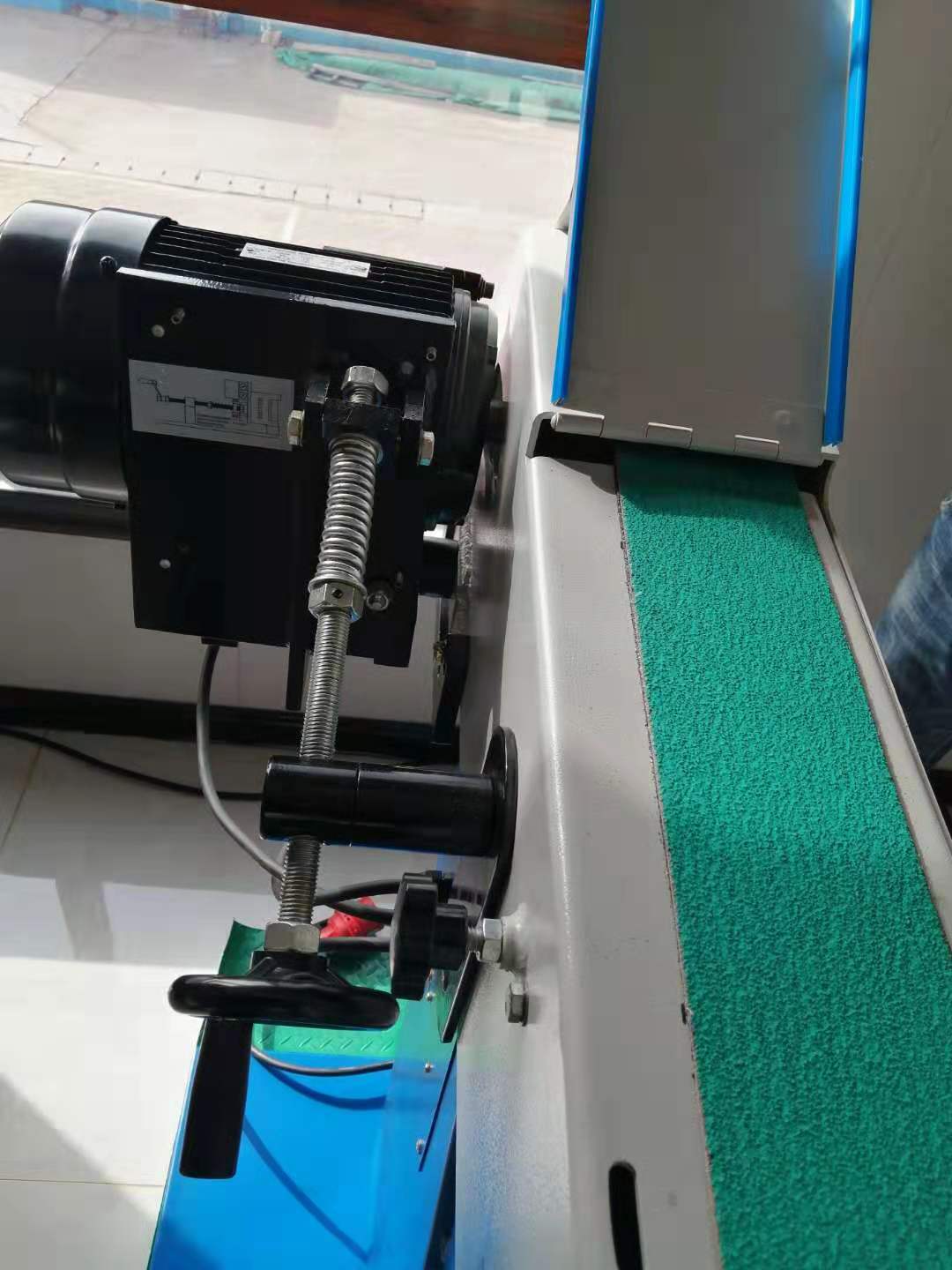

- Rear belt sander work table
- Deburring support
- Easy roller changing system
- Roller holder (capacity: 8 rollers)
- Dual dust collection boxes
- Allen key for operation and adjustment

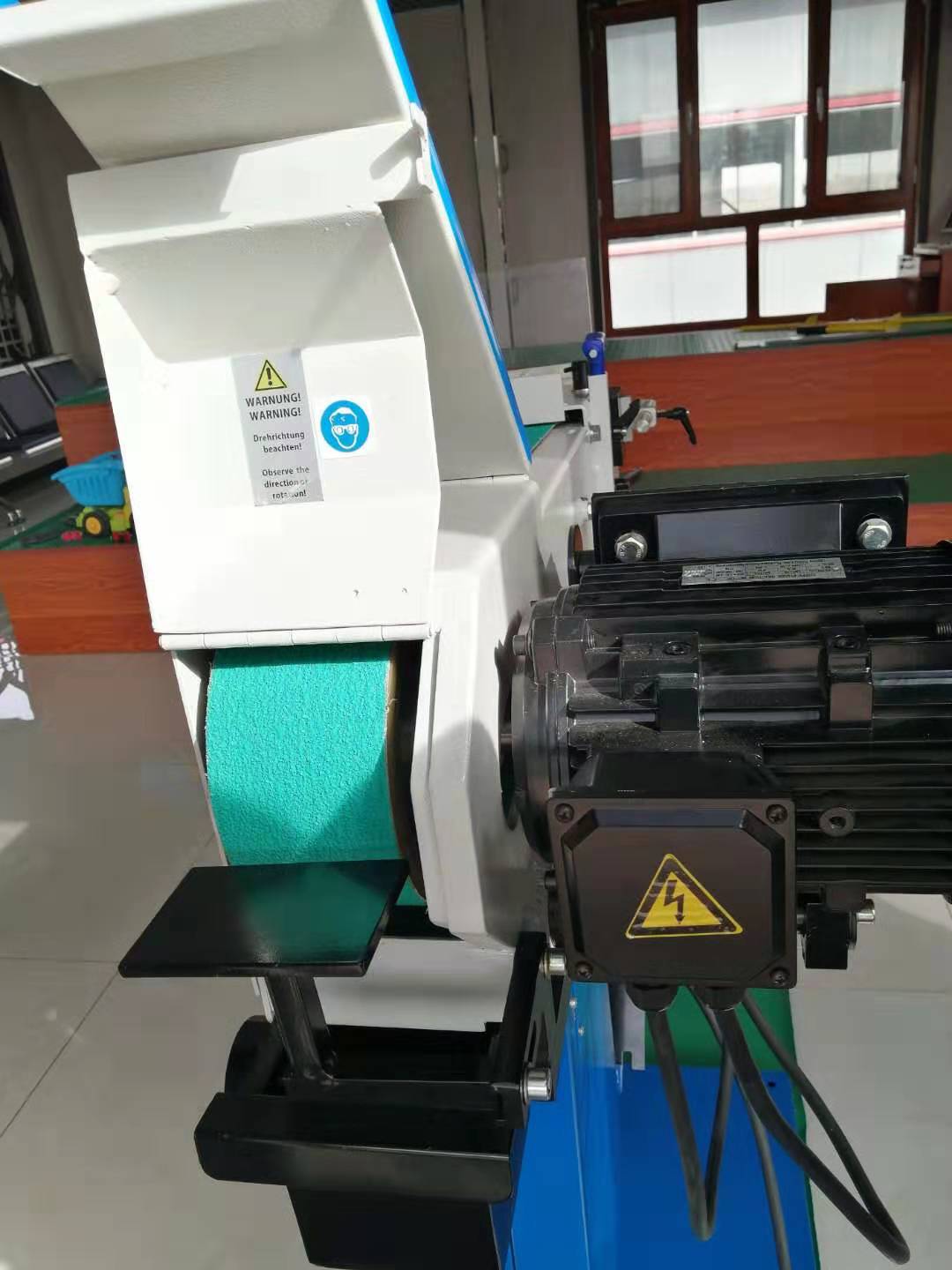

- Safety Features
- Emergency Stop ButtonProtective GuardsWarning LabelsRotation Direction Indicators
