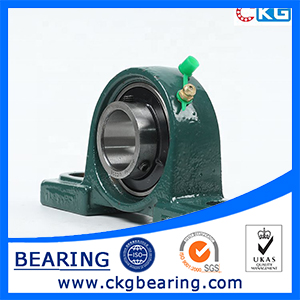

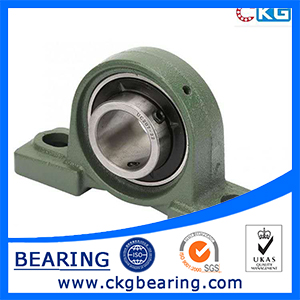

Pillow Block Bearing Unit
Pillow block bearing units support rotating shafts using compatible bearings and accessories. The housing material is typically cast iron or cast steel.
Technical Specifications
Product Overview
Industrial Bearing Solutions
These pillow block bearing units serve as essential pedestals for supporting rotating shafts in heavy-duty mechanical equipment. Engineered with high-quality materials including chrome steel for the bearings and robust cast iron for the housing, they ensure reliable performance in agricultural, metallurgical, and industrial machinery. The units feature integrated seals for contamination protection and are pre-lubricated to minimize friction, wear, and overall maintenance requirements.
Technical Specifications
Seal Types
- Normal Seal
- Triple Seal
- F Seal
- Bearing Materials
- Chrome SteelStainless SteelPlastic ResinZinc AlloyPressed Steel
- Precision Class
- ABEC-1 (P0)
- Lubrication
- GreaseOil
Performance Metrics
Performance Quality
1 ABEC
Precision Grade
4 Z-Grade
Max Noise Level
4 V-Grade
Max Vibration Level
Compliance & Standards
Steel Alloy Composition
| Element | Percentage |
|---|---|
| Carbon (C) | 0.95-1.05% |
| Silicon (Si) | 0.15-0.35% |
| Manganese (Mn) | 0.20-0.40% |
| Sulfur (S) | <= 0.020% |
| Phosphorus (P) | <= 0.027% |
| Chromium (Cr) | 1.30-1.65% |
