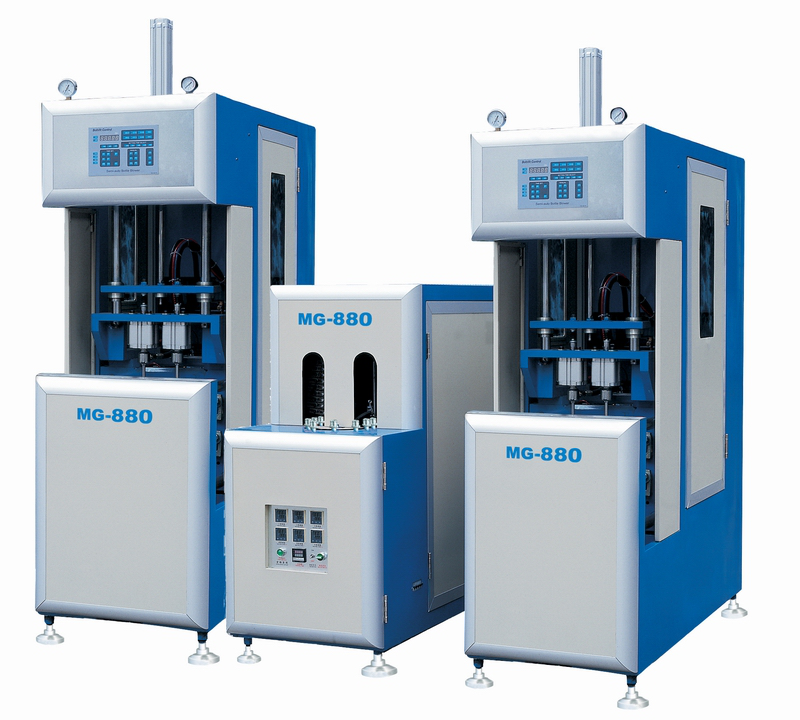

PET Bottle Blowing Machine with Mold
The PET bottle blowing machine efficiently produces PET bottles using a two-step process involving preform heating and compressed air blowing. Its integrated bottle mold ensures optimal heat transfer and precise shaping for various beverage, food, and packaging applications.
Technical Specifications
Overview
High-Efficiency PET Bottle Blowing Solution
This industrial-grade PET bottle blowing machine is engineered for reliable, high-volume production of plastic containers. Utilizing a precise two-step process of preform heating and high-pressure air blowing, it ensures consistent quality and structural integrity for a wide range of bottle shapes. The system features advanced control capabilities for temperature, pressure, and cycle timing, making it a versatile choice for beverage, food, and packaging manufacturers.
Performance Metrics
Production Capacity
800 pcs/hr
2-Cavity Output
400 pcs/hr
1-Cavity Output
Molding Compatibility
| Neck Diameter | Bottle Volume | Recommended Cavity |
|---|---|---|
| 28-40mm | < 2 Liters | 2-Cavity |
| 60-120mm | > 2 Liters | 1-Cavity |
Technical Specifications
- Clamping Force
- 100 KN
- Working Pressure
- 0.8 Mpa
- Blowing Pressure
- 2.0-4.0 Mpa
- Power Supply
- 380V220V
- Total Weight
- 1020 KG
Dimensions
Maximum Product Dimensions
- Height: 360mm
- Diameter: 180mm
- Volume: 6L
- Blowing System Dimensions
- 145 x 60 x 214 cm
- Pre-heater Dimensions
- 110 x 50 x 116 cm
