Peanut Color Sorting Machine
This peanut color sorting machine efficiently separates peanuts based on color differences. It ensures high-quality output by distinguishing between acceptable and rejected materials.
Technical Specifications
Overview
Advanced Belt-Type Peanut Color Sorter
This industrial belt-type color sorting machine is engineered for high-precision separation of peanuts and other nuts. Utilizing advanced full-color CCD sensors and high-speed image processing, it effectively identifies and removes moldy, discolored, or damaged grains. The belt-conveyor design ensures gentle handling, significantly reducing material breakage compared to traditional chute-type systems.
Key Features
- Key Features
- Full Color CCD CameraBelt-Type StructureLED Optical LightingIntelligent AI SortingReal-Time Image DisplayVibrating Feeder System

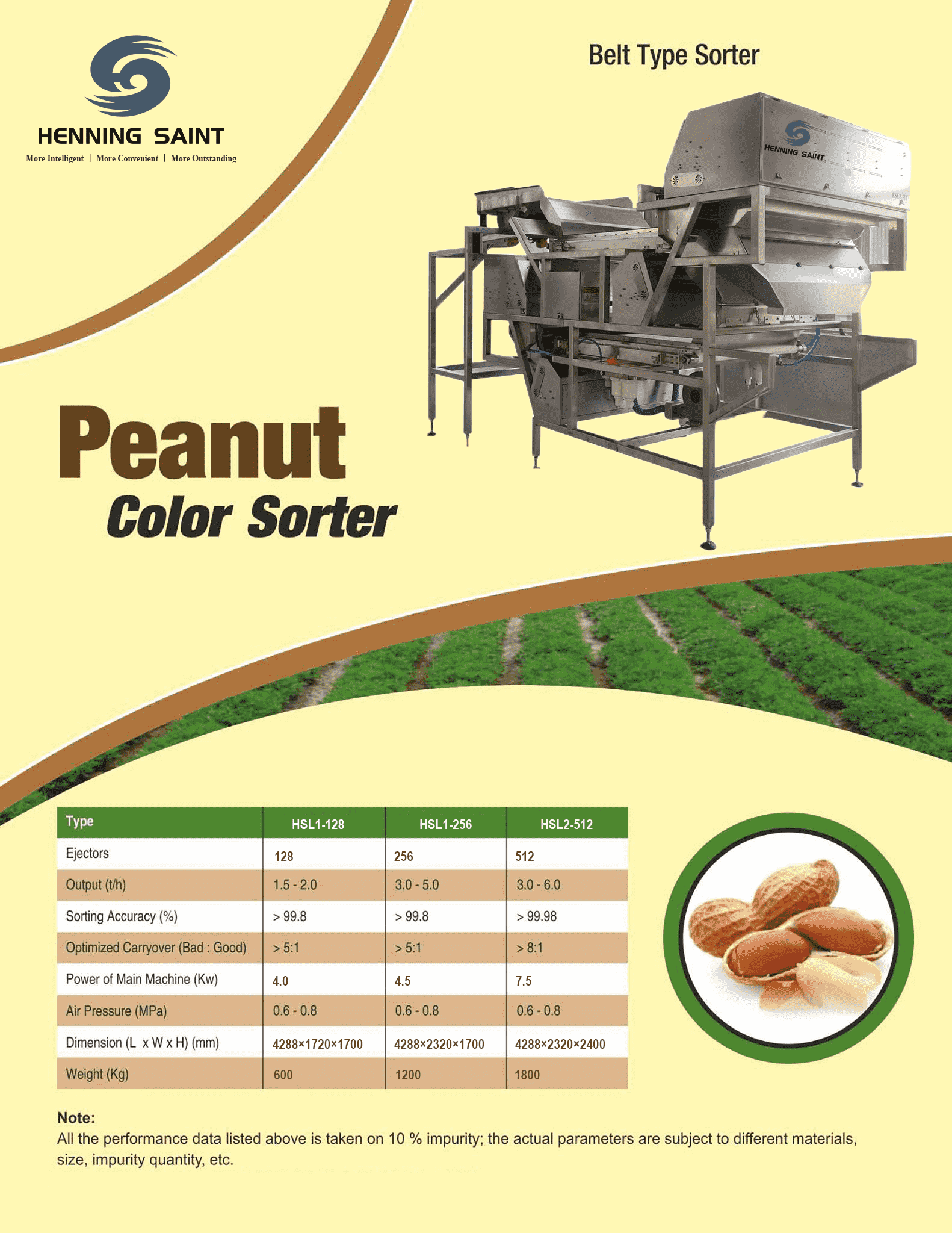

Technical Specifications
Performance Metrics
| Model | Ejectors | Output (t/h) | Accuracy (%) |
|---|---|---|---|
| HSL1-128 | 128 | 1.5-2.0 | >99.8 |
| HSL1-256 | 256 | 3.0-5.0 | >99.8 |
| HSL2-512 | 512 | 3.0-6.0 | >99.98 |
Power and Air Requirements
0.6 MPa
Min Air Pressure
0.8 MPa
Max Air Pressure
Physical Dimensions
Physical Dimensions
| Model | Dimensions (LxWxH mm) | Weight (kg) |
|---|---|---|
| HSL1-128 | 4288x1720x1700 | 600 |
| HSL1-256 | 4288x2320x1700 | 1,200 |
| HSL2-512 | 4288x2320x2400 | 1,800 |
Operational Capabilities
Sorting Capabilities
- Short sprouts removal
- Half grains separation
- Moldy grains detection
- Yellow rust grains identification
- Long vs round grain separation
- Fried peanut sorting
