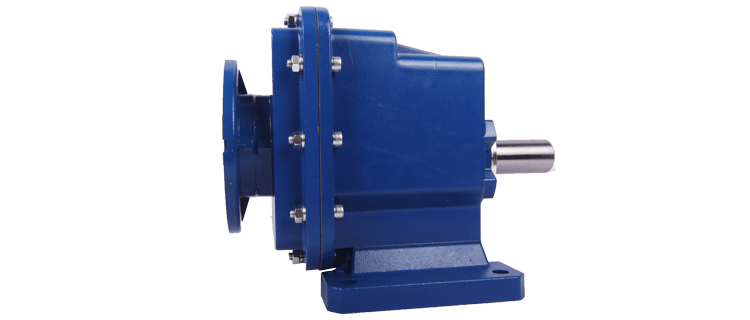

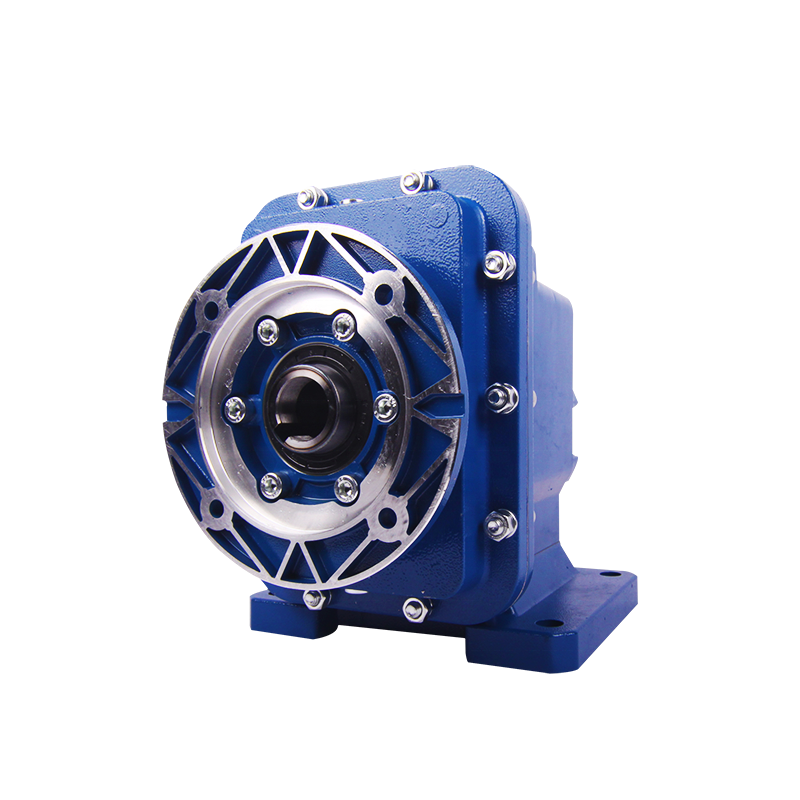

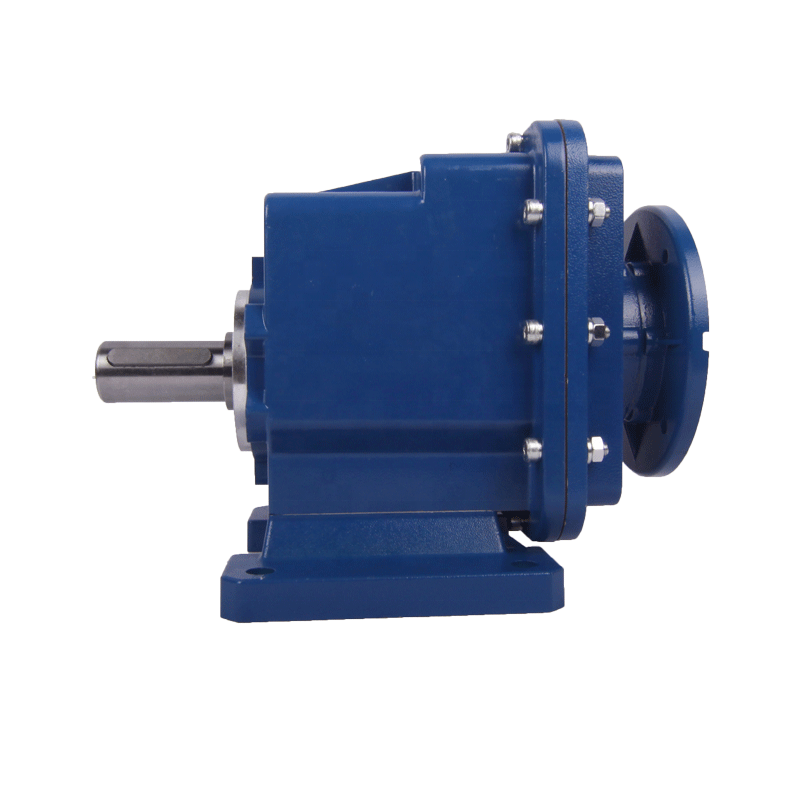

Parallel Shaft Helical Gearbox
Parallel shaft helical gearboxes are designed for efficient power transmission in a compact form. The helical gears provide smooth operation, high torque capacity and efficiency.
Technical Specifications
Product Overview
High-Performance Power Transmission
This parallel shaft helical motor gearbox is engineered for efficient power transmission and high torque capacity in demanding industrial environments. Featuring a robust construction, it ensures smooth, quiet operation with minimal vibration. It is an ideal solution for heavy-duty equipment such as conveyors, mixers, and pumps, offering reliable performance and long service life.
Technical Specifications
Mounting Positions
M1M2M3M4M5M6
Input Configuration
- Input Shaft Diameter
- Input Hole Diameter
- IEC Input Flange
- Custom Flange Options
- Series Type
- SRC
- Available Sizes
- 01020304
- Foot Code
- B01
- Output Shaft
- Standard diameter options available
- Transmission Ratio
- Variable based on gear unit configuration
Ordering Process
How to Order
| Stage | Details |
|---|---|
| Inquiry | Define application, industrial use, and requirements |
| Quote | Model selection, solution proposal, and price negotiation |
| Sample | Trial order for evaluation |
| Manufacture | Production scheduling and progress updates |
| Shipping | Final delivery and post-shipment support |
