Paper Doily Forming Machine

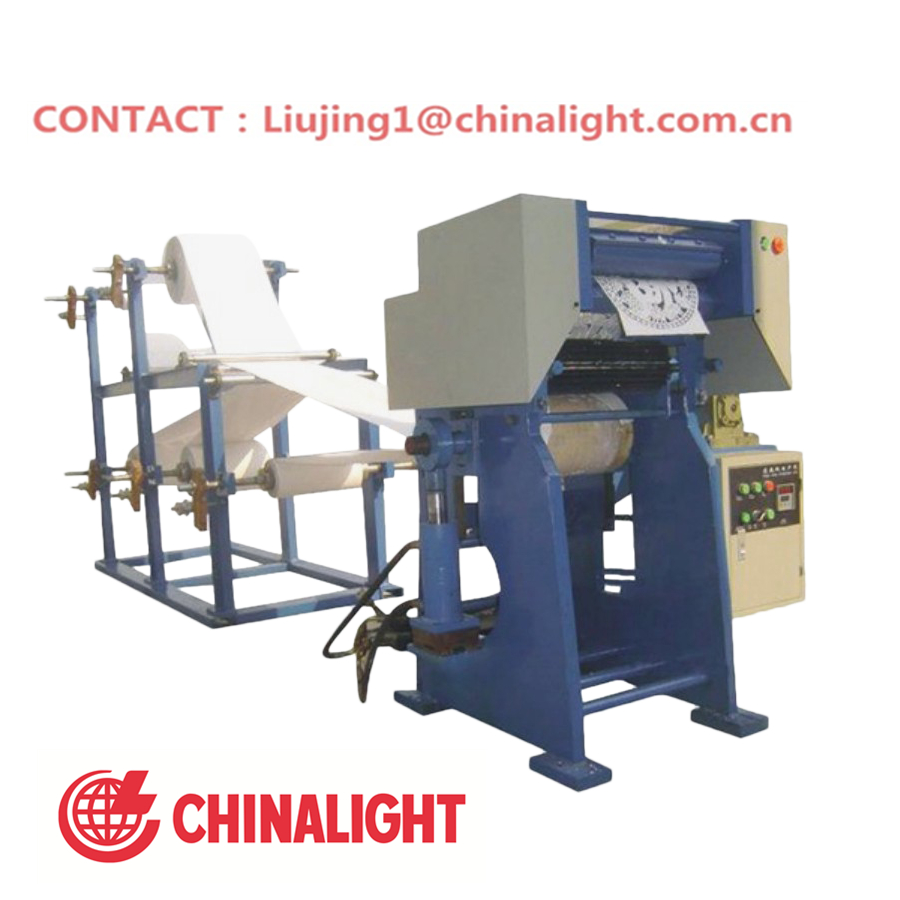

This machine is designed for the efficient production of paper doilies. It utilizes a paper roll feeding system, a cutting and forming mechanism, and a control panel for parameter adjustments.
Technical Specifications
Product Overview
High-Efficiency Paper Doily Production
This paper doily forming machine is engineered for high-volume production, capable of reaching speeds of 55,000 pieces per hour. It features an automated system that handles cutting, embossing, and trimming in a single pass. Designed for versatility, the machine supports a wide range of paper weights from 45-300g and can produce circular, square, and oval shapes with high precision.
Performance Metrics
Production Output
55,000 pcs/hr
Hourly Production
Technical Specifications
- Total Power
- 4 KW
- Weight
- 1800 kg
- Physical Dimensions
- 4500 x 1500 x 1900 mm
Operational Capabilities
- Supported Paper Weight
- 45-300g
- Compatible Shapes
- RoundSquareOval
- Product Size Range
- 100mm to 420mm diameter (approx 3.5 to 16.5 inches)
Key Features
Core Features
- Automatic counting and alarm system
- Pole-changing motor control for adjustable speed
- One-pass forming: cutting, embossing, and trimming
- High manufacturing precision with stable performance
- Low noise operation and energy-efficient design
