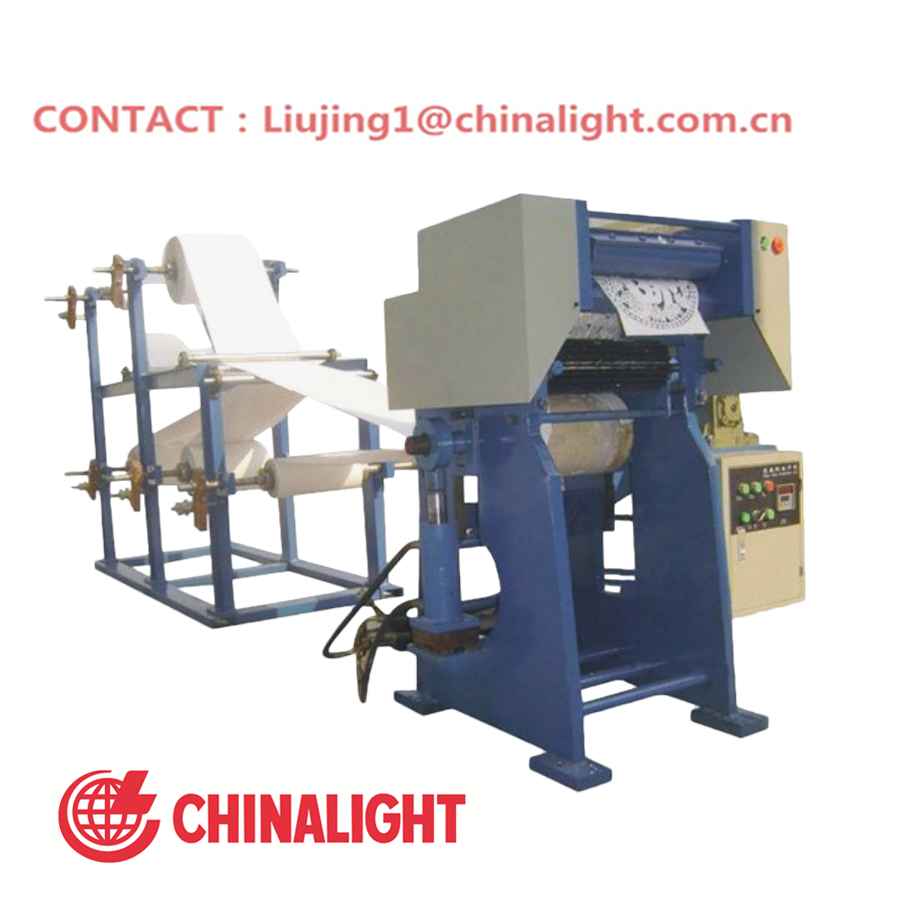

Paper Doily Forming Machine
This machine is designed for the efficient production of paper doilies. It features a robust frame, a paper roll feeding system, and a precision cutting mechanism.
Technical Specifications
Product Overview
High-Efficiency Paper Doily Production
This paper doily forming machine is engineered for precision and stability, offering a high-volume output of 55,000 pieces per hour. It features an integrated system that handles cutting, embossing, and trimming in a single cycle. With its pole-changing motor control and automatic counting alarm, the machine ensures ease of operation and consistent production quality across various shapes and sizes.
Performance Metrics
Featured Productivity Metrics
55,000 pcs/h
Production Output
4 kW
Max Power Consumption
1,800 kg
Machine Weight
Technical Specifications
Operating Dimensions
| Parameter | Value |
|---|---|
| Round Diameter Range | 100mm - 420mm |
| Max Rectangular Size | 400x500mm |
| Machine Dimensions | 4500x1500x1900mm |
- Material Compatibility
- 45-300g paper
Key Features
Supported Shapes
- Round
- Square
- Oval
