Technical Specifications
Overview

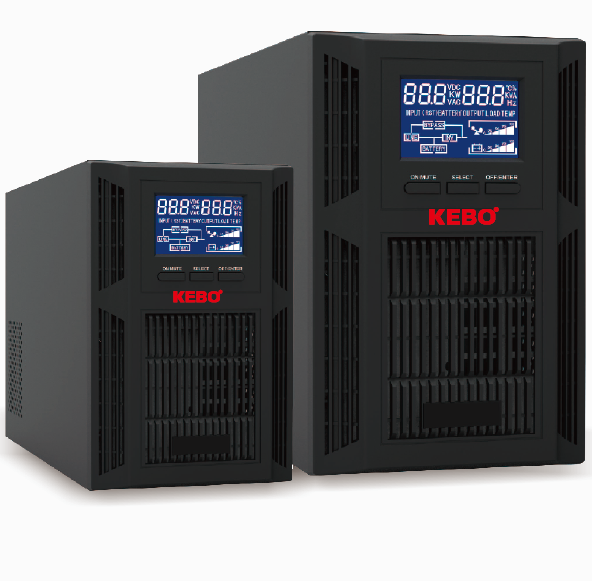

High-Performance Online UPS
This high-frequency online Uninterruptible Power Supply (UPS) utilizes true double-conversion technology to deliver clean, stable power to sensitive electronic equipment. Designed for reliability, it provides pure sine wave output and maintains a high power factor for efficient operation. With multiple communication interfaces and robust protection features, this unit is an ideal solution for safeguarding critical systems against power disturbances.
Performance Metrics
Performance Highlights
0.8
Power Factor
0 ms
Transfer Time
3 :1
Crest Ratio

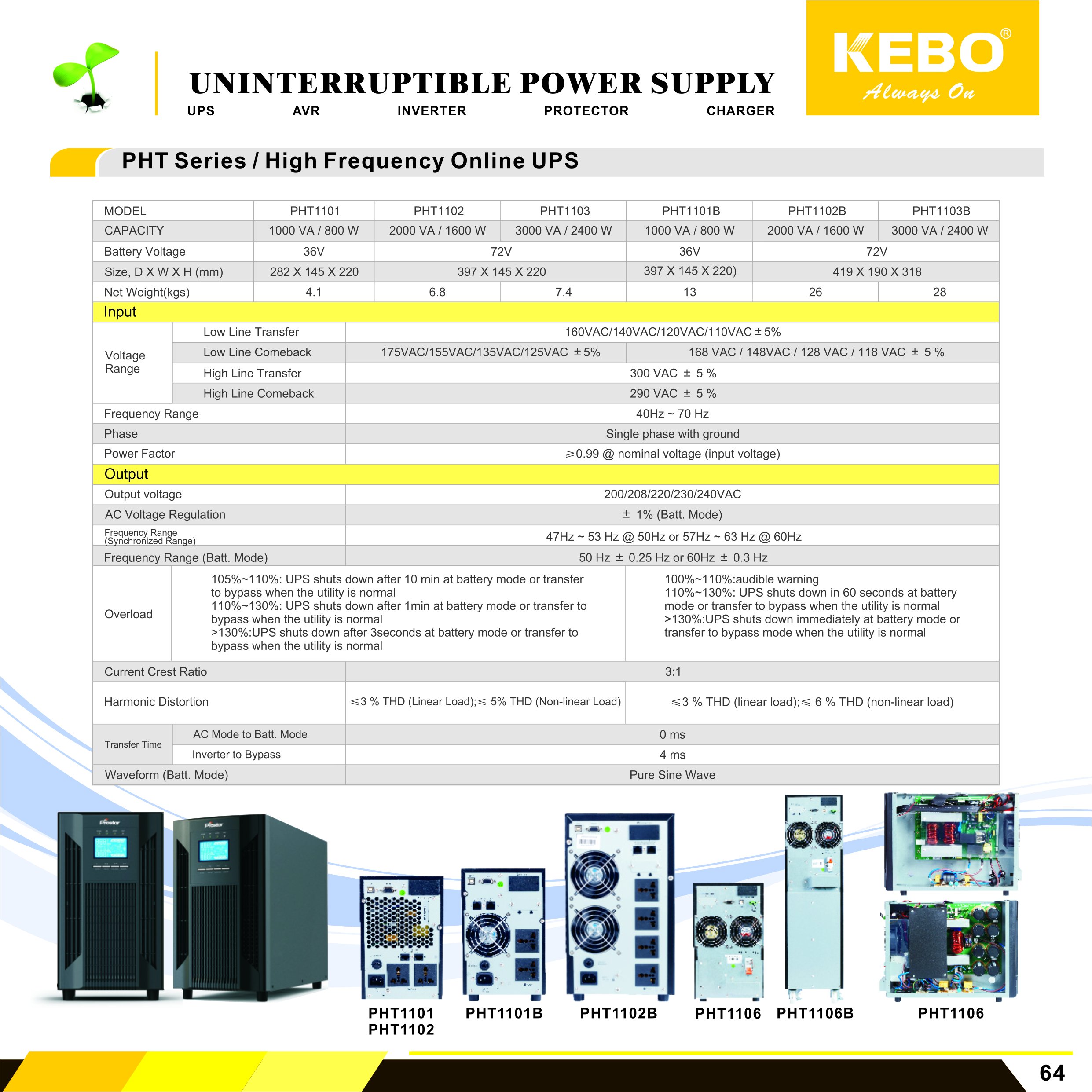

Technical Specifications
Input Parameters
- Frequency Range: 40Hz - 70Hz
- Input Power Factor: ≥0.99 @ nominal voltage
- High Line Transfer: 300 VAC ± 5%
- Low Line Transfer: 160/140/120/110 VAC ± 5%
Output Parameters
- Voltage: 200/208/220/230/240 VAC
- Waveform: Pure Sine Wave
- Harmonic Distortion: <3% THD (Linear Load)
- AC Voltage Regulation: ± 1%
Connectivity
- Communication Interfaces
- USBRS232RJ45SNMP
Model Comparison
Model Specifications
| Model | Capacity | Battery Voltage | Weight |
|---|---|---|---|
| PHT1101 | 1000 VA / 800 W | 36V | 4.1 |
| PHT1102 | 2000 VA / 1600 W | 72V | 6.8 |
| PHT1103 | 3000 VA / 2400 W | 72V | 7.4 |
