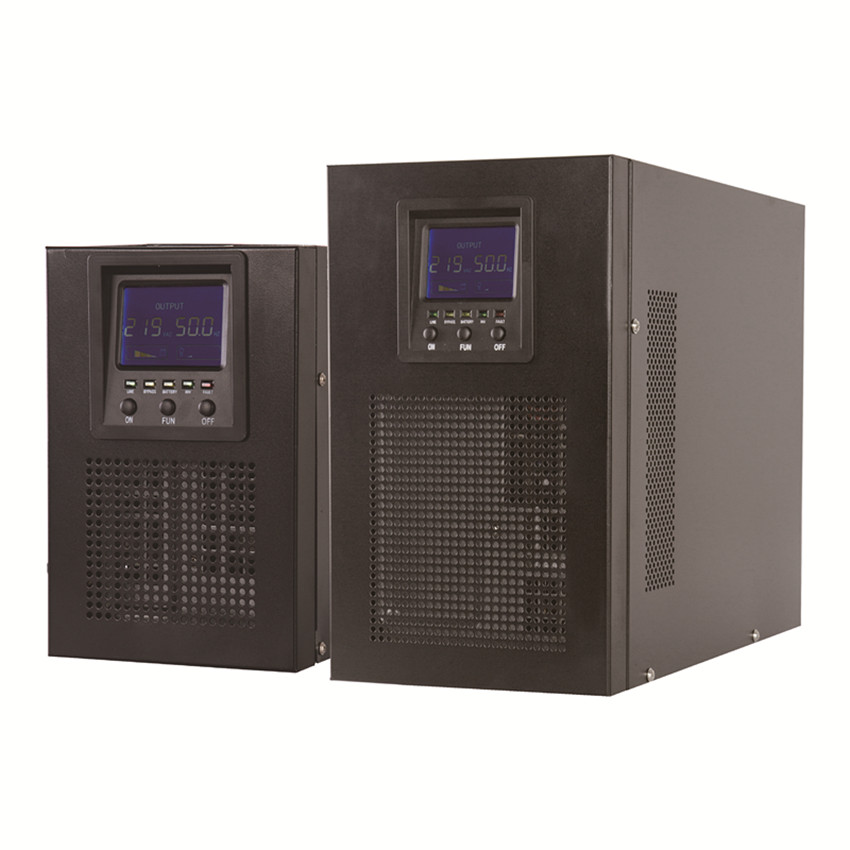

Online Double Conversion Uninterruptible Power Supply
This uninterruptible power supply uses online double conversion technology. It has a power factor of 0.9.
Technical Specifications
Overview
Professional Double Conversion Online UPS
This online double conversion uninterruptible power supply offers superior protection for critical infrastructure, data centers, and server environments. Utilizing advanced microprocessor control and EMI/RFI filtering, the system ensures clean, stable power delivery while protecting against surges and voltage fluctuations. The unit supports cold start capabilities and flexible monitoring via RS232 or optional SNMP cards, making it an essential component for maintaining business continuity.
Performance Metrics
Performance Ratings
1 KVA
Capacity 1
800 W
Power 1
3 KVA
Capacity 2
2,400 W
Power 2
Technical Specifications
Input & Output Details
| Parameter | Voltage | Frequency | Max Current |
|---|---|---|---|
| Input (1KVA Model) | 220Vac | 50Hz | 7A |
| Output (1KVA Model) | 220Vac | 50Hz | 4.5A |
| Input (3KVA Model) | 220Vac | 50Hz | 16A |
| Output (3KVA Model) | 220Vac | 50Hz | 13.6A |
Features
Safety Protections
- Short circuit protection
- Overload protection
- Lightning and surge protection
- Network/fax/modem surge protection
- Input L and N reversed alarm
- Advanced Functionalities
- Double Conversion OnlineMicroprocessor ControlCold StartEMI/RFI FilterBattery Management

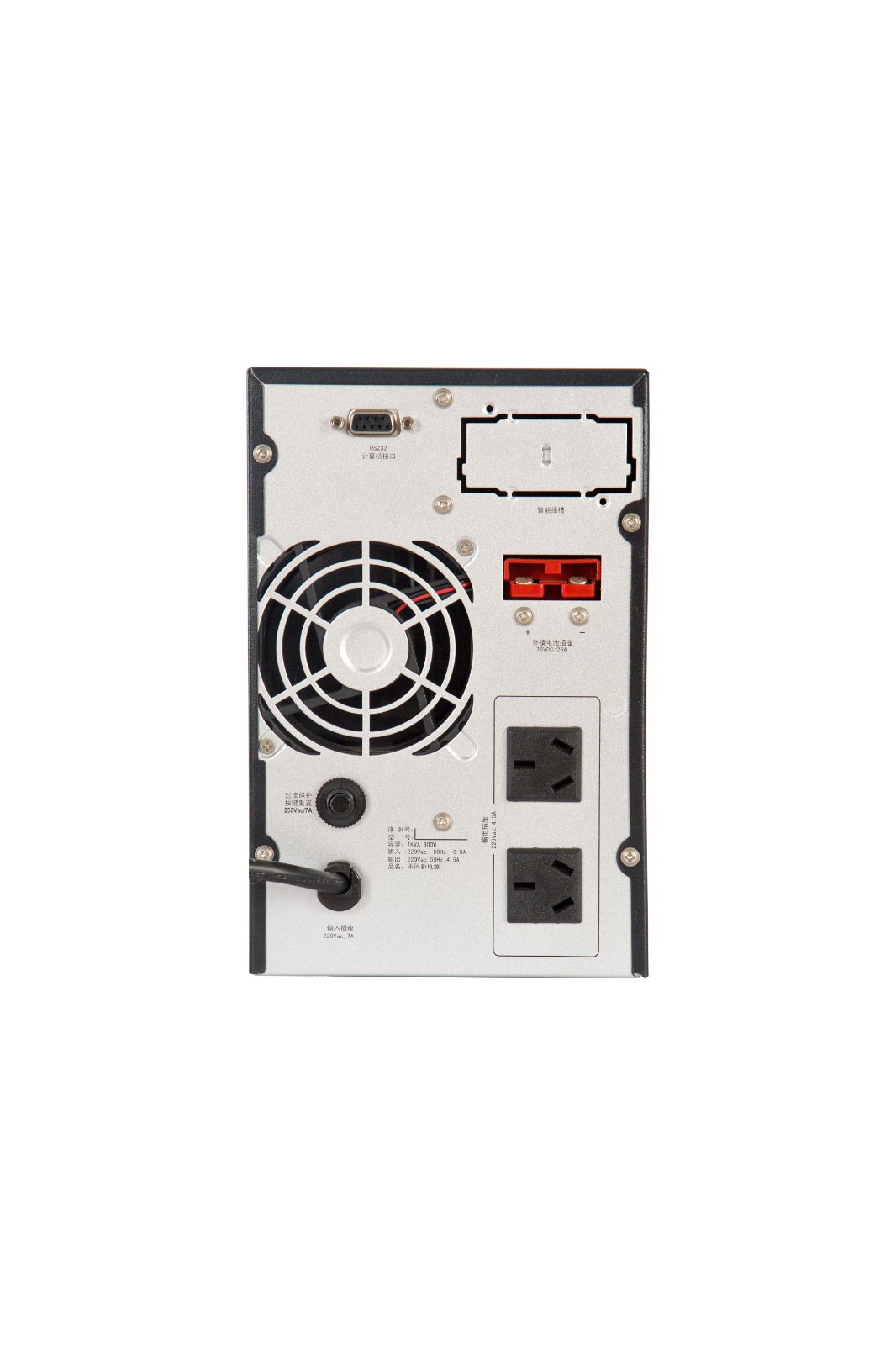

Connectivity
Monitoring & Connectivity
RS232 CommunicationSNMP Card SlotExternal Battery PortLCD Display
