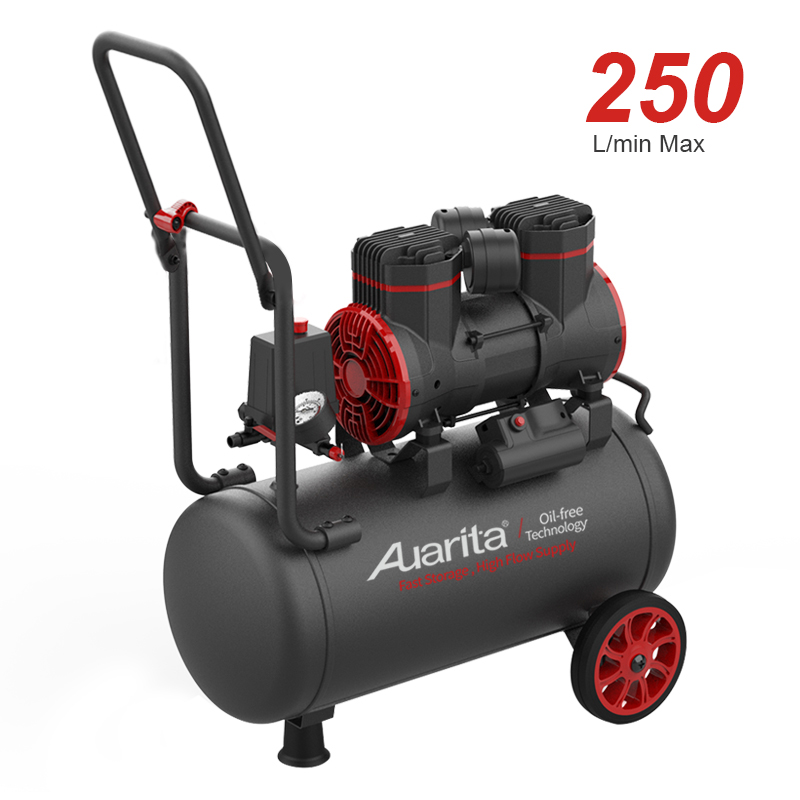

Oil-Free Air Compressor
This oil-free air compressor provides fast storage and a high flow supply. It is designed for efficient operation and requires low maintenance.
Technical Specifications
Product Overview
High-Efficiency Oil-Free Air Compressor
This advanced oil-free air compressor is engineered for reliability and high performance in demanding pneumatic applications. Designed with a focus on efficient cooling and precision engineering, it delivers a high flow rate with minimal maintenance requirements. Its robust construction and safety-first design, including overload protection, ensure consistent operation for professional use.
Performance Metrics
Key Performance Indicators
1,450 W
Input Power
24 L
Tank Capacity
250 L/min
Max Air Delivery
8 bar
Max Pressure
Technical Specifications
Detailed Technical Data

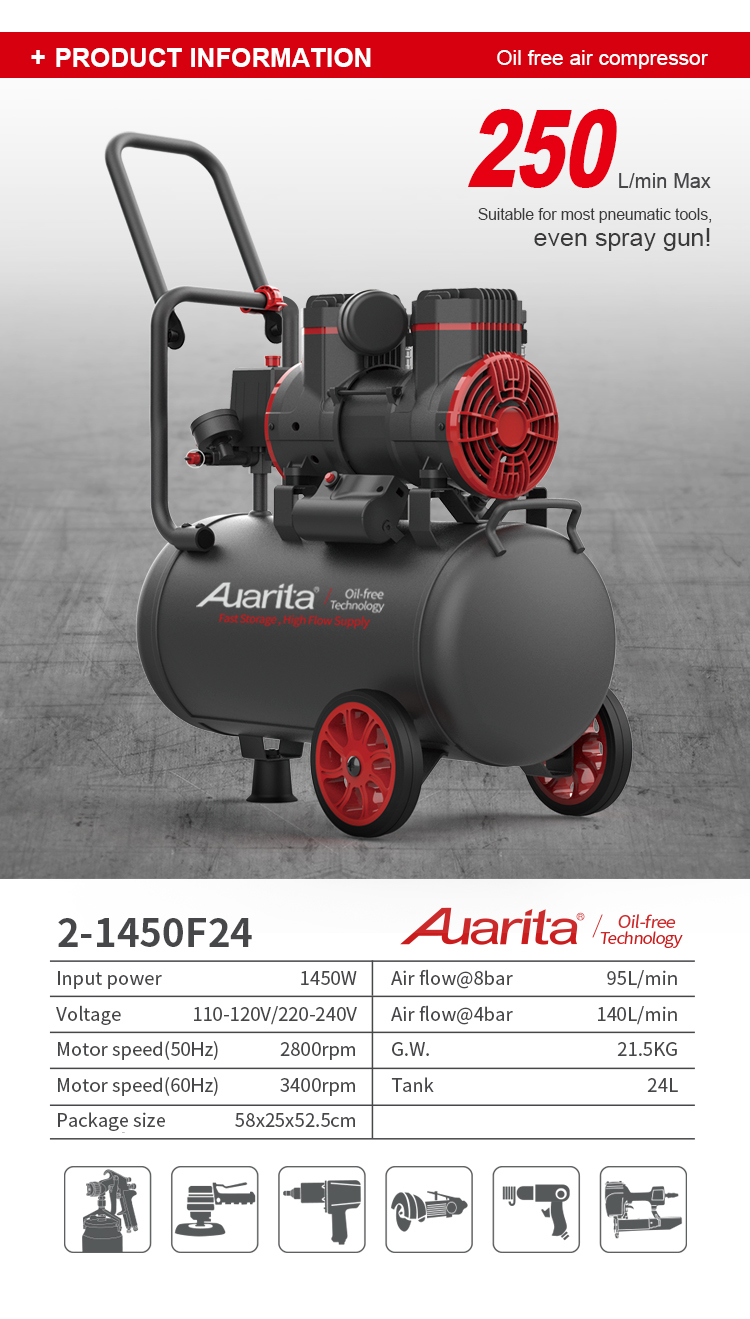

| Parameter | Value |
|---|---|
| Voltage | 110-120V / 220-240V |
| Motor Speed (50Hz) | 2800 rpm |
| Motor Speed (60Hz) | 3400 rpm |
| Air Flow @ 8bar | 95 L/min |
| Air Flow @ 4bar | 140 L/min |
| Gross Weight | 21.5 KG |
| Package Dimensions | 58 x 25 x 52.5 cm |

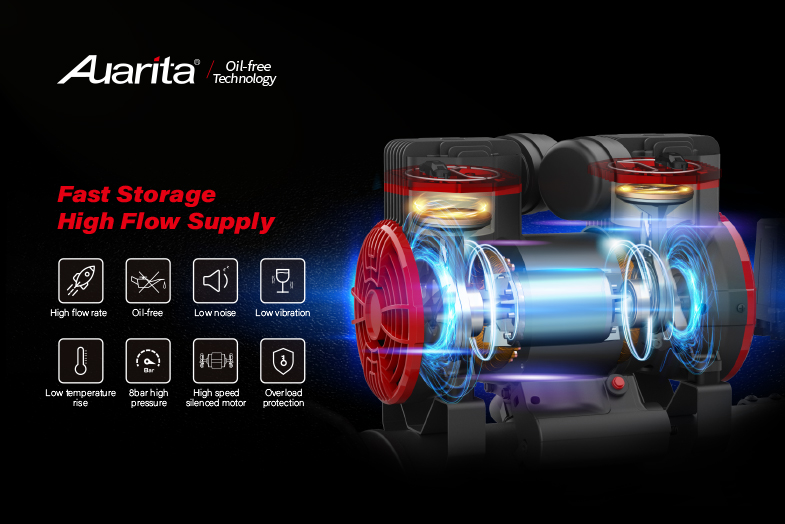

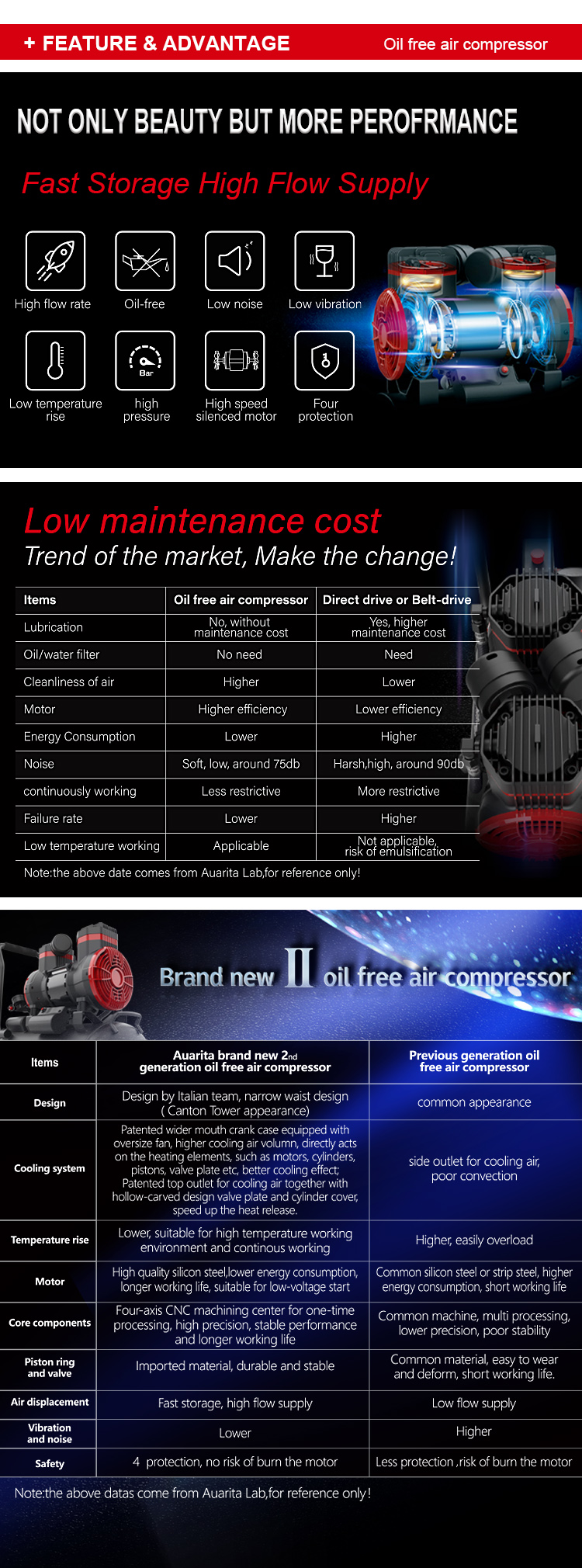

Key Features
Core Advantages
- Oil-free design for clean air delivery

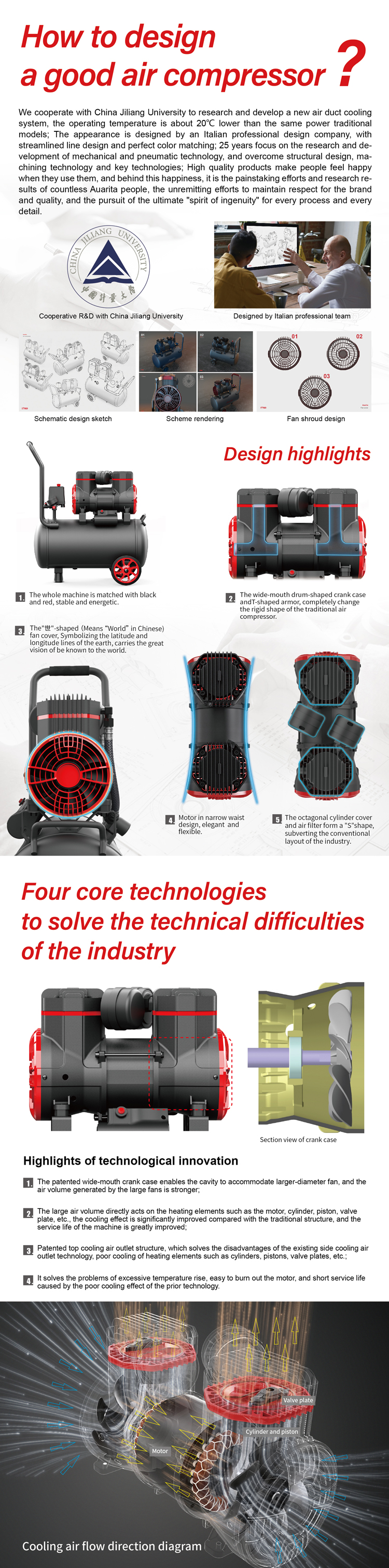

- Patented cooling system with oversized fan and top air outlet
- Four-axis CNC machined core components for precision
- 4-level safety protection system
- Low noise and low vibration operation
- Low temperature rise for continuous duty
Compliance & Standards
CE CertifiedEN ISO 12100:2010EN 60204-1:20182006/42/EC Machinery Directive2014/30/EU EMC Directive
