Technical Specifications
Overview

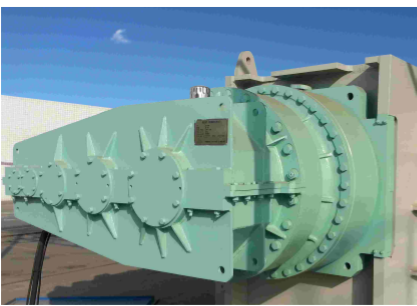

Offshore Platform Jacking and Fixation System
This heavy-duty jacking and fixation system is engineered specifically for jack-up applications within petrochemical and petroleum prospecting engineering. Designed for demanding offshore environments, the system provides reliable vertical movement and secure locking mechanisms to ensure the stability and safety of offshore platforms. Featuring robust construction and high-precision control, it is built to deliver long-term performance in critical infrastructure projects.
Jacking System Performance
Jacking System Capacity
| Metric | Capacity (kN) | Capacity (kips) |
|---|---|---|
| Option 1 | 5,338 | 1,200 |
| Option 2 | 6,939 | 1,560 |
| Option 3 | 4,448 | 1,000 |
| Option 4 | 5,782 | 1,300 |
| Option 5 | 3,558 | 800 |
| Option 6 | 4,626 | 1,040 |
| Option 7 | 2,669 | 600 |
| Option 8 | 3,469 | 780 |
Fixation System Performance
Fixation System Capacity
| Metric | Capacity (kN) | Capacity (kips) |
|---|---|---|
| Option 1 | 20,016 | 4,500 |
| Option 2 | 40,032 | 9,000 |
| Option 3 | 30,024 | 6,750 |
| Option 4 | 60,048 | 13,500 |
| Option 5 | 37,808 | 8,500 |
| Option 6 | 75,616 | 17,000 |
| Option 7 | 46,704 | 10,500 |
| Option 8 | 93,408 | 21,000 |
| Option 9 | 55,600 | 12,500 |
| Option 10 | 111,200 | 25,000 |
Key Features
- Core System Features
- Heavy-duty constructionMulti-point supportHigh-precision controlOffshore-ratedMaintenance access points
