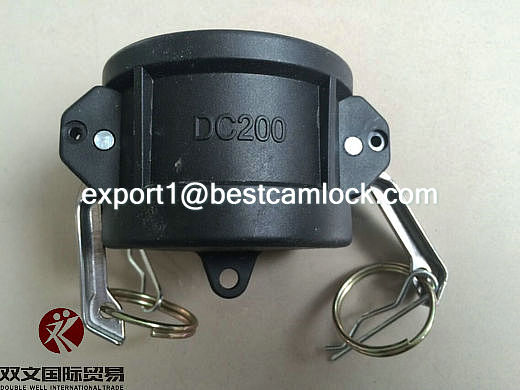

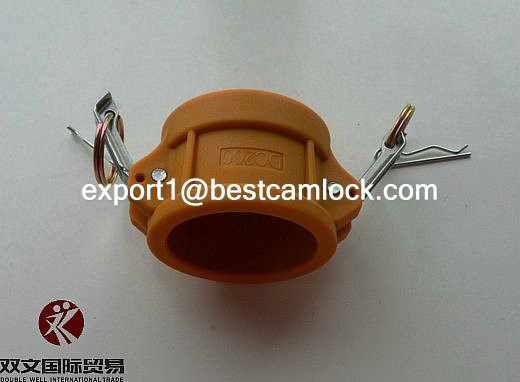

Nylon Camlock Quick Connect Coupling
Nylon camlock couplings improve work efficiency and eliminate complex thread or flange operations. These quick-release couplings are suitable for garden hoses, suction hoses, and other low-pressure hoses connected to pumps, tanks, or equipment.
Technical Specifications
Product Overview
High-Performance Nylon Camlock Couplings
These lightweight nylon cam and groove couplings offer excellent chemical and abrasion resistance for efficient fluid transfer. Designed to eliminate complex threaded or flanged operations, they provide a secure, leak-proof connection for suction and garden hoses. Ideal for diverse media including water, oil, gas, and chemicals, these fittings ensure reliability in both industrial and agricultural environments.
Technical Specifications
Working Pressure Ratings
100 psi
1" to 2 1/2"
50 psi
3" to 4"
Supported Thread Standards
- ISO228 (BSP)
- ISO7 (BSPT)
- ANSI B1.20 (NPT)
- Available Sizes
- 1/2"3/4"1"1 1/4"1 1/2"2"2 1/2"3"4"
- Operating Temperature Range
- -30° to 200°F
Construction & Materials
Component Materials
| Component | Material |
|---|---|
| Body | Nylon |
| Handle | Brass & Stainless Steel |
| Gasket | NBR, EPDM, Viton, PTFE |
| Safety Pin | Carbon Steel Plated or Stainless Steel |
Key Advantages
Extremely LightweightAbrasion ResistantChemical ResistantHigh Strength
