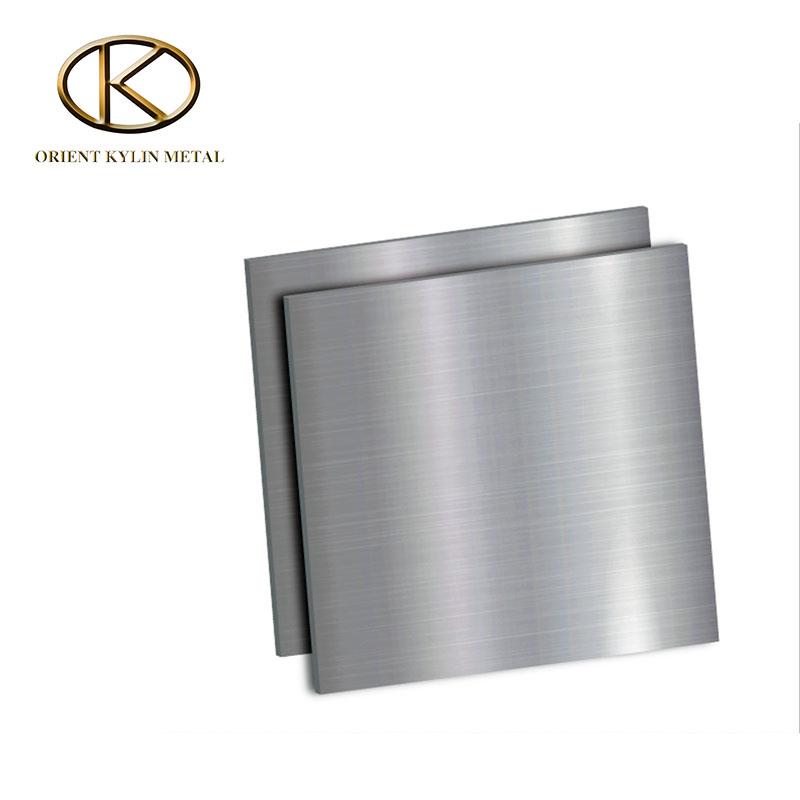

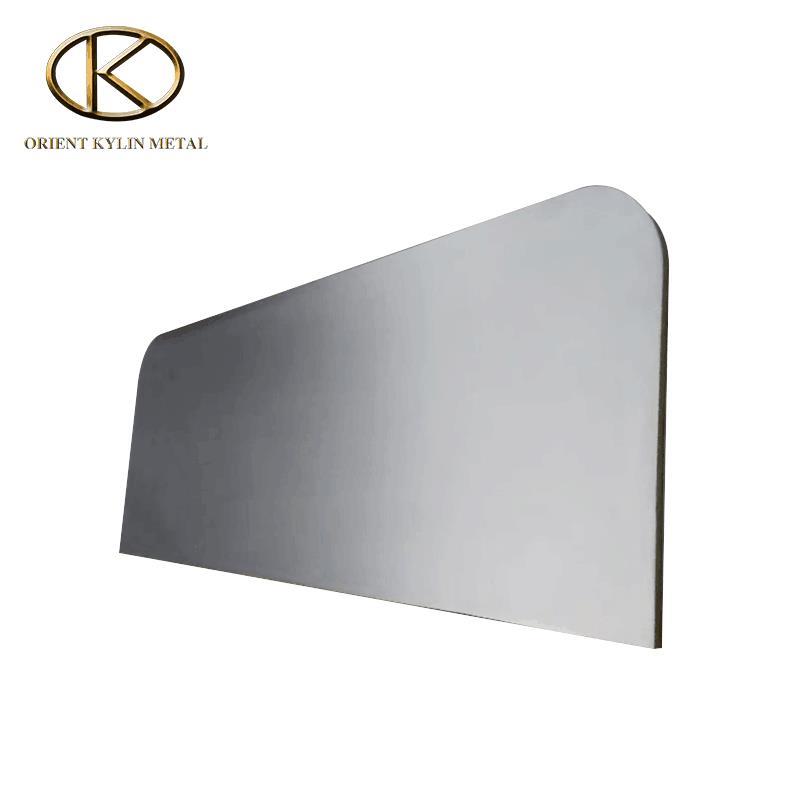

Niobium Plate and Sheet (Nb1, Nb2, ASTM Standard)
Niobium plate and sheet are manufactured to ASTM standards Nb1 and Nb2. These materials are ideal for sputtering targets and applications requiring high purity.
Technical Specifications
Product Overview
High-Purity Niobium Solutions
These Niobium plates and sheets are manufactured to ASTM B392-03 standards, offering exceptional superconductivity and superior corrosion resistance. Available in Nb1 and Nb2 grades, the material features a polished, bright surface finish and high purity levels of at least 99.95%. Designed for demanding industrial, electronic, and medical applications, these products are produced using advanced powder metallurgy techniques to ensure consistent performance.
Core Specifications
Material Purity
99.95 %
Niobium Purity
Standard Compliance
ASTM B392-03
- Density
- 8.57 g/cm3
- Available Grades
- Nb1Nb2RO4200
Technical Details
- Surface Treatment
- Polish and bright
- Technique
- Powder Metallurgy
- Sizing
- Size can be customized according to customer requirements
Chemical Composition
Maximum Impurity Levels (%)
| Grade | C | N | O | H | Ta | Fe |
|---|---|---|---|---|---|---|
| RO4200 | 0.01 | 0.01 | 0.015 | 0.002 | 0.1 | 0.005 |
| Nb-1 | 0.01 | 0.01 | 0.015 | 0.002 | 0.1 | 0.005 |
Applications
Target Industries
- Industrial Manufacturing
- Electronic Components
- Medical Devices
- Sputtering Targets
- Chemical Machinery
- Superconductivity Research
Logistics & Packaging
- Available Shipping
- TNTFedExDHLExpress
