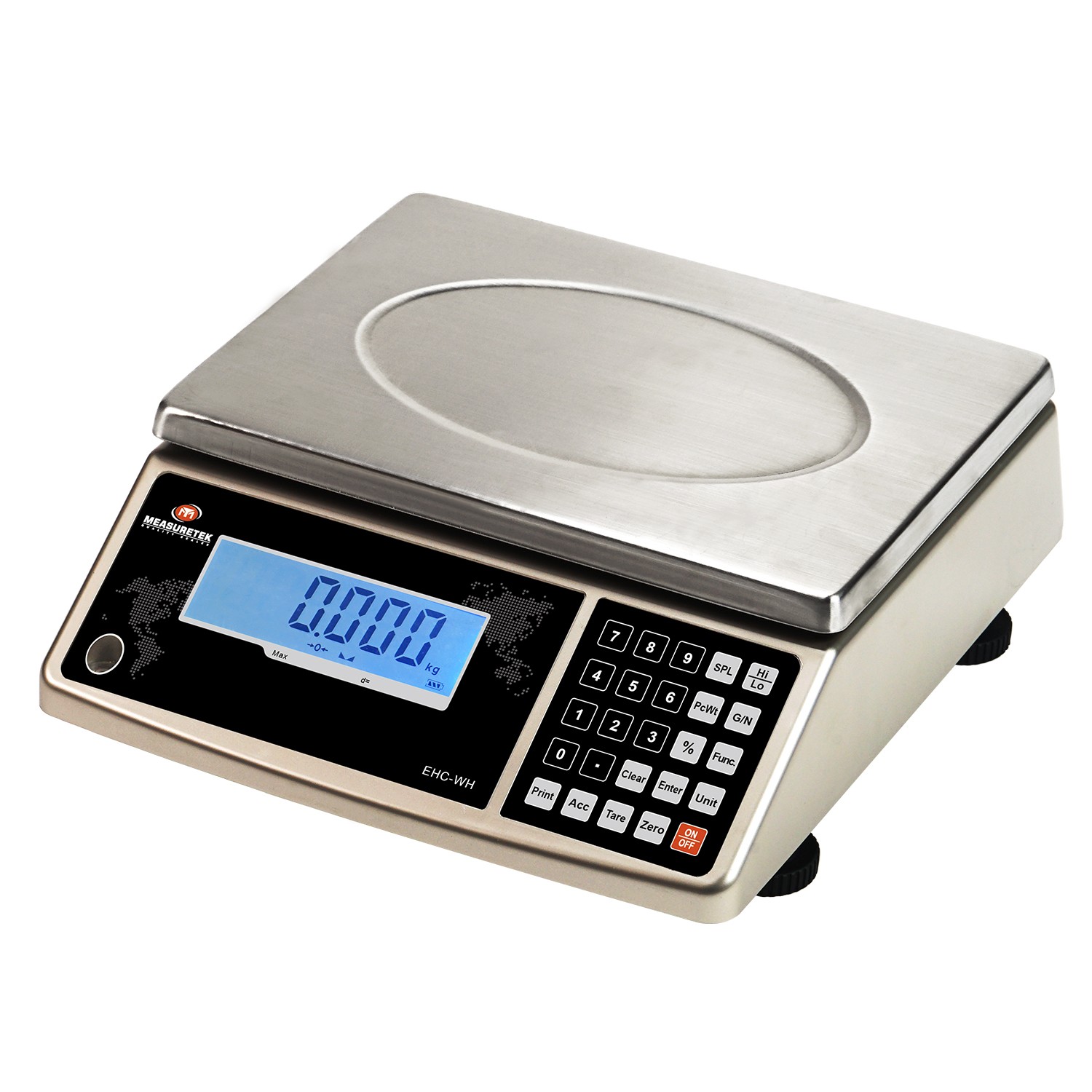

Multi-Functional Digital Weighing Scale
This multi-functional digital weighing scale is suitable for warehouse, shop, store, and other industrial or commercial weighing applications. It features a rugged ABS housing, a removable stainless steel weighing platform, and a large FSTN LCD display with backlight.
Technical Specifications
Overview
Versatile Industrial Weighing Solution
This multi-functional digital weighing scale is engineered for precision and durability in demanding environments such as warehouses, shops, and industrial facilities. It features a rugged ABS housing and a removable stainless steel platform for easy maintenance, ensuring long-term service. With high-precision load cell technology and a clear, backlit FSTN LCD display, it provides reliable measurements across multiple units of measure.
Performance
Capacity Options
| Model | Capacity |
|---|---|
| EHC-WH-3 | 3kg x 0.1g / 6lb x 0.0002lb |
| EHC-WH-6 | 6kg x 0.2g / 15lb x 0.0005lb |
| EHC-WH-15 | 15kg x 0.5g / 30lb x 0.001lb |
| EHC-WH-30 | 30kg x 1g / 60lb x 0.002lb |
- Units of Measure
- kgglboz
Construction
Build Quality
- Rugged ABS housing
- Removable stainless steel weighing platform
- Heavy duty inner die-cast aluminum loadcell bracket
- Level bubble and adjustable feet
Display & Interface
- Display
- Large FSTN LCD with backlight, 25mm high digits
- Keypad Operations
- 25-key interface including zero, tare, G/N, enter, %, clear, func., Hi/Lo, unit, acc, pcwt, spl, print, and 0-9 numeric keys
Technical Specs
Power Options
12V 500mA Adapter6V 4Ah Rechargeable Battery
Operating Temperature
-10 °C
Min Temp
40 °C
Max Temp
- Connectivity
- RS232USB
- Approvals & Standards
- CEWEEEUL/CE/BS/VI Energy Approved
