Motorized Conveyor Drum Pulley
This motorized conveyor drum pulley features an integrated motor and internal reducer. It offers advantages such as efficient heat dissipation and high power capacity, reaching up to 160kW.
Technical Specifications
Product Overview
High-Efficiency Motorized Drum Pulley
The motorized conveyor drum pulley is an advanced driving device featuring an externally mounted motor and internally housed reduction gears. This innovative design optimizes heat dissipation and provides superior reliability compared to traditional integrated designs. Built for demanding environments like mining and metallurgy, it offers a versatile solution for fixed belt conveyors and bucket elevators.
Technical Specifications
Operating Parameters
| Property | Range |
|---|---|
| Diameter (mm) | 320 - 630 |
| Power (kW) | 2.2 - 15 |
| Belt Width (mm) | 500 - 1200 |
| Tape Speed (m/s) | 0.8 - 4.0 |
| Max Weight (kg) | 235 - 840 |

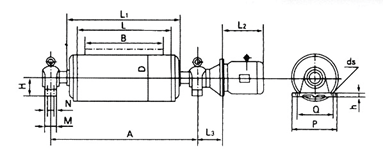

Installation Methods
- Type I: Horizontal motor in-line external electric pulley
- Type II: Vertical motor direct coupling external electric pulley
- Type III: Horizontal motor vertical external electric pulley
Key Features
- Internal Transmission Structures
- Fixed Shaft GearCycloid Needle WheelPlanetary Gear
- Available Options
- Explosion-proofStandard Non-explosion-proofBackstopRubber Coating
Industry Applications
- Suitable Sectors
- MiningPortMetallurgyElectric PowerMaterial Handling
