Technical Specifications
Overview
High-Performance Suspension Solution
This high-performance rear shock absorber is engineered for demanding MX and Enduro riding conditions. Featuring a robust 6061 aluminum gas tank and a durable 40Cr steel piston rod, it offers superior control and stability. With adjustable compression and rebound damping, riders can fine-tune their suspension response for optimal performance and comfort across various terrains.

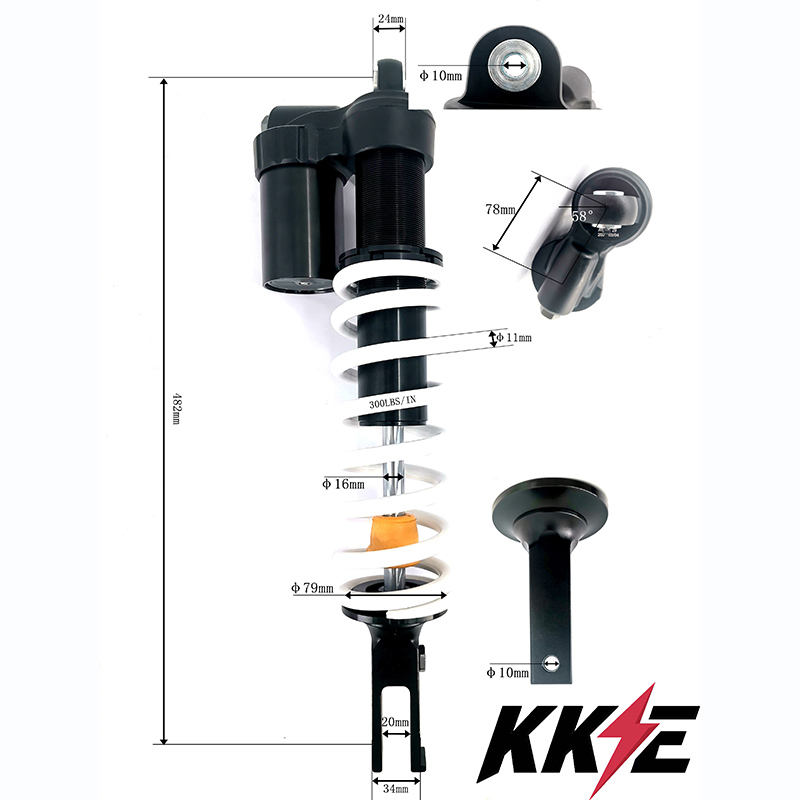

Physical Dimensions
Mounting Specifications
| Component | Dimension |
|---|---|
| Top Mount Width | 24mm |
| Top Mount Hole Diameter | 10mm |
| Bottom Mount Width | 20mm |
| Bottom Mount Hole Diameter | 10mm |
- Length (Eye-to-Eye)
- 482 mm
- Piston Rod Diameter
- 16 mm
Technical Specifications
Spring Rate
300 LBS/IN
Spring Rate
Adjustment Features
- Adjustable compression damping
- Adjustable rebound damping
- Nitrogen-charged gas tank
- Materials Used
- 6061 Aluminum40Cr SteelPolyurethane55CrSi Steel
Application
Recommended Use
MXEnduro
