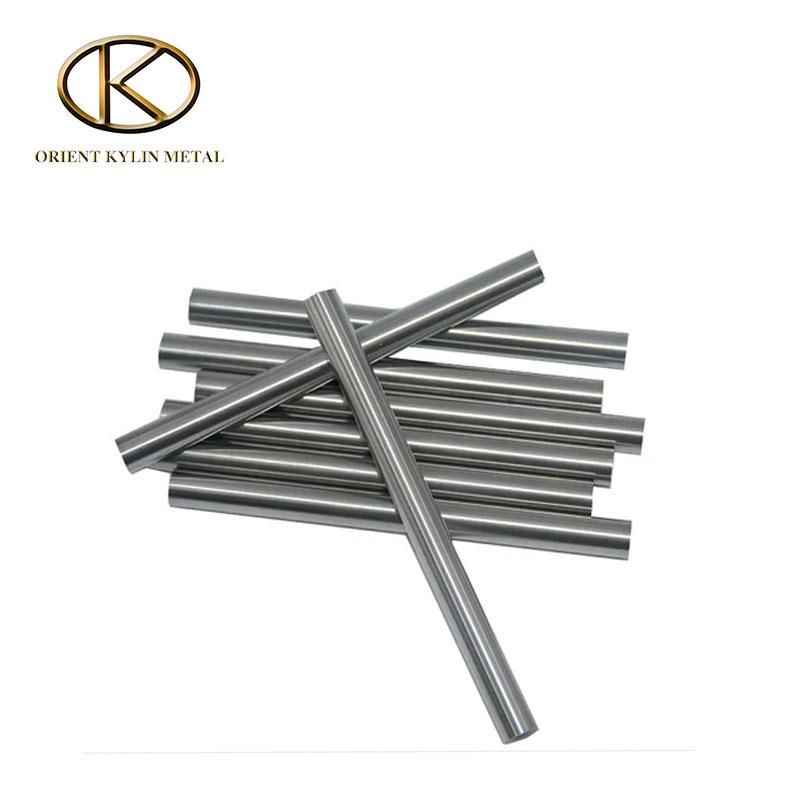

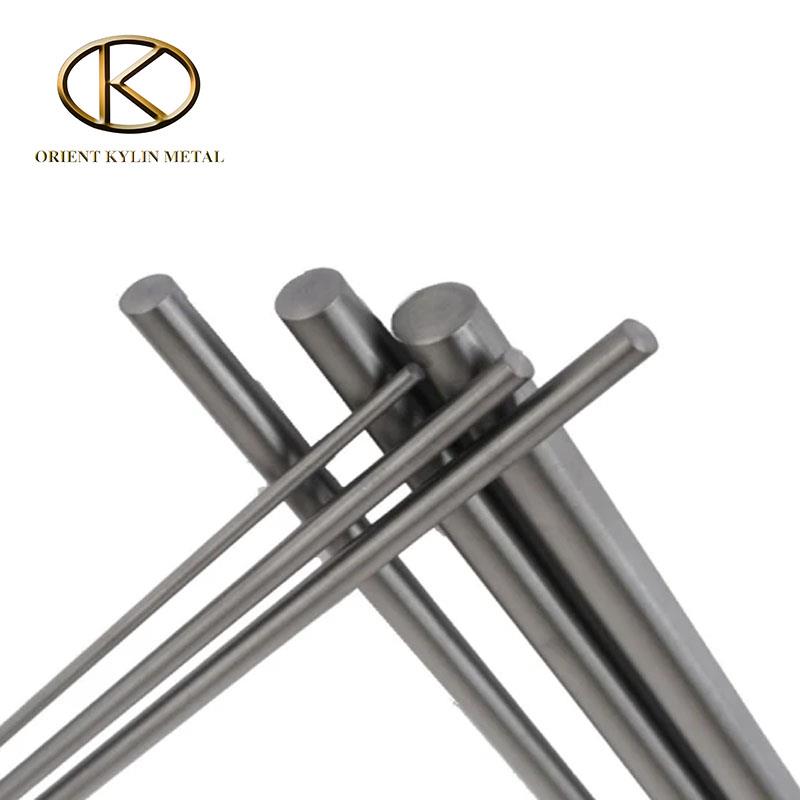

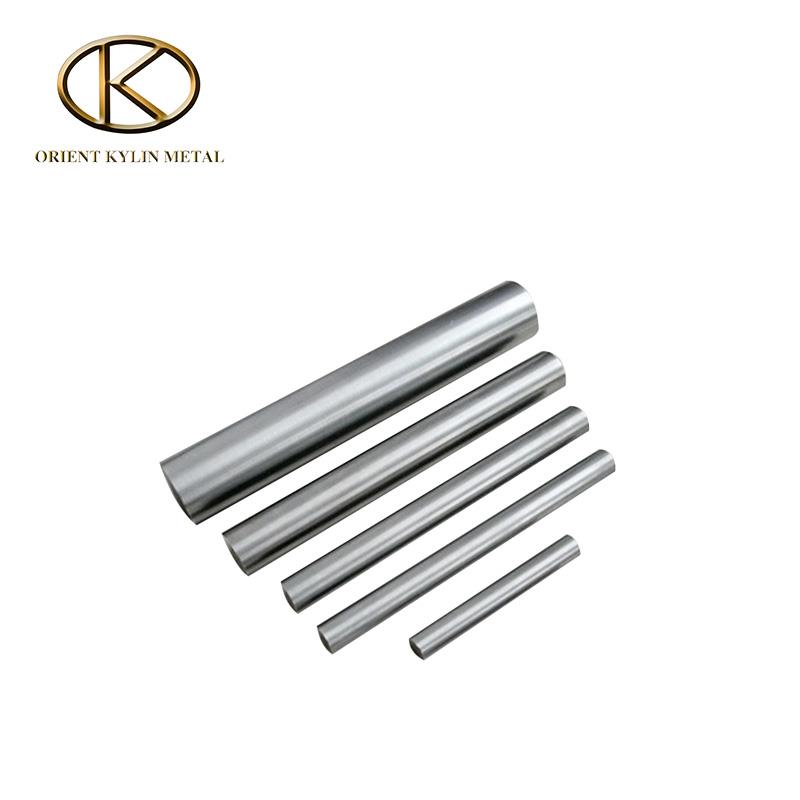

Molybdenum Rod for Electric Vacuum Applications
This 99.95% pure molybdenum rod offers a high melting point and good thermal conductivity. It is suitable for electrodes, electric light source parts, and high-temperature structural components.
Technical Specifications
Overview
High-Performance Molybdenum Rods
These high-purity (99.95%) molybdenum rods are engineered for demanding electric vacuum applications. They feature exceptional thermal conductivity, high-temperature stability, and superior corrosion resistance. Manufactured via powder metallurgy, these rods are ideal for electrodes, lighting components, and high-temperature structural parts.
Material Properties
- Material Grades
- Mo1Mo2
- Purity
- >= 99.95%
- Density
- 10.2 g/cm3
- Technique
- Powder Metallurgy
Manufacturing & Standards
Surface Finish
BlackGroundPolished
Applications
- Electrodes
- Electric light source parts
- High temperature structural parts
- Standard
- GB4188-84
Dimensions
Diameter Specifications
| Type | Diameter Range (mm) |
|---|---|
| Swaging Rod | 2-15 |
| Straightened Rods (drawn) | 0.8-3.2 |
| Ground or Machined | 2-200 |
Mechanical Properties
Mechanical Performance (Grade 360/361)
| Thickness (mm) | Tensile Strength (≥MPa) | Yield Strength (≥MPa) | Elongation (≥%) |
|---|---|---|---|
| 0.51~3.18 | 585 | 450 | 15 |
| 3.18~10.32 | 515 | 380 | 15 |
| 10.32~22.2 | 620 | 515 | 18 |
| 22.2~28.6 | 585 | 480 | 15 |
| 28.6~47.6 | 515 | 450 | 10 |
