Technical Specifications
Overview

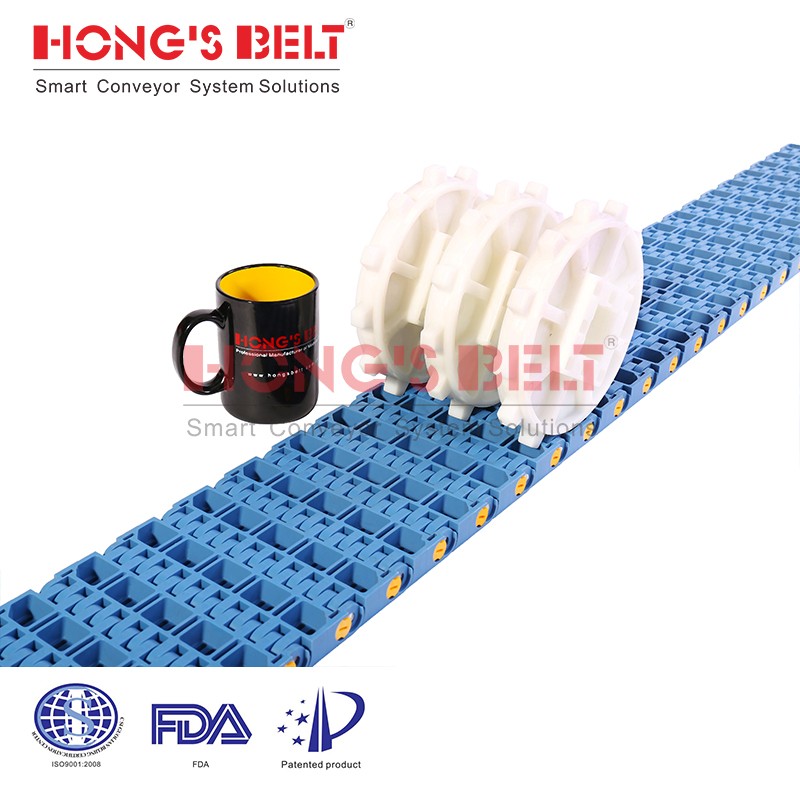

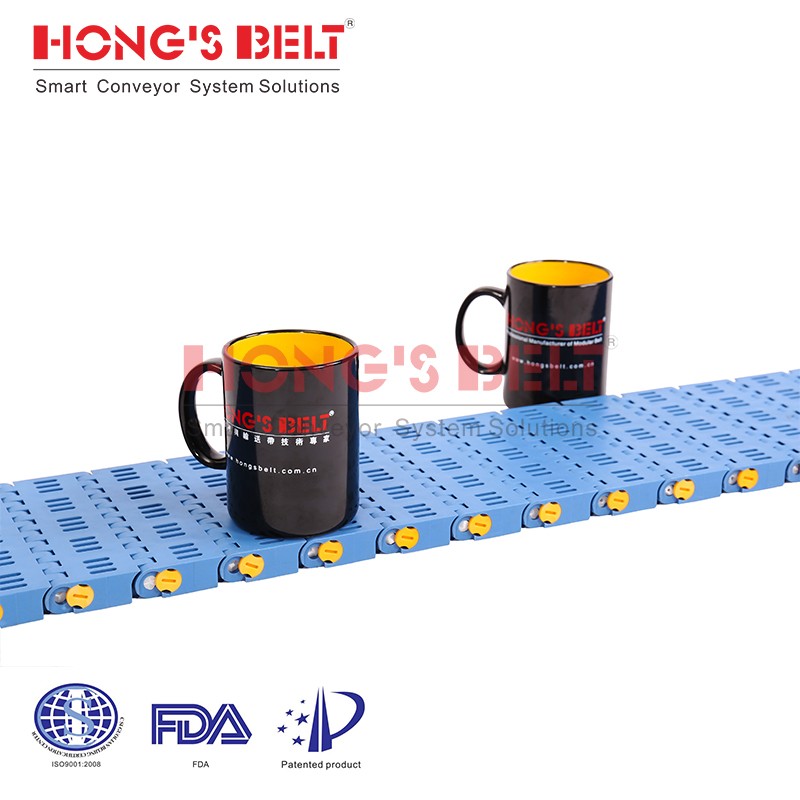

Modular Plastic Conveyor Belt
This modular plastic conveyor belt is engineered for high-performance applications in food processing and industrial sectors. Designed with a modular structure, it offers significant advantages in maintenance, allowing for easy assembly and component replacement to reduce operational downtime. The belt features food-grade material construction and is compliant with international safety standards, ensuring reliability in demanding environments.
Technical Specifications
Maximum Load Capacity
1.2 tons/sqm
Max Load
- Pitch
- 50.8 mm
- Thickness
- 20 mm
- Rod Diameter
- 8 mm
- Minimum Width
- 163 mm
- Open Area
- 11 %
Materials and Compliance
Compliance Standards
FDAEU
- Material Types
- PPPOMPEPA
- Working Temperature Range
- -40°C to 260°C
Design Features
Structural Features
- Flight: No
- Side Guard: No
- Curve: No
- Color Options
- WhiteBlueGrayNatureDark-brown
Applications
Industry Usage
| Sector | Details |
|---|---|
| Food Industry | Meat, Poultry, Sea Food, Bakery, Snack Food, Fruit & Vegetables |
| Non-food Industry | Automotive, Packaging, Printing, Textile, Can/PET Manufacturing |
