Modular Concrete Formwork System
This modular formwork system is designed for concrete construction. It features adjustable steel props and a steel frame with a composite surface.
Technical Specifications
Product Overview
Advanced Modular Formwork Solution

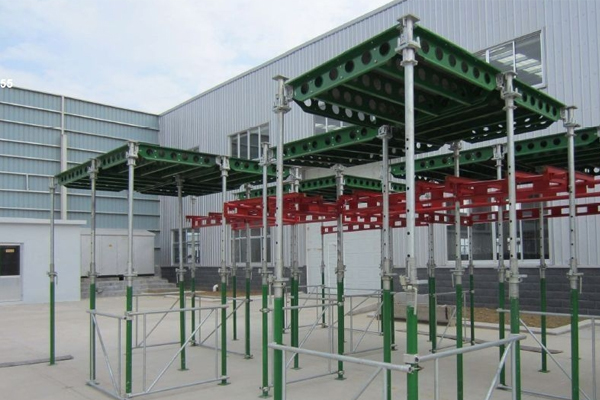

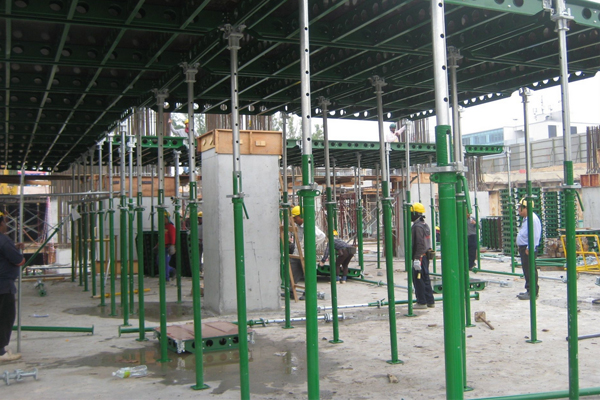

This high-performance steel panel-prop formwork system is engineered for efficiency in concrete construction, allowing for early stripping processes. Utilizing a 4-leg table mechanism with a puzzle-style installation approach, the system is designed to support diverse concrete structures and various construction conditions. Its modular nature and minimal component requirements simplify both vertical and horizontal transfers on-site.
Technical Specifications
- Material Grade
- Q345b Steel
- Surface Treatment
- Hot dip galvanizedPowder coated
Performance Metrics
Productivity
60 m2
Output per man-day
6 sides
Locking restriction directions
Operational Features
Key Advantages
- Early stripping capabilities for faster project cycles
- No human lifting above shoulder level required
- Minimal component count (Panel, Prop, Aux Beam)
- No requirement for cross/lateral braces or tripods
- Safe and reliable 6-direction locking mechanism
