Mobile Vertical Shaft Impact Crusher Plant
This mobile plant is equipped with a high-performance vertical shaft impact (VSI) crusher. It integrates feeding, crushing, screening, and conveying on a single chassis for flexible and efficient material processing.
Technical Specifications
Overview
Mobile Vertical Shaft Impact Crusher Plant

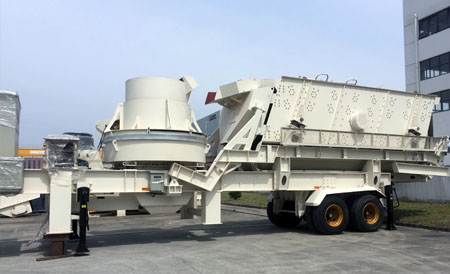

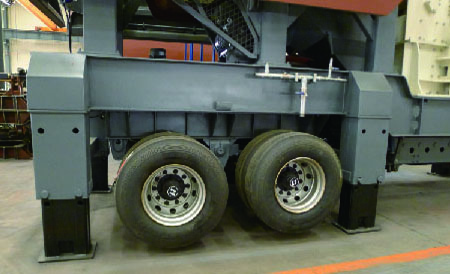

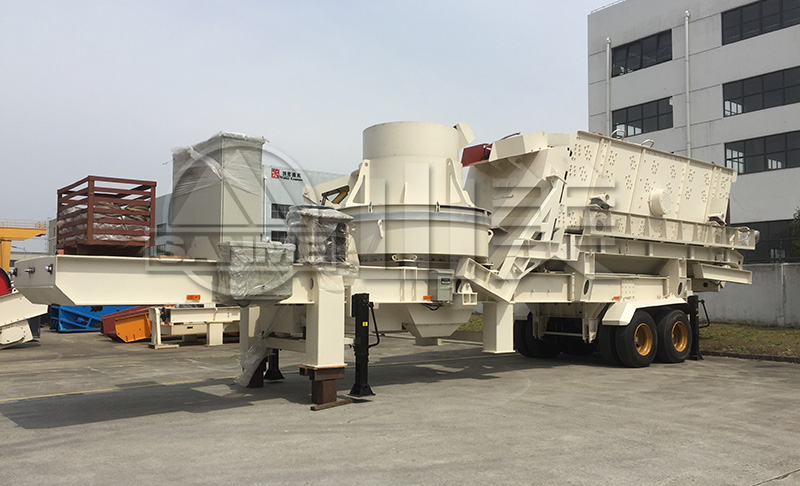

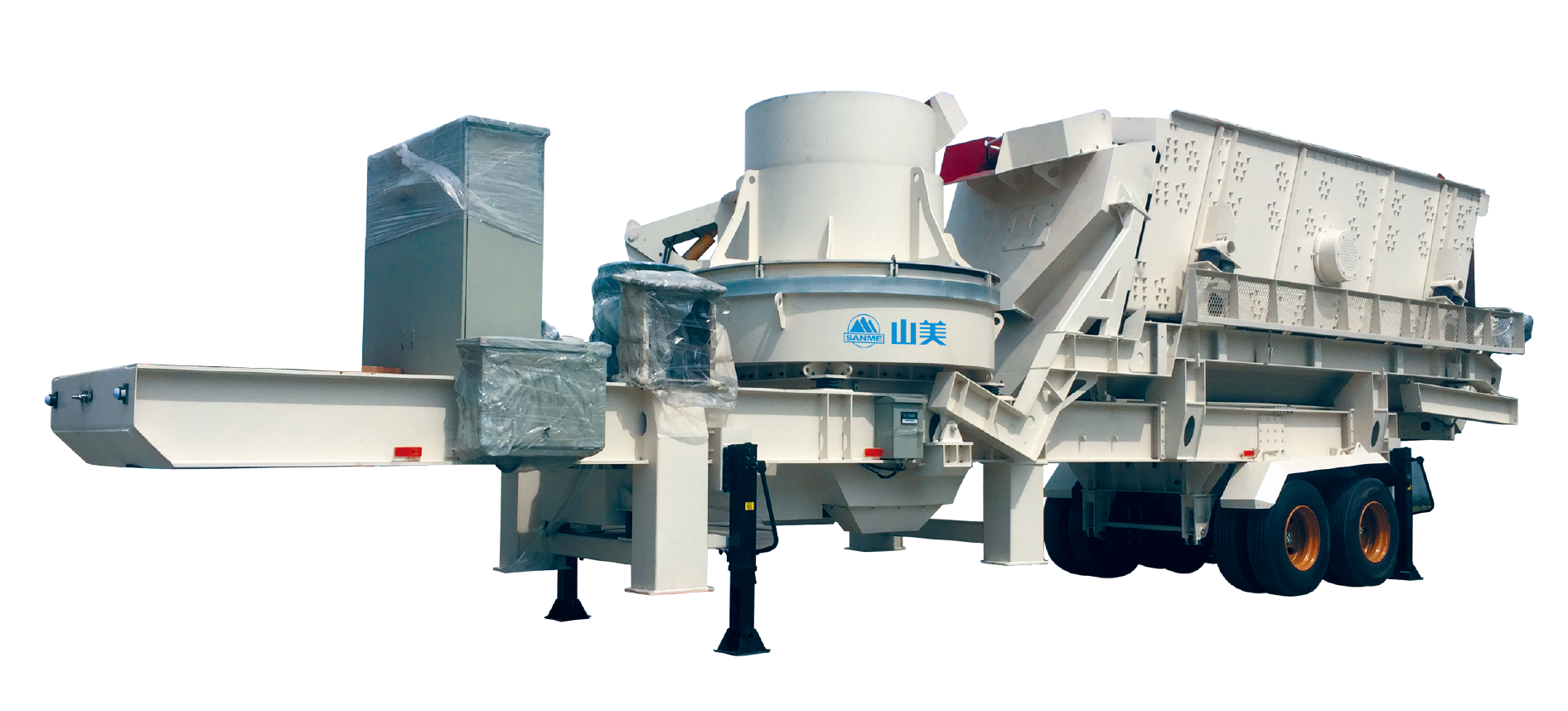

The PP Series Portable VSI Crusher is a high-performance solution for aggregate production and mineral processing. This mobile plant integrates feeding, vertical shaft impact crushing, and screening onto a single, heavy-duty chassis. Designed for excellent mobility, it features a short wheelbase, a tight turning radius, and an optional hydraulic lift system for rapid setup and reduced transport costs.
Performance
Technology Advantages
- High-performance VSI for shaping
- Closed-circuit crushing system
- Continuous operation via belt conveyor
- Reduced material handling
- Operational Configurations
- Crushing first, screening secondScreening first, crushing secondTwo-stage plantThree-stage plant
Technical Data
Technical Specifications
| Model | Length (mm) | Weight (kg) |
|---|---|---|
| PP5000VSI | 9,800 | 21,600 |
| PP5000VSIS | 11,280 | 28,000 |
| PP6000VSI | 11,500 | 22,100 |
| PP6000VSIS | 15,470 | 32,600 |
| PP7000VSI | 14,000 | 23,200 |
| PP7000VSIS | 15,420 | 33,200 |
Design Features

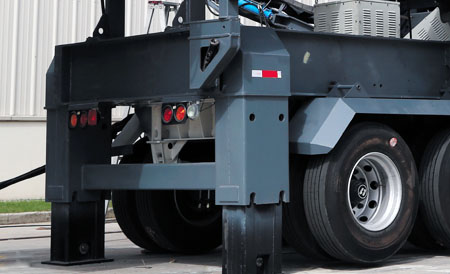

Chassis & Mobility
3,300 mm
Max Transport Width
4,250 mm
Max Transport Height
