Mobile Nitrogen Charging Cart

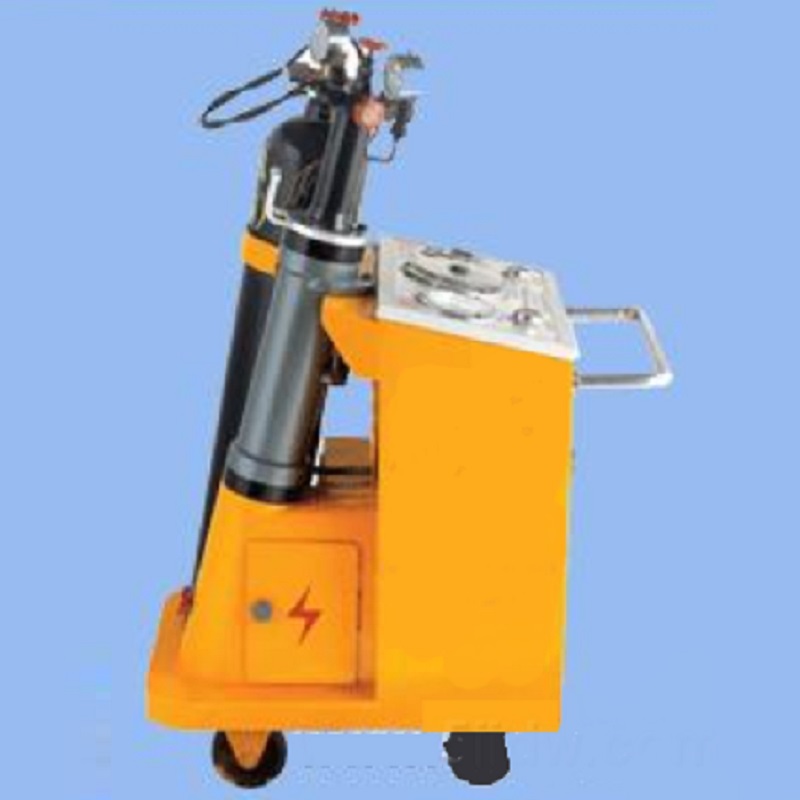

This mobile nitrogen charging cart is designed for filling and pressurizing systems with nitrogen gas. It features a robust frame with integrated handles and wheels for easy maneuverability.
Technical Specifications
Product Overview
Mobile Nitrogen Charging Cart
The Mobile Nitrogen Charging Cart, also known as a nitrogen-filling vehicle, is specialized industrial equipment designed to fill and boost nitrogen pressure in high-pressure vessels. It is compatible with hydraulic bladder, capsule, piston, and diaphragm accumulators. This system provides a robust solution for environments requiring pre-charged nitrogen pressures that exceed the standard 13.5Mpa limit of direct cylinder filling, reaching up to 42Mpa.
Technical Performance
- Maximum Charging Pressure
- 42 Mpa
- Standard Direct Fill Limit
- 13.5 Mpa
System Components
Key Features
- Electric contact pressure gauge for automatic shut-off
- Two-way supercharger
- Pilot selector valve control
- Mobile cart design with wheels and handles
- Core Systems
- Hydraulic SystemGas CircuitElectrical Circuit
Applications
Typical Applications
Accumulator ChargingPressure TestingPneumatic System Maintenance
