Miniature Audio Speaker
This miniature audio speaker is engineered for clear and crisp sound reproduction in a small form factor. Its robust design ensures durability and consistent performance across various applications.
Technical Specifications
Overview
High-Performance Miniature Audio Speaker

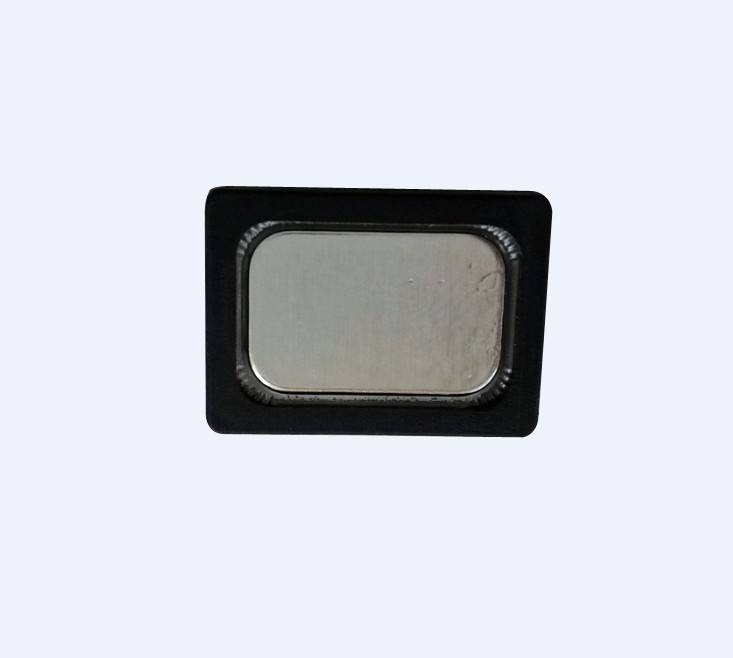

This rectangular miniature speaker is engineered for high-fidelity sound reproduction in space-constrained electronic devices. Featuring a robust construction with a protective grille, it delivers crisp audio output and consistent performance. Designed for versatility, this component is an ideal audio solution for mobile phones, laptops, and other portable consumer electronics.
Acoustic Performance
Key Acoustic Metrics
0.5 W
Rated Input Power
1 W
Max Input Power
83.5 dB
Sensitivity
Total Harmonic Distortion (THD)
| Frequency | Max THD |
|---|---|
| 500Hz | <15% |
| 600Hz | <15% |
| 1500Hz | <3% |
| 15000Hz | <3% |
- Impedance
- 8±15% ohm @ 2000HZ, 1Vrms input
- Resonance Frequency
- 500±75Hz (free air), 800±120Hz (1cc box)
Physical Specifications
Height
- 2.5mm
- 3.0mm
- 3.5mm
- Shape
- Rectangle
- Country of Origin
- China (Mainland)
Operating Environment
- Operating Temperature
- -20℃ to 70℃
- Storage Temperature
- -40℃ to 85℃
Applications
- Typical Applications
- Mobile PhoneComputerLaptopPortable Electronics
