Mini Skid Steer Wheel Loader
This mini skid steer wheel loader is designed for earth moving tasks. Its skid steer design allows excellent maneuverability in tight spaces.
Technical Specifications
Overview

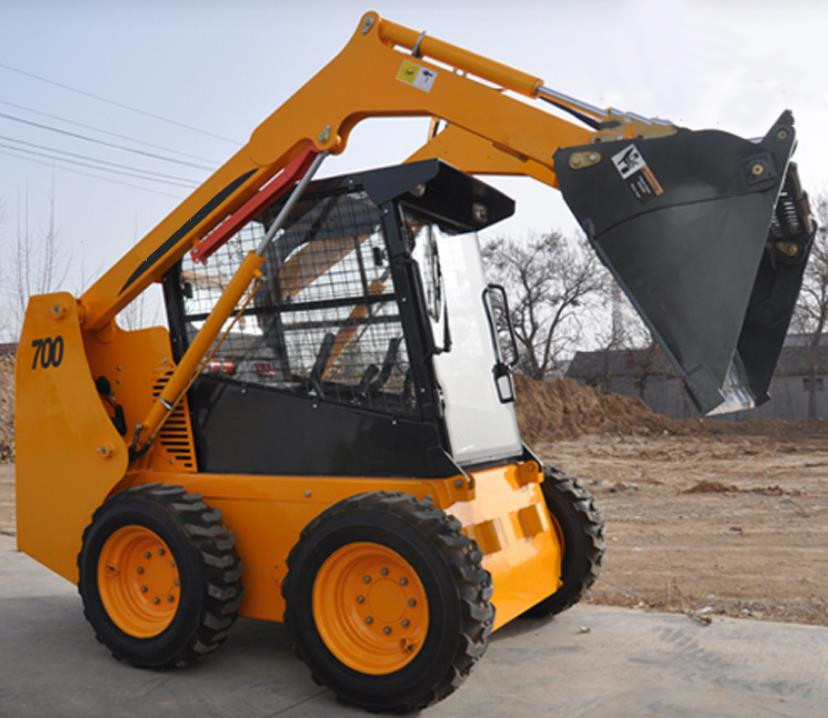

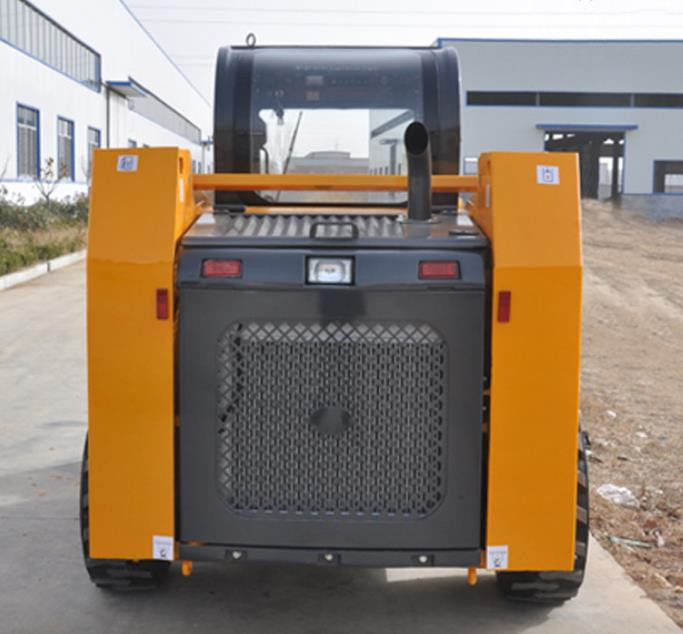

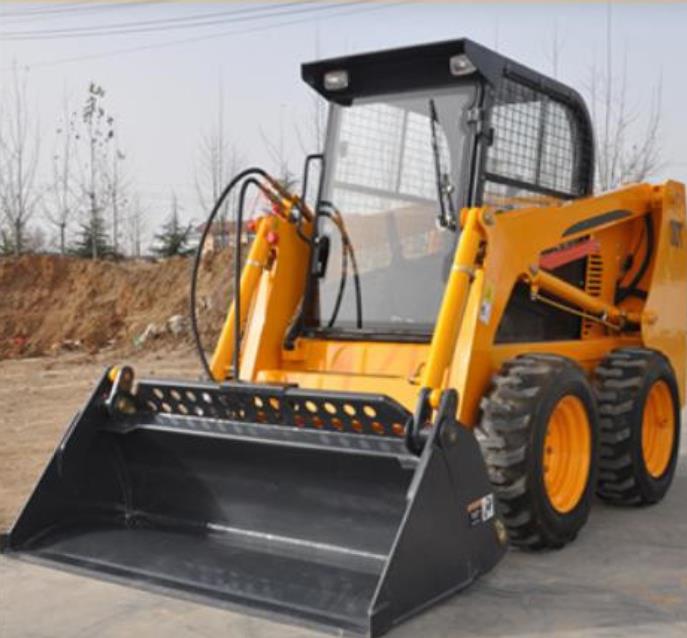

Mini Skid Steer Wheel Loader 700
The 700 Mini Skid Steer Wheel Loader is a versatile and robust construction machine engineered for efficient earth-moving, landscaping, and material handling tasks. Featuring a high-strength frame and a powerful, energy-efficient engine, it provides exceptional stability and performance in demanding environments. Its compact design and advanced hydraulic system ensure superior maneuverability in tight spaces, making it an ideal solution for urban construction and site preparation projects.
Key Features
- Key Features
- High-Strength FrameRear-Mounted RadiatorHydrostatic 4WDEnergy-Efficient EngineCompact Design
Engine & Performance
Engine Specifications
45 kW
Power Output
2,500 R/min
Rotating Speed
Engine Details
- Model: 498BPG
- Four cylinders
- Water cooling system
Hydraulics & Drive
Hydraulic System
- Drive: Hydrostatic four-wheel drive
- Pump Flow: 110 L/min
- Pressure: 15 MPa
- Double plunger pump configuration
Dimensions & Capacity
Machine Dimensions
| Dimension | Value |
|---|---|
| Total Length | 3400 mm |
| Total Width | 1665 mm |
| Total Height | 1979 mm |
| Wheelbase | 1425 mm |
| Ground Clearance | 196 mm |
Operating Capacities
3,490 mm
Working Height
3,028 mm
Max Pin Height
2,266 mm
Max Discharge Height
Electrical & Fluids
Tank Capacities
103 L
Fuel Tank
63 L
Hydraulic Oil Tank
