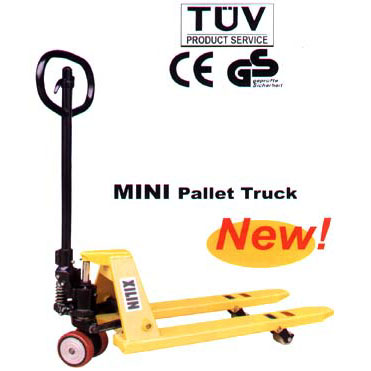

Mini Pallet Truck 500kg Capacity
This mini pallet truck is designed for moving loads. It features a hand-operated hydraulic lift, a steering handle with controls, and wheels for maneuverability.
Technical Specifications
Product Overview
Compact Material Handling Solution
The Mini Pallet Truck is a compact and efficient tool designed for light-duty material handling in warehouses and logistics environments. With a 500kg capacity, it offers a robust solution for moving smaller loads with ease and precision. Its manual hydraulic lift system and maneuverable design make it an essential asset for optimizing workflow in tight spaces.
- Certifications
- TÜVCEGSGeprüfte Sicherheit
Performance Metrics
Key Performance Indicators
500 kg
Load Capacity
35 kg
Truck Weight
Dimensions
Dimensional Specifications
| Parameter | Value |
|---|---|
| Total lift height (H2) | 170~185 mm |
| Lowered fork height (H1) | 60/75 mm |
| Height of handle (H3) | 370.5 mm |
| Fork length (L) | 800 mm |
| Width over forks (W) | 380 mm |
Technical Details
- Fork Wheel Diameter
- Ø64 / Ø74 mm
