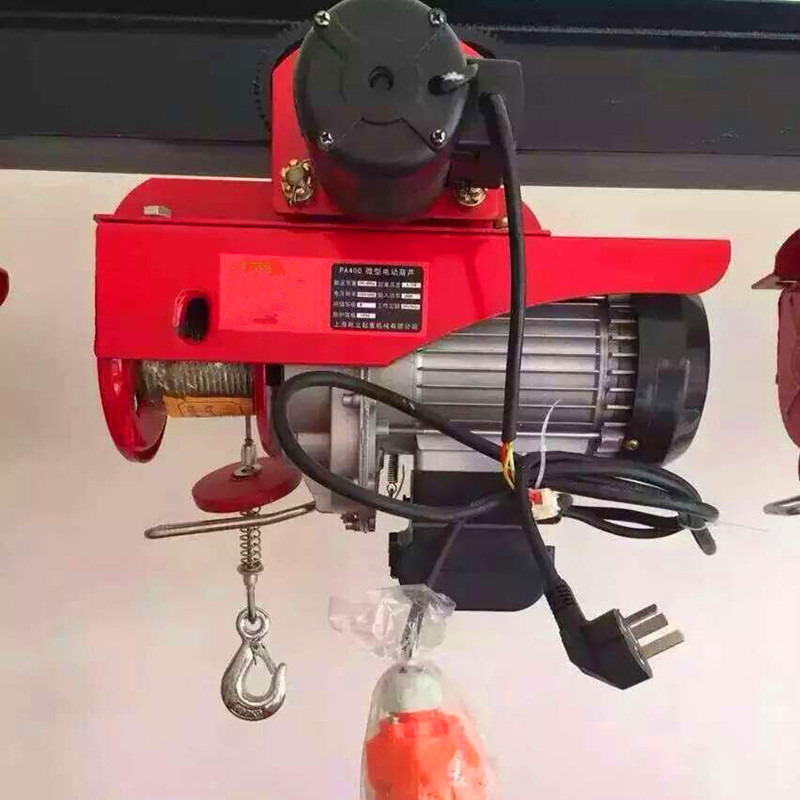

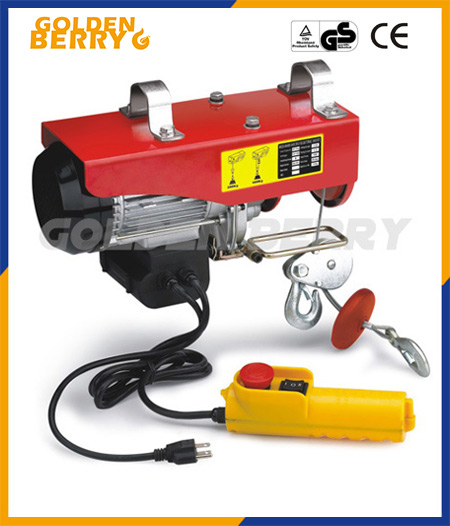

Mini Electric Wire Rope Hoist
This mini electric wire rope hoist features a compact structure for easy installation. It is designed for vertical lifting applications.
Technical Specifications
Overview
Compact Power for Lifting
This mini electric wire rope hoist is engineered for efficient lifting in confined spaces, making it an essential tool for workshops, garages, and construction sites. Its compact structure design ensures easy installation, while the high-performance motor and durable construction provide reliable operation. With safety features like overload protection and a secure hook with a latch, it offers a robust solution for various industrial lifting applications.
Certifications
- Safety Certifications
- CEGSTUV Rheinland
Technical Specifications
Model Specifications
| Model | Power (W) | Single Hook Cap. (kg) | Double Hook Cap. (kg) | Lifting Height (m) |
|---|---|---|---|---|
| PA200 | 510 | 100 | 200 | 12 |
| PA250 | 550 | 125 | 250 | 12 |
| PA300 | 600 | 150 | 300 | 12 |
| PA400 | 980 | 200 | 400 | 12 |
| PA500 | 1,020 | 250 | 500 | 12 |
| PA600 | 1,200 | 300 | 600 | 12 |
| PA800 | 1,300 | 400 | 800 | 12 |
| PA1000 | 1,600 | 500 | 1,000 | 12 |
- Rated Voltage
- 220 V
- Lifting Speed (Single Hook)
- 10 m/min
