Technical Specifications
Overview

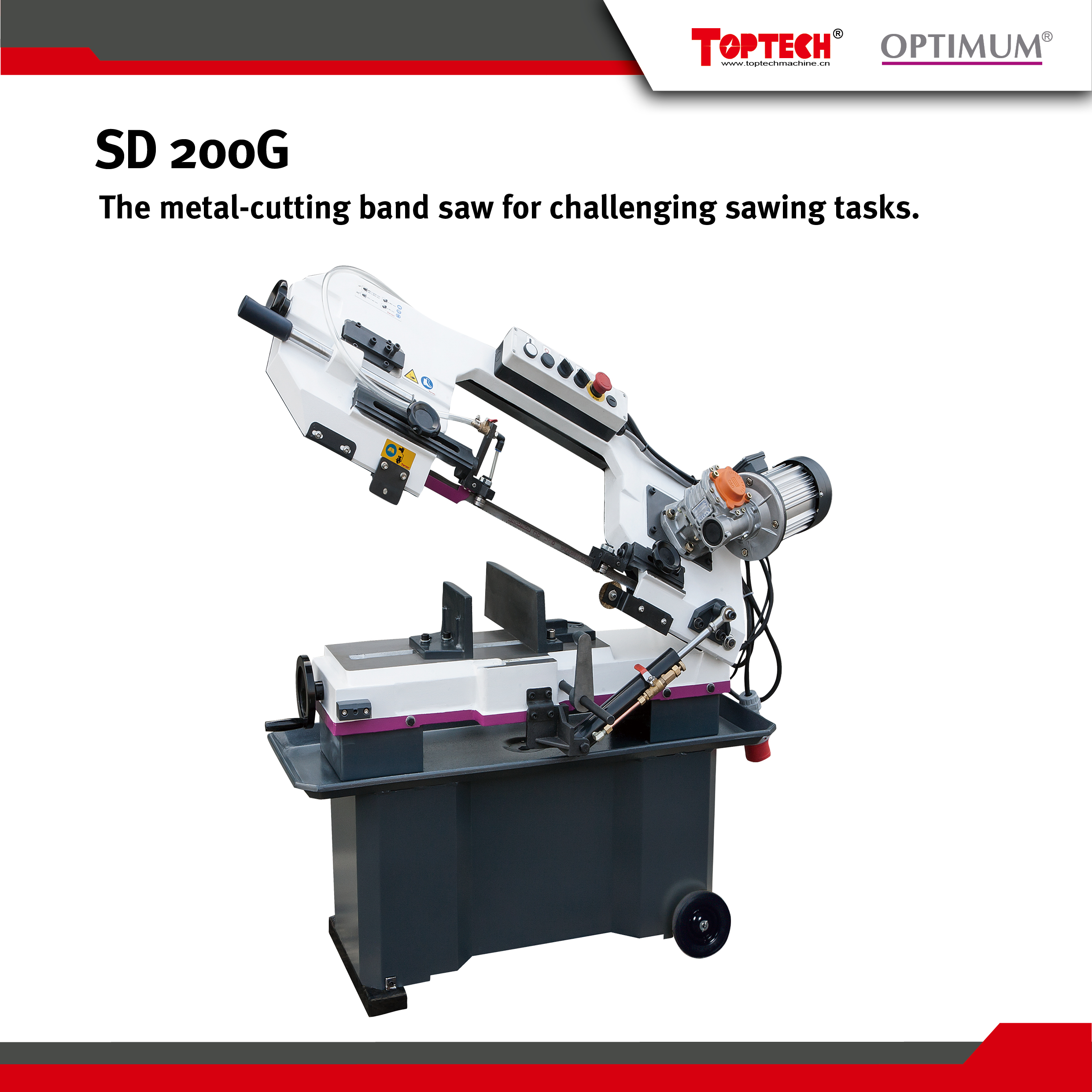

Precision Metal Cutting Performance
This metal band saw is engineered for challenging sawing tasks, offering robust construction and high-performance operation. It features a solid casting design for stability and silent operation, ensuring precise and consistent cuts for professional applications. Equipped with advanced safety features and hydraulic control, it provides an efficient and user-friendly experience for industrial metalworking.
Technical Specifications
Motor Power
750 W
High Power
550 W
Low Power
- Saw Band Speed
- 88 m/min
- Saw Band Dimensions
- 2360 x 19 x 1 mm
Cutting Capacity
Cutting Range
| Angle | Round (Ø) | Rectangular |
|---|---|---|
| 0° | 180 mm | 180 x 240 mm |
| 45° | 110 mm | 170 x 110 mm |
Machine Dimensions
Machine Dimensions
- Length: 1200 mm
- Width (no limit stop): 450 mm
- Width (with limit stop): 720 mm
- Height (lower position): 1050 mm
- Height (upper position): 1600 mm
Weight
130 kg
Net Weight
150 kg
Gross Weight
Features & Safety
Construction
Solid castingSilent operationBall bearing guide

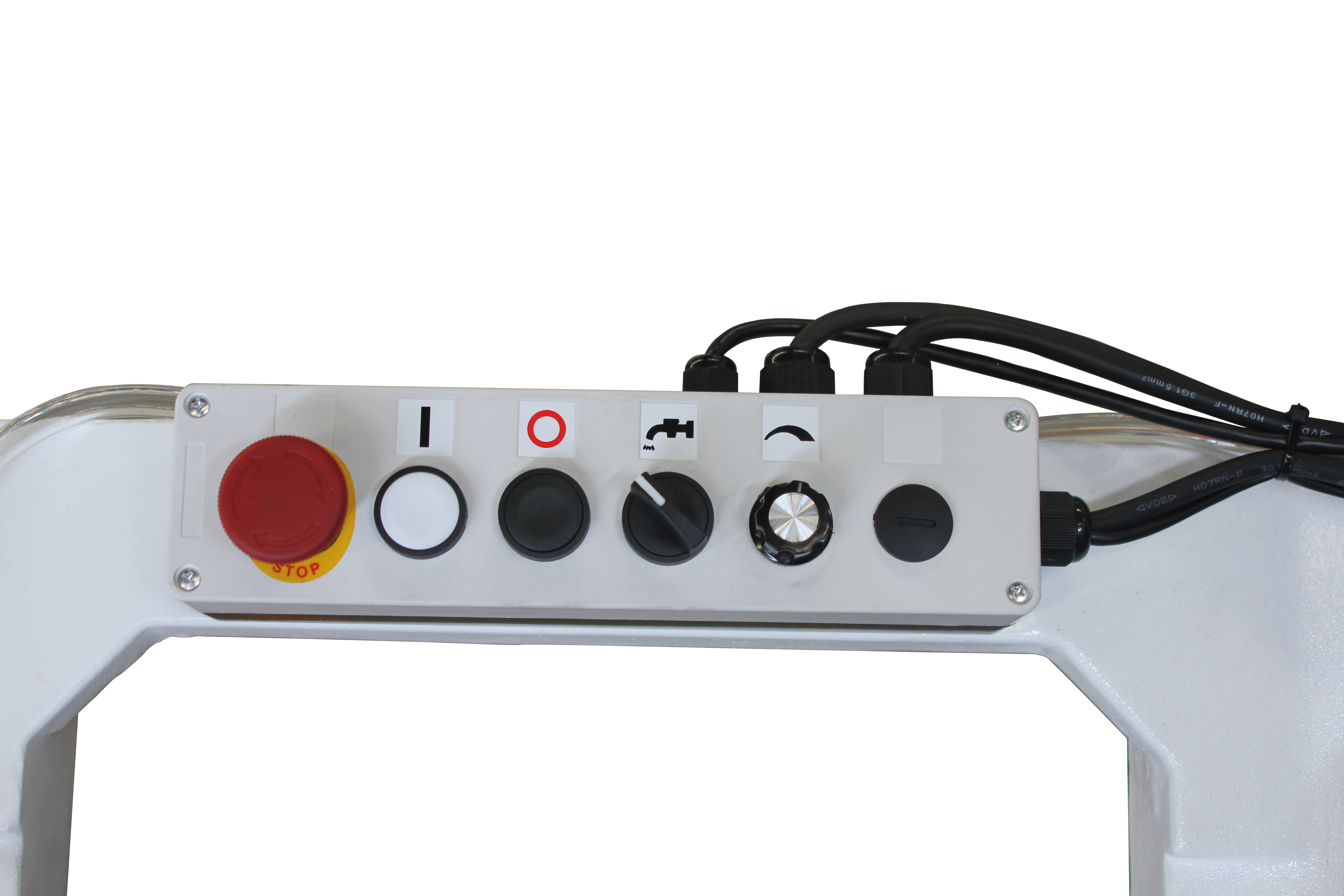

- Safety & Control
- IP 54 Safety SwitchLow-voltage releaseAutomatic switch-offHydraulic support cylinderVariable throttle valve
