Technical Specifications
Overview
Industrial Embossing Solution

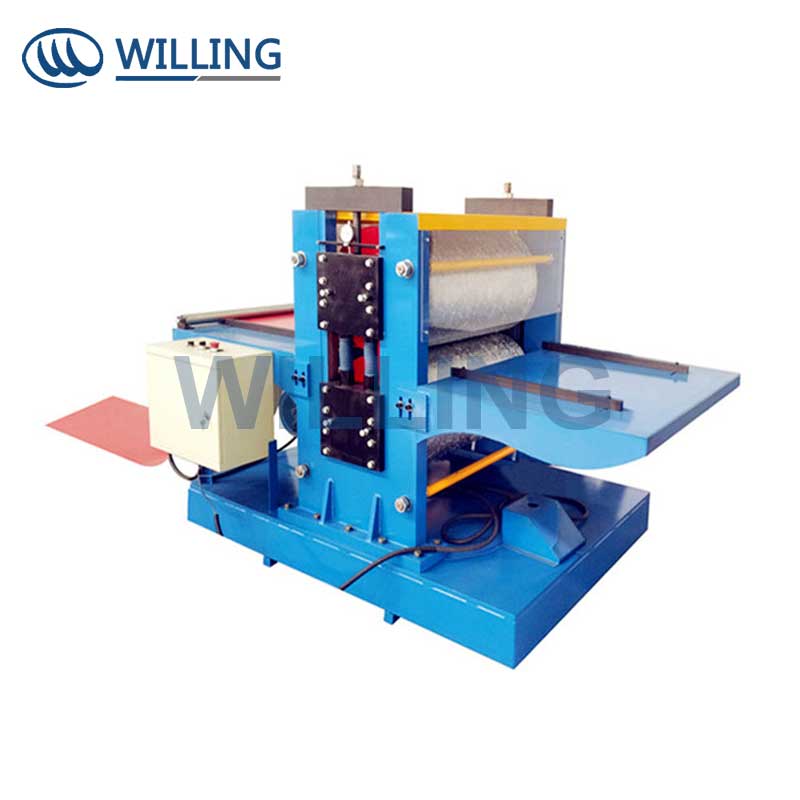

This material embossing machine is engineered for high-precision imprinting on steel, aluminum, and stainless metal sheets, as well as particle boards and decorative materials. Featuring a robust construction and adjustable settings, it delivers clear, high-definition patterns with strong three-dimensional effects. Designed for industrial efficiency, it supports bidirectional operation and is built for consistent, high-quality output.
Technical Specifications
Working Speed
10 m/min
Min Speed
15 m/min
Max Speed
Roller Specifications
| Feature | Specification |
|---|---|
| Material | Cr12MoV |
| Diameter | Φ350mm |
| Max Width | 1300mm |
- Compatible Materials
- SteelAluminumStainless SteelParticle BoardDecorative Materials
Machine Dimensions & Power
Power Requirements
- Main motor power: 2.2kw
- Voltage: 380V
- Phase: 3-phase
- Frequency: 50Hz
- Machine Dimensions
- 1700mm x 1300mm x 1500mm
- Total Weight
- 3500 kg
Operational Details
Run Direction
Both directions
- Material Thickness Range
- 0.35-0.4mm
