Marine Evacuation System with Inflatable Slide

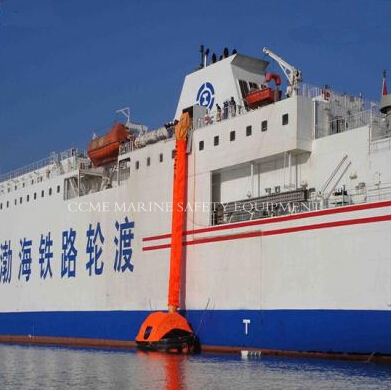

This marine evacuation system features a stainless steel container for deck stowage. Upon handle release, the system automatically deploys into the sea.
Technical Specifications
Overview
Marine Evacuation System
The Marine Evacuation System (MES) is engineered for the rapid and safe evacuation of passengers and crew during emergency maritime situations. Featuring an inflatable slide connected to a boarding platform, this system ensures a stable and efficient escape route. Constructed from durable, weather-resistant materials, it is designed to withstand harsh marine environments while meeting stringent safety and regulatory standards.
- Certifications
- CCS
Technical Specifications
System Performance
300 persons
Max Assigned Capacity
60 persons
Platform Capacity
Model Specifications
| Model | Stowage Height (m) | Weight (kg) | Container Dims (mm) |
|---|---|---|---|
| MES-VP10 | 10 | 1,360 | 2300×1600×2200 |
| MES-VP11 | 11 | 1,370 | - |
| MES-VP12 | 12 | 1,380 | - |
| MES-VP13 | 13 | 1,390 | - |
| MES-VP14 | 14 | 1,400 | - |
| MES-VP15 | 15 | 1,410 | - |
| MES-VP16 | 16 | 1,420 | - |
| MES-VP17 | 17 | 1,430 | - |
| MES-VP18 | 18 | 1,440 | - |
| MES-VP19 | 19 | 1,450 | - |
| MES-VP20 | 20 | 1,460 | - |
| MES-VP21 | 21 | 1,470 | - |
| MES-VP22 | 22 | 1,480 | - |
