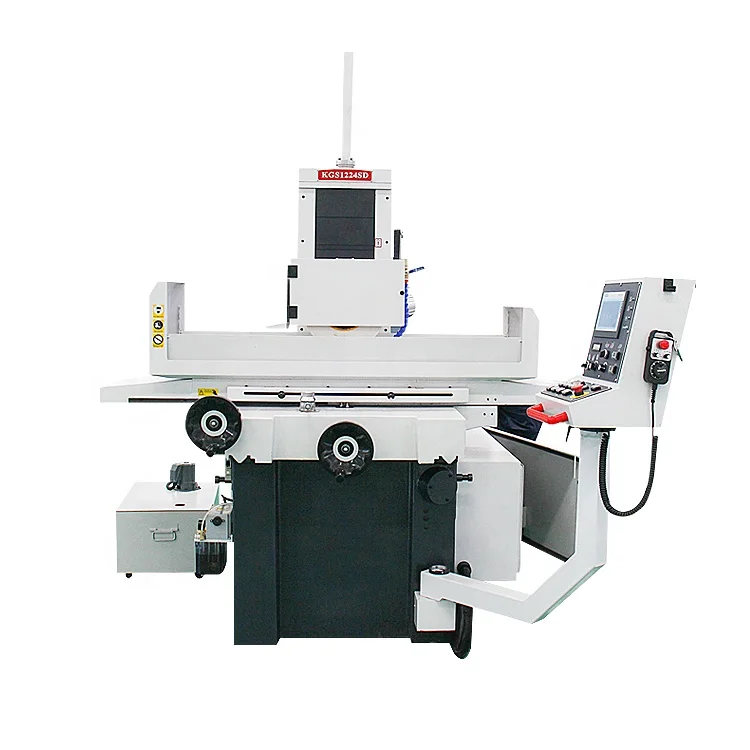

Manual Surface Grinding Machine with 300x600mm Table
This manual surface grinding machine is designed for precision grinding operations. It features a robust construction and a worktable that can be manually adjusted.
Technical Specifications
Overview
Precision Manual Surface Grinding
This manual surface grinding machine is engineered for high-precision flat surface finishing, offering a stable and reliable solution for small to medium-sized workpieces. It features a robust, rigid construction that ensures accuracy during complex grinding operations, making it an essential tool for tool and die making. Equipped with an intuitive control interface, including a digital display for monitoring parameters, this machine provides operators with excellent control and feedback for consistent results.
Technical Specifications
- Model
- KGS1224SD
- Working Surface of Table
- 300x600 mm
- Max Table Travel
- 660 mm
- Max Cross Travel
- 370 mm
- Max Table Load
- 420 kgs
- Distance (Table to Spindle Center)
- 540 mm
- Tee Slot
- 1x14 mm
Features
Control System

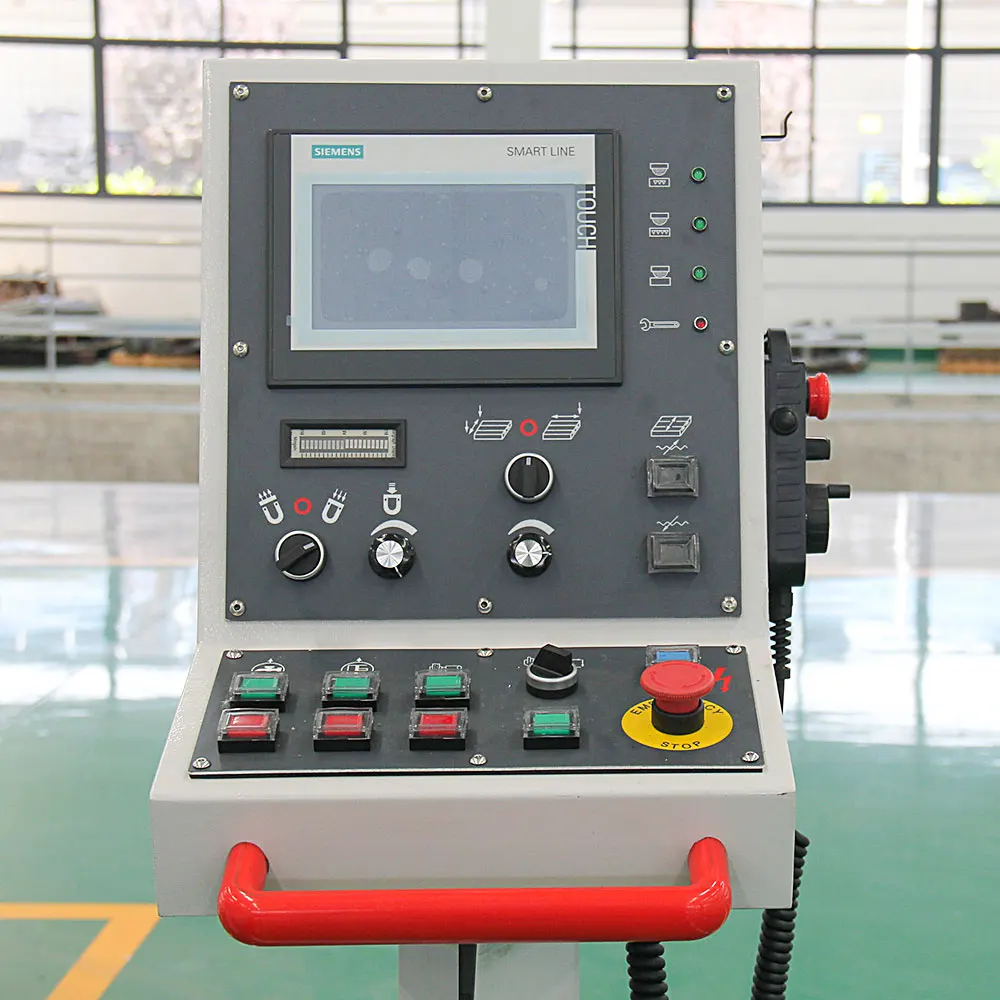

Touch Screen InterfaceEmergency StopIn-situ Measurement
- Key Capabilities
- Closed Hydrostatic GuidewayLaser Interferometer SystemHigh RigidityManual Fine Adjustment
