Technical Specifications
Overview
Universal Material Handling Solution

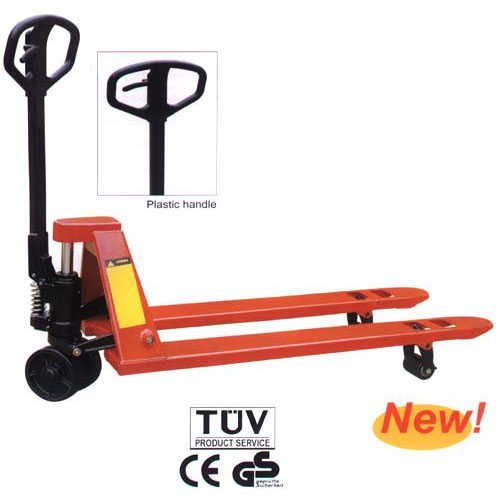

This manual pallet truck is designed for versatility and reliability across all types of industrial applications. Built with a strong yet lightweight steel construction, it features reinforced fork tips and welded joints to handle the toughest working environments. With an excellent 180-degree turning angle and built-in serviceability, this truck ensures efficient load movement and long-term durability.
Performance Metrics
Load Capacity
2,300 kg
Capacity
- Turning Angle
- 180 degrees
Dimensions
Lift Heights
190 mm
Total Lift Height
75 mm
Lowered Fork Height
Fork Dimensions
| Dimension Type | Available Options |
|---|---|
| Fork Length (mm) | 1100, 1150, 1220 |
| Width Over Forks (mm) | 520, 550, 685 |
Construction & Maintenance
Wheel Specifications
- Steering Wheel: Ø180mm
- Fork Wheel: Ø74x93mm
Maintenance Features
Grease nipples fittedReinforced fork tipsWelded joints
- Wheel Material Options
- NylonPolyurethaneRubber
- Truck Weight
- 75 - 102 kg
Certifications
- Compliance
- CEGSTÜV
