Overview
Manual Brake Valve PDF17-00
The PDF17-00 is a robust manual brake valve designed specifically for heavy-duty construction machinery, including excavators. Featuring a reliable lever-operated mechanism, it provides precise control over the application and release of the parking brake system. Its durable construction and corrosion-resistant blue finish ensure consistent performance in demanding operational environments.

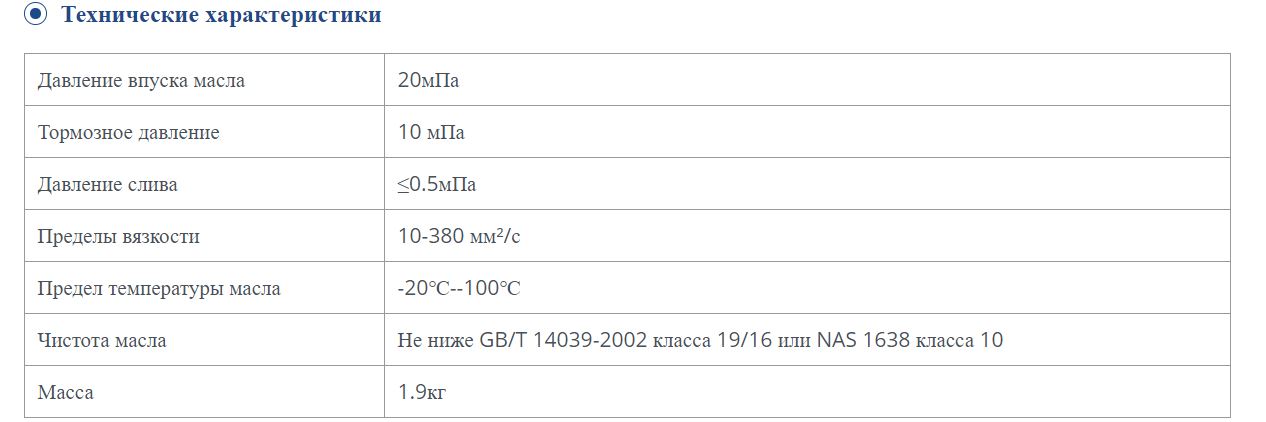

Technical Specifications
Key Performance Metrics
20 MPa
Oil Inlet Pressure
10 MPa
Brake Pressure
0.5 MPa
Drain Pressure (Max)
1.9 kg
Mass
Operating Conditions
| Parameter | Specification |
|---|---|
| Viscosity Range | 10-380 mm²/s |
| Oil Temperature Range | -20°C to 100°C |
| Oil Cleanliness Requirement | GB/T 14039-2002 class 19/16 or NAS 1638 class 10 |

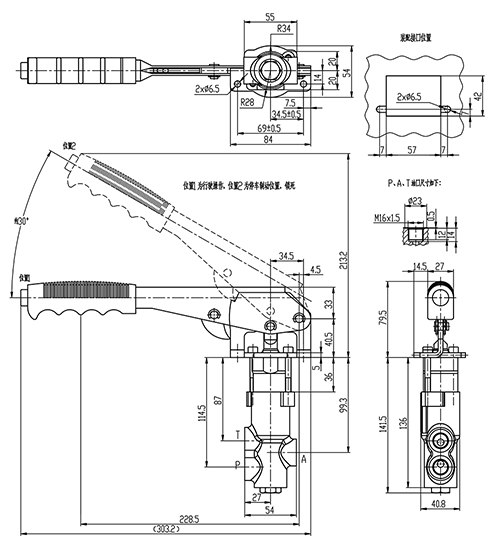

Dimensions and Mounting
Dimensional Specifications
- Overall length: 228.5 mm (303.2 mm with handle)
- Height: 114.5 mm
- Base width: 54 mm
- Threaded connection: M16x1.5
