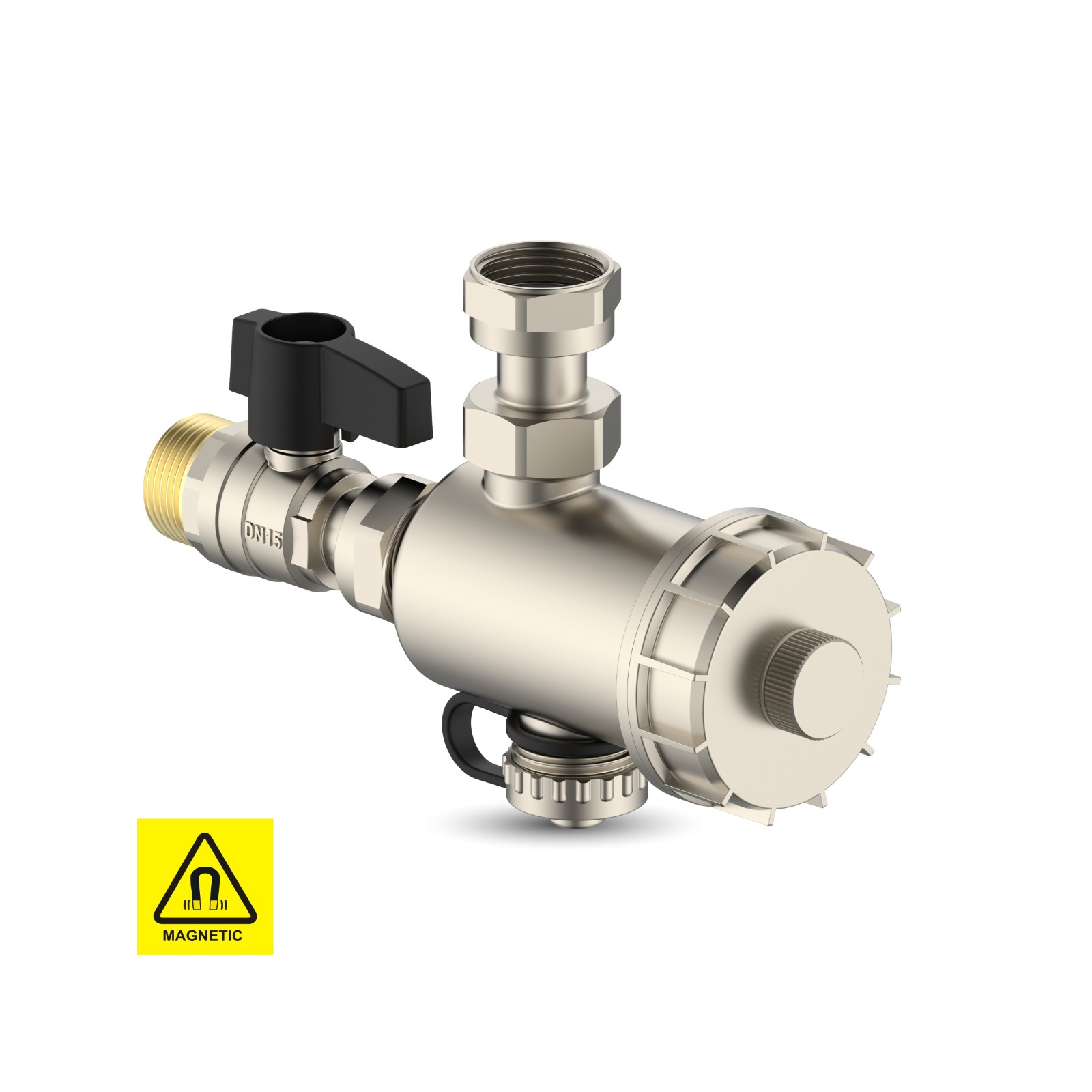

Magnetic Dirt Separator for HVAC Systems
This magnetic filter is designed for heating and cooling systems to remove ferrous particles and debris. Its compact size allows installation in limited spaces.
Technical Specifications
Product Overview
High-Efficiency Magnetic Filtration

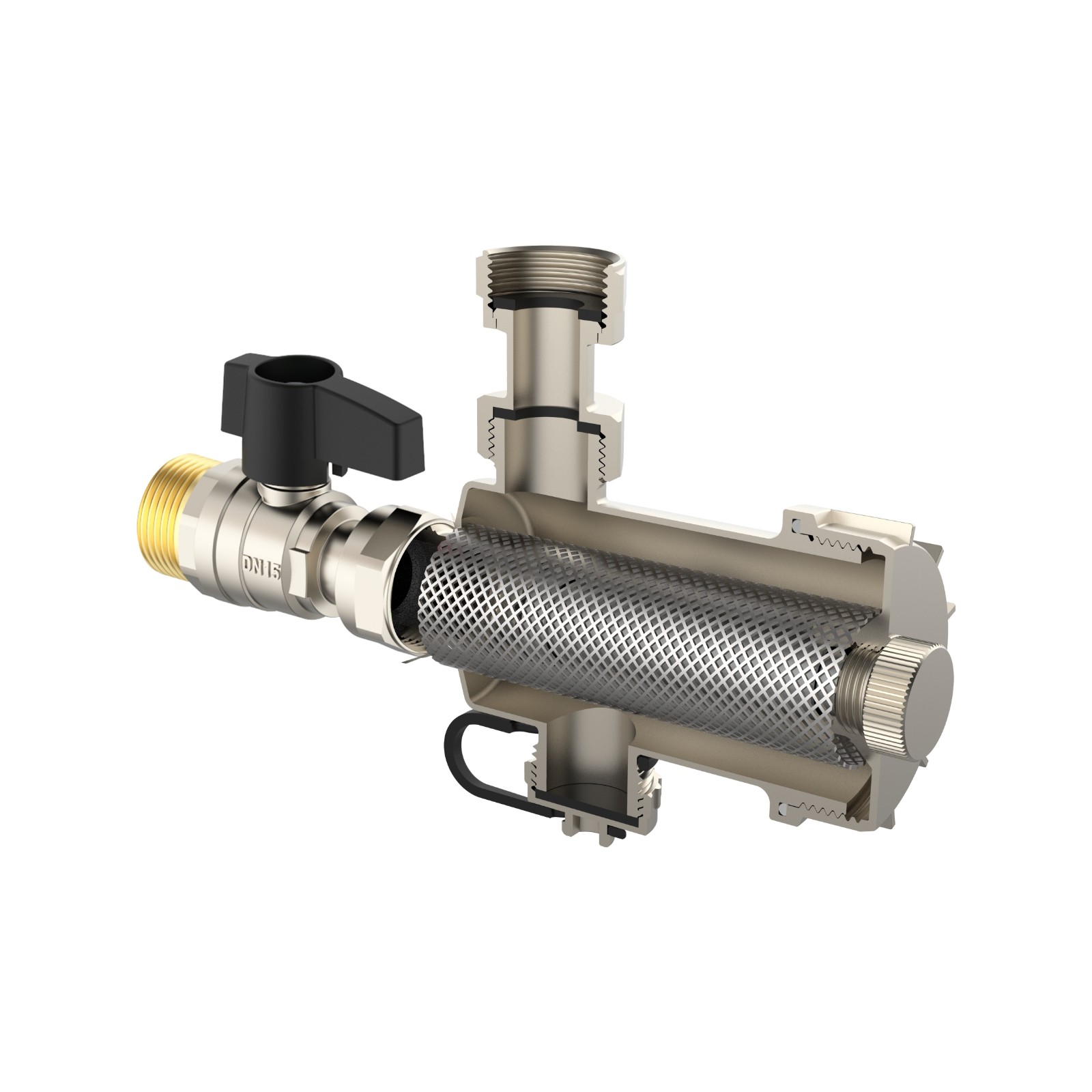

This magnetic dirt separator is engineered for HVAC heating and cooling systems to isolate loose particles and debris from the water circulation. By capturing ferrous contaminants through a powerful 11,000 Gauss magnet and filtering larger debris with a stainless steel mesh, it protects sensitive components like control valves and circulating pumps. Its compact design ensures easy installation in limited spaces, while the large-diameter drain plug allows for fast and efficient maintenance.
Technical Specifications
Magnet Strength
11,000 Gauss
Magnetic Field
Physical Dimensions
| Dimension Type | Value | Unit |
|---|---|---|
| Total Width | 182 | mm |
| Total Height | 120 | mm |
| Width to Top Connection | 92.5 | mm |
| Height to Side Connection | 72 | mm |
- Connection Size
- G 3/4"
- Nominal Diameter
- DN 15
Features
Key Features
- 11,000 Gauss high-power magnet
- Stainless steel mesh filter
- Large diameter drain plug for fast service
- Compact design for limited space installation
- Protects pumps and valves from failure
- Suitable Applications
- Residential HeatingCommercial HeatingCooling SystemsHVAC
