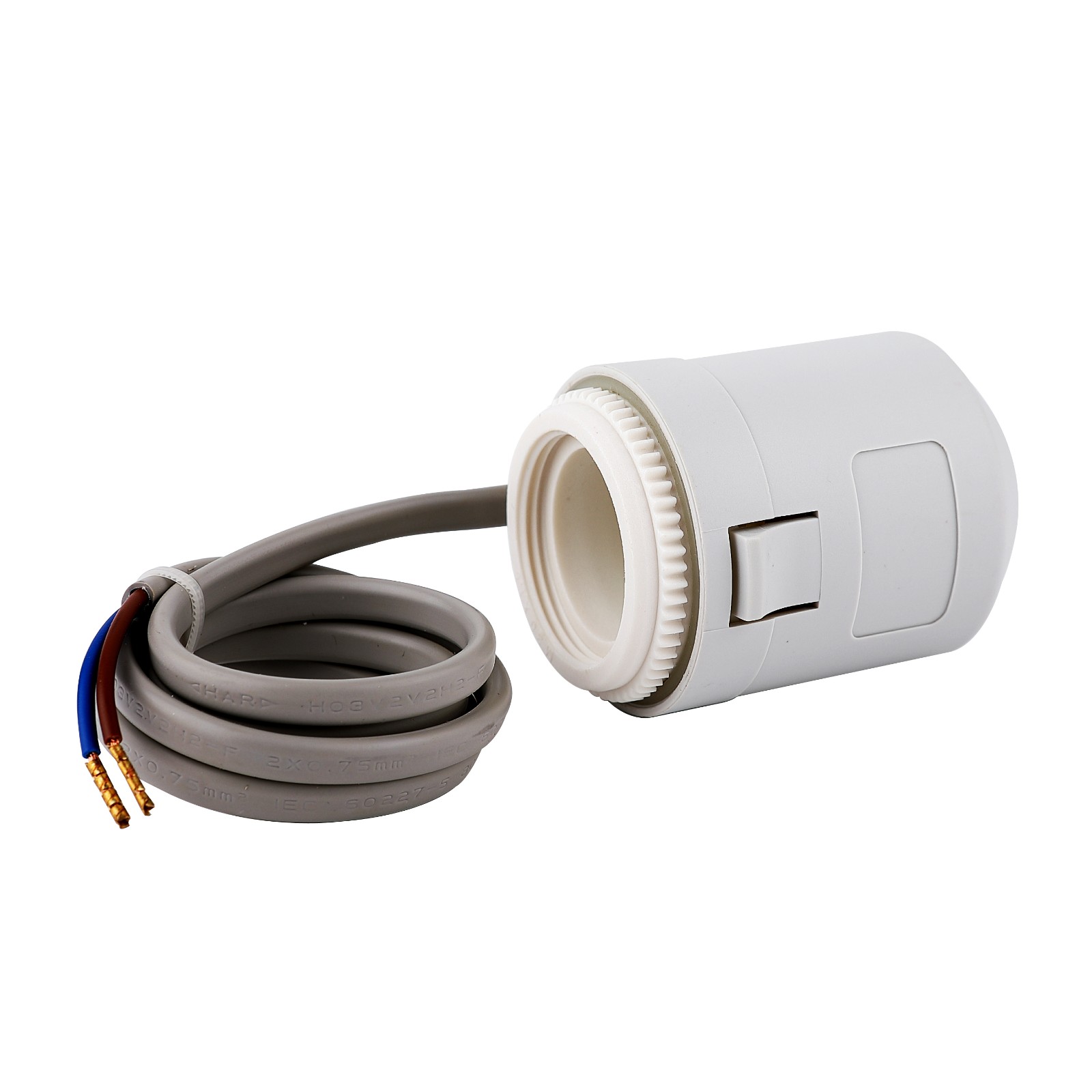

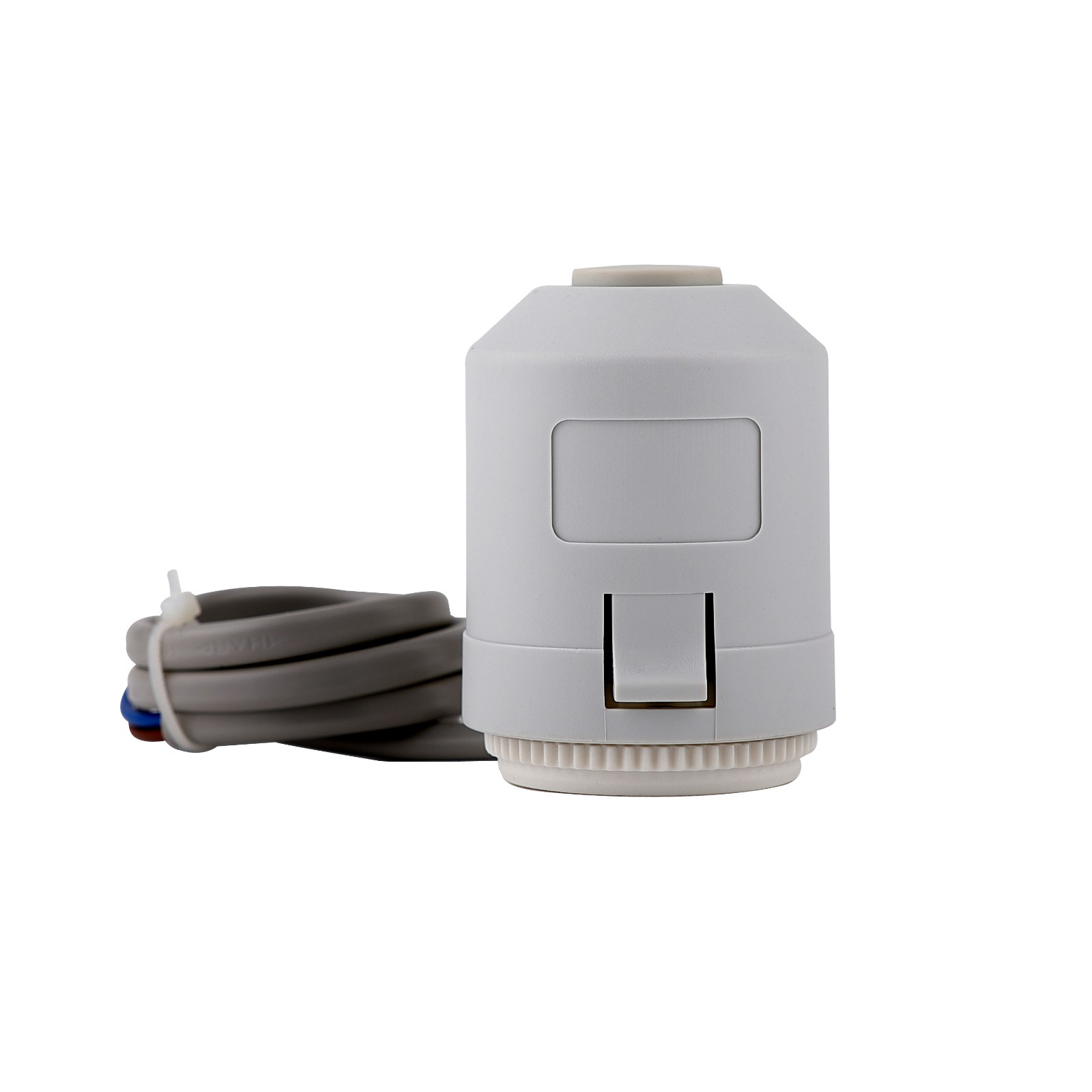

M30*1.5mm Thermal Actuator for Floor Heating
This thermal actuator is designed for floor heating systems with an M30*1.5mm connection. It is used to control the flow of hot water in underfloor heating manifolds.
Technical Specifications
Overview
High-Efficiency Thermal Actuator
This thermal actuator is designed for precise temperature control in floor heating and cooling circuits. Featuring a compact, maintenance-free design with 360° installation capability, it ensures reliable operation for residential and commercial applications. Built with durable PA66+30%GF materials, it offers high functional safety and patented protection against leaky valves.
Technical Specifications
Protection Grade
IP54
- Voltage Options
- 12V24V110V230V
- Power Consumption
- 2 VA
- Operating Force
- 110 N
- Maximum Stroke
- 4.5 ± 0.5 mm

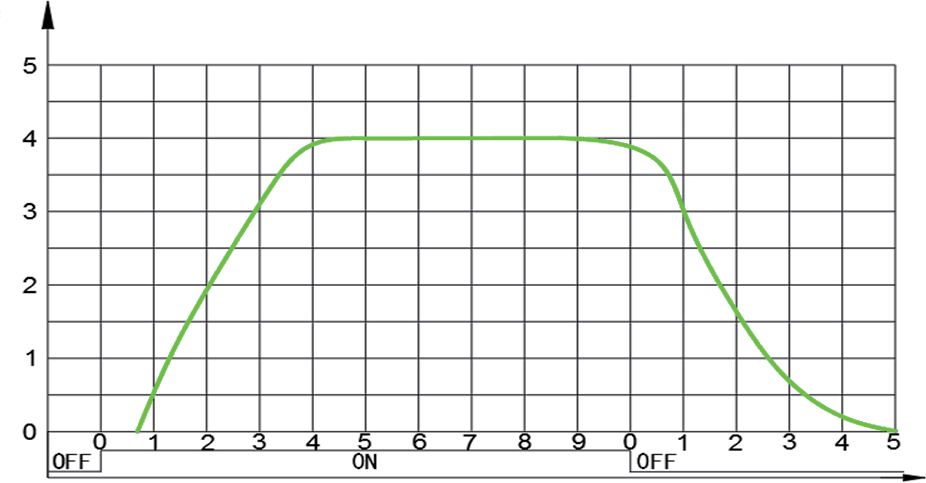

- Running Time
- 3-5 min
- Working Temperature
- -5 to 60 °C
Physical Properties
- Connection Size
- M30 x 1.5 mm
- Housing Material
- PA66 + 30% GF
- Cable Length
- 800 mm
Features
Key Features
- 360° installation position
- Maintenance-free and noiseless

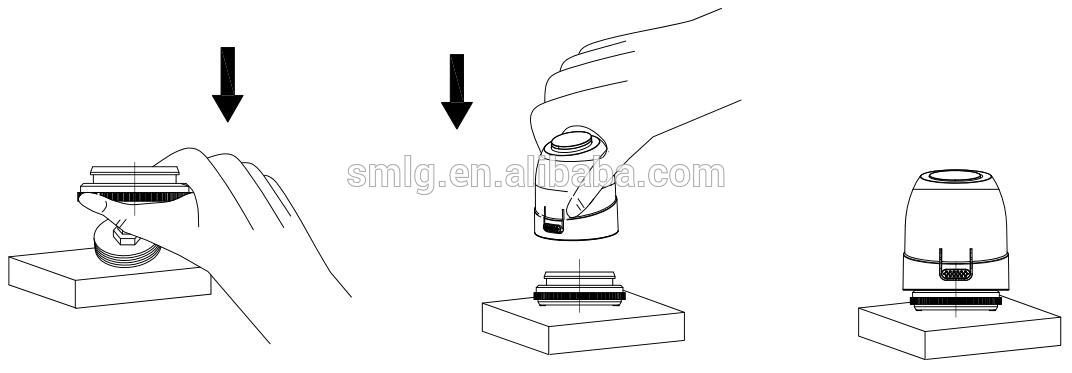

- Snap-on installation
- Valve adapter concept
- Patented leak protection
Compliance
- Certifications
- EMC Directive 2014/EULVD Directive 2014/EURoHS
Logistics
- Warranty Period
- 2 years
