Line Interactive UPS with PWM Output

This line interactive UPS provides reliable power protection against power outages and voltage fluctuations. Featuring PWM output, it ensures stable power to connected devices.

Request a Quote Download PDFPDF

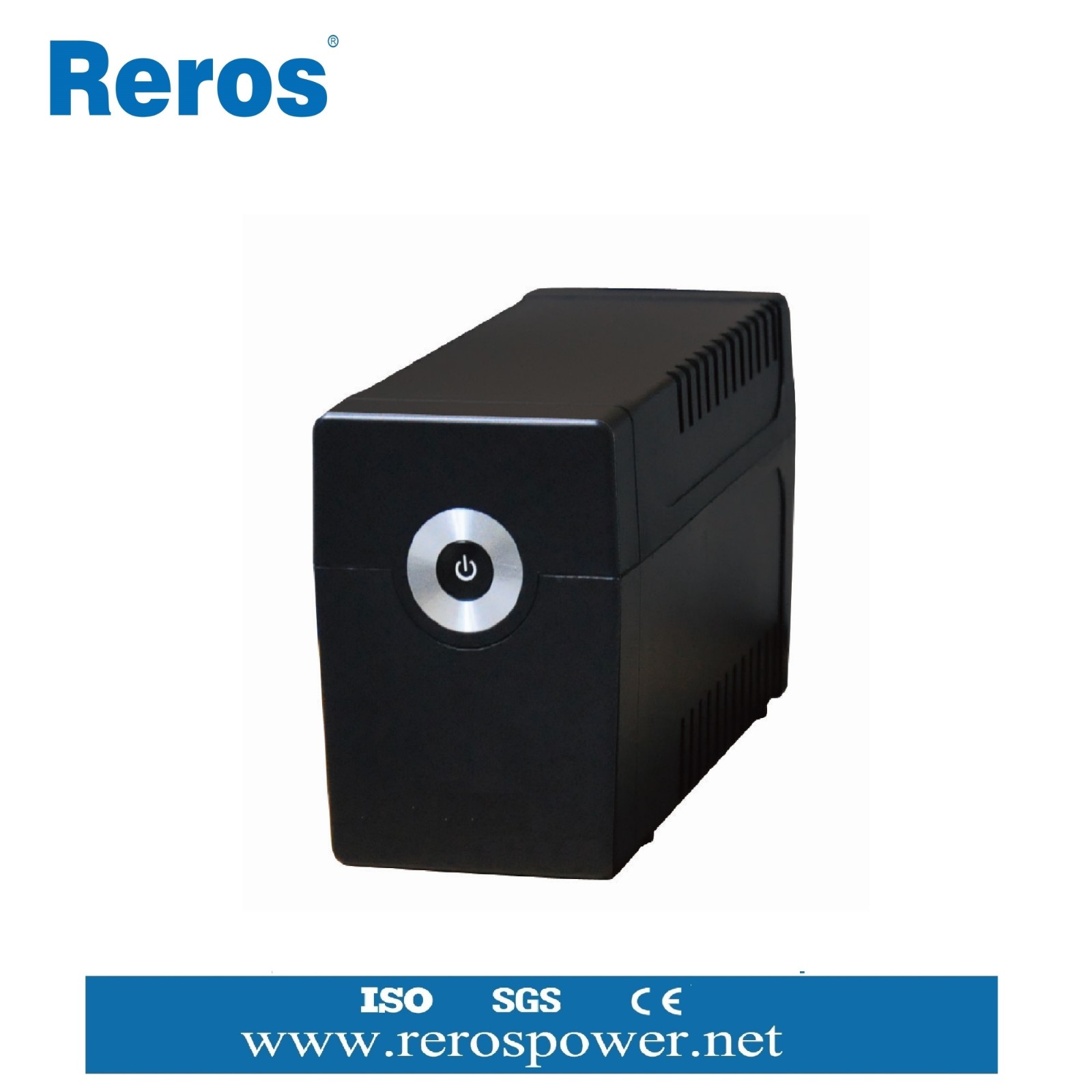

Line Interactive UPS (PWM output)- Plastic Case - Image 1

Technical Specifications

Overview

Reliable Power Protection

This line-interactive UPS series provides robust power protection for sensitive electronic equipment, effectively safeguarding against power outages, voltage fluctuations, and surges. Featuring both PWM and Pure Sine Wave output options, these units ensure stable and clean power delivery for computers, networking gear, and workstations. Housed in a durable plastic casing, the design is compact and suitable for small office and home environments, offering essential peace of mind for critical operations.

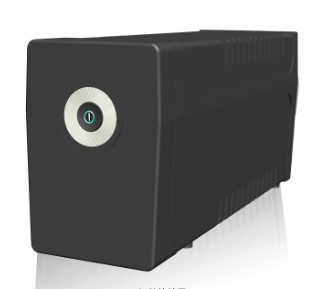

Line Interactive UPS unit in plastic case — Compact and durable plastic case design for desktop environments.

Performance

Automatic Voltage Regulation: CPU controlled, 2 or 3 steps of AVR depending on model
Transfer Time: Typical 2-6ms, Max 10ms
Supported Waveforms: PWMPure Sine Wave

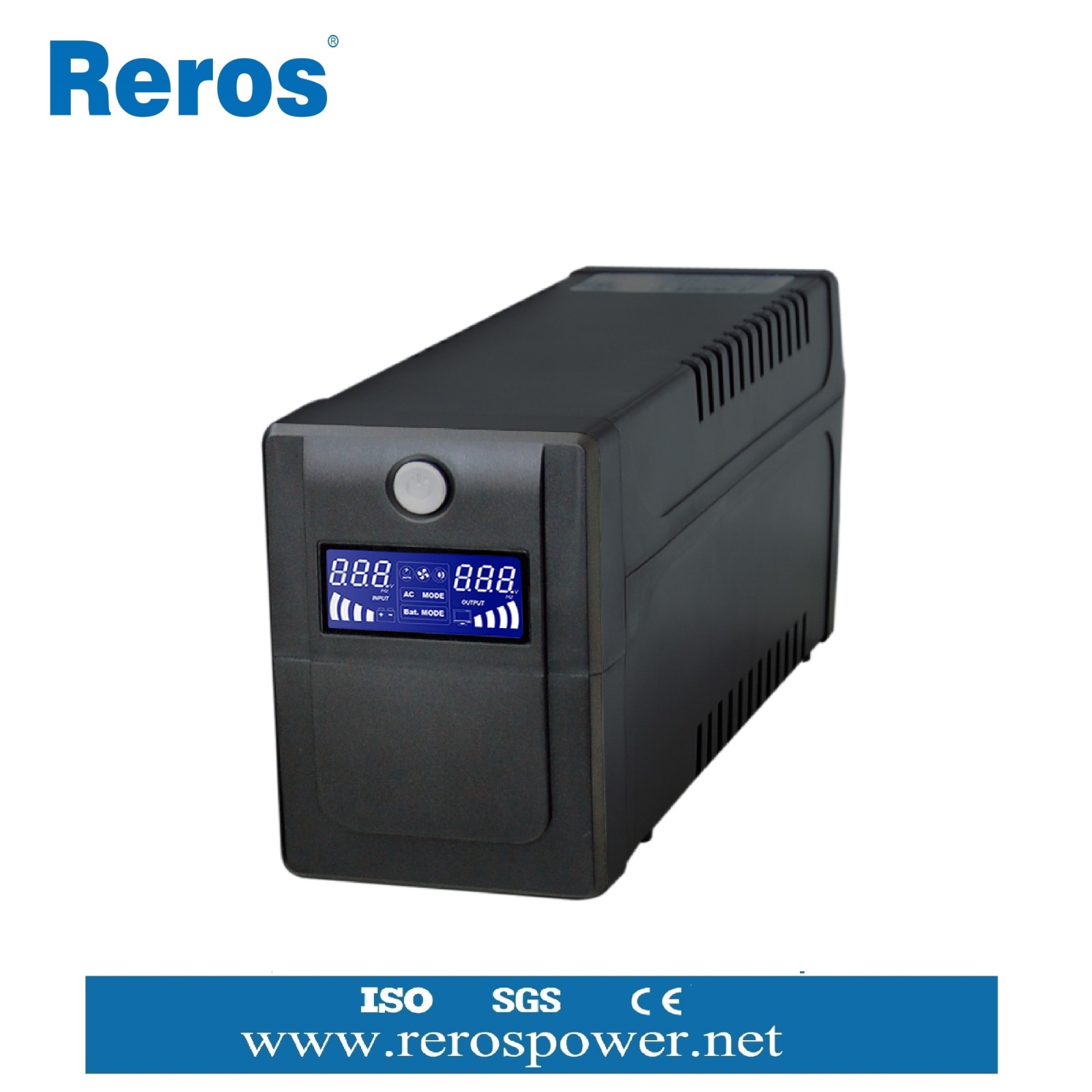

UPS front panel display showing status — Clear front panel interface for monitoring power status and output.

Technical Specs

Input Frequency Range: 45-65 Hz
Output Frequency: 50±0.1Hz / 60±0.1Hz (Auto sensing)
Charging Period: 4-6 hours to 90% capacity

Model Comparison

PWM Output Series Specifications

Model	Capacity	Weight
N-500	500VA/300W	3.8kg
N-600	600VA/360W	4.0kg
N-800	800VA/480W	4.3kg
N-1000	1000VA/600W	7.0kg
N-1200	1200VA/720W	7.2kg
N-1500	1500VA/900W	9.0kg
N-2000	2000VA/1200W	11.1kg
N-3000	3000VA/1800W	20.4kg

Pure Sine Wave Series Specifications

Model	Capacity
NSL-1KL(S)	1000VA/800W
NSL-1.5KL(S)	1500VA/1200W
NSL-2KL(S)	2000VA/1600W
NSL-3KL(S)	3000VA/2400W
NSL-5KL(S)	5000VA/4000W

Front view of NSL-1~2KL(S) series — Front panel view of the Pure Sine Wave series.

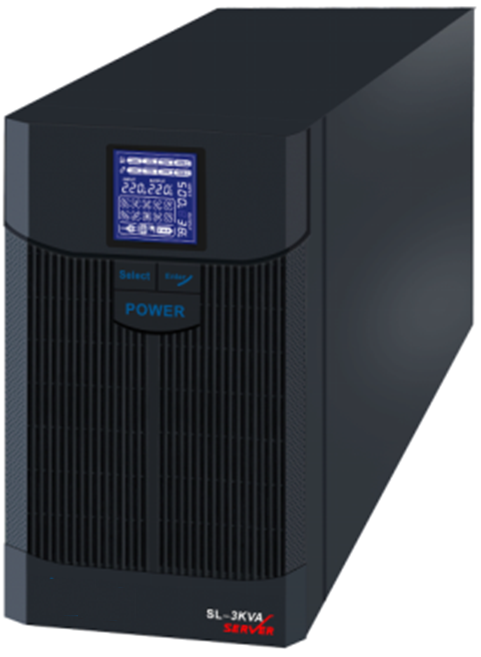

Front view of NSL-3~5KL(S) series — Front panel view of the higher capacity Pure Sine Wave series.

Features

Interface Options: RJ45/11USBLCD DisplayLED Indicators

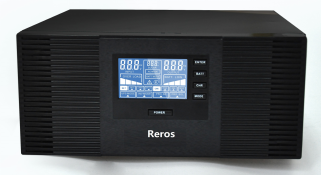

Close up of UPS control interface — User-friendly control interface with status indicators.
