Technical Specifications
Overview
High-Performance Industrial Ventilation

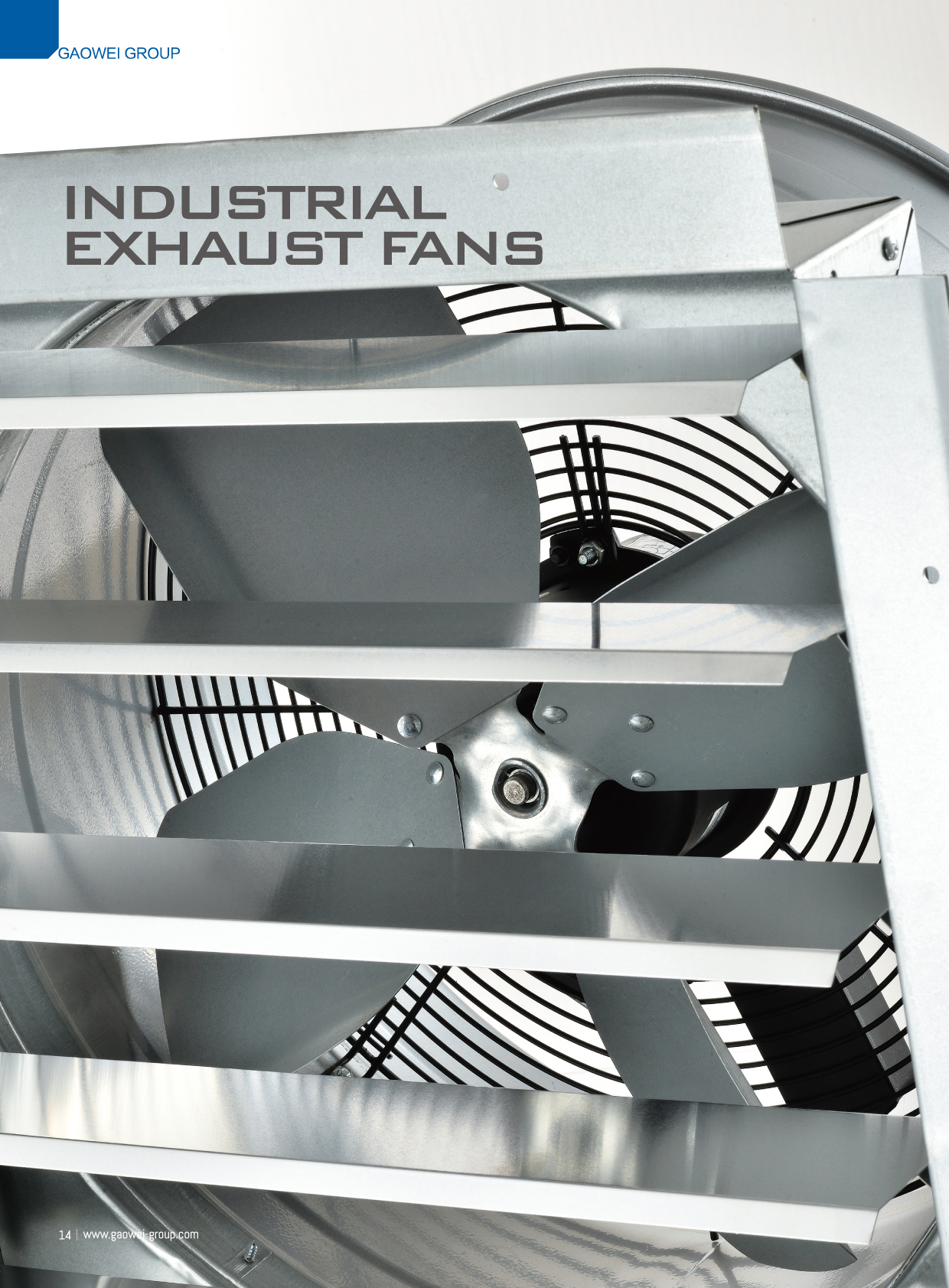

This industrial exhaust fan is engineered with galvanized steel housing, offering exceptional resistance to rust and heat for long-lasting durability in demanding environments. Designed for efficiency, the unit combines a high-quality motor with aerodynamically optimized blades to deliver significant air volume while maintaining low noise levels. It serves as an ideal ventilation solution for a wide range of commercial, industrial, and agricultural applications, including factories, warehouses, and farms.
Key Features
- Suitable Applications
- CommercialIndustrialAgriculturalWarehousesFactoriesWorkshops
- Housing Material
- Galvanized Steel
Technical Specifications
Model Comparison Table
| Model | Power (W) | Air Volume (m³/h) | Rotation (RPM) | Current (A) |
|---|---|---|---|---|
| GFP14 | 220 | 1,400 | 1,380 | 1.9 |
| GFP18 | 300 | 2,800 | 1,100 | 2.7 |
| GFP30 | 570 | 5,500 | 1,050 | 5.2 |
Electrical Standards
120 V
Voltage
60 Hz
Frequency
