Industrial Steam Boiler

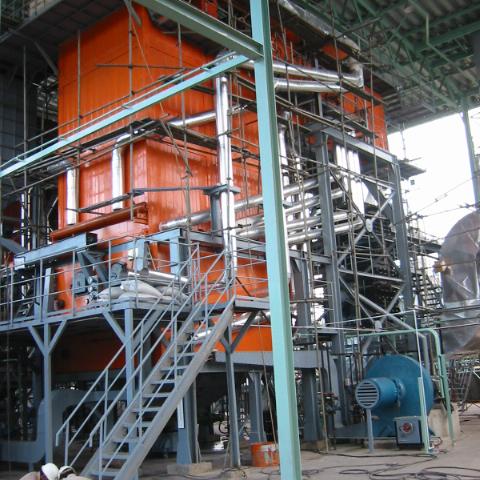

This industrial steam boiler is designed for high-pressure steam generation. It features a complex network of steel support structures, piping, and scaffolding.
Technical Specifications
Overview
High-Performance Industrial Steam Boiler
This industrial steam boiler utilizes a reliable bubbling bed combustion system designed to deliver high evaporation capacity for demanding industrial environments. With a robust design that adheres to both China and ASME standards, it ensures operational excellence and safety. The unit is optimized for efficiency, featuring advanced thermal management to maintain consistent saturated steam temperatures.
Performance Metrics
Rated Evaporation
16 ton/h
Evaporation Capacity
- Design Efficiency
- 85 %
Technical Specifications
- Working Pressure
- 1 MPa
- Saturated Steam Temperature
- 186 ℃
- Feed Water Temperature
- 104 ℃
- Exhaust Flue Gas Temperature
- 150 ℃
Operation & Standards
- Combustion Type
- Bubbling Bed
- Blowdown Rate
- 2 %
- Design Codes
- China StandardASME Standard
