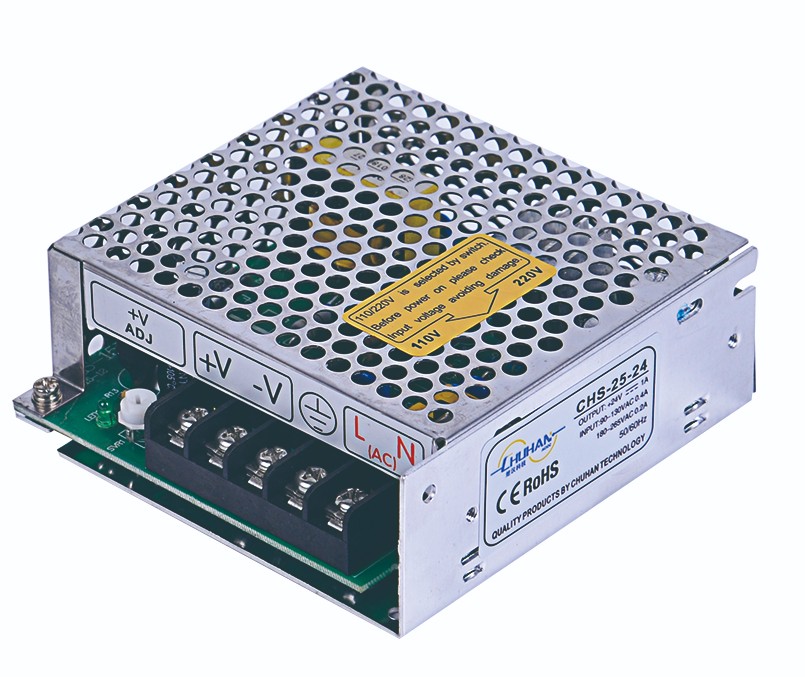

Industrial Single Output 24V Power Supply
This single output power supply is designed for industrial applications. It features selectable AC input and provides a stable 24V DC output.
Technical Specifications
Overview
Industrial-Grade Reliability
This industrial single-output power supply is engineered for demanding applications requiring high efficiency and low noise performance. Designed with a compact, lightweight form factor, it offers versatile input voltage options and robust protection features, including overload and overvoltage safeguards. Ideal for integration into aerospace, military, and various home appliance apparatus, this unit ensures stable and reliable power delivery.
Electrical Specifications
Available Output Voltages
- 5V
- 12V
- 15V
- 24V
Key Performance Metrics
24 V
Rated Output Voltage
1 A
Rated Current
- Input Voltage Range
- 90-130VAC180-265VAC
- Frequency
- 50/60Hz
Physical & Safety
Safety Protections
Overload ProtectionOvervoltage Protection
Design Features
| Feature | Description |
|---|---|
| Enclosure | Metal |
| Wiring | Screw Terminals |
| Adjustment | Built-in Potentiometer |
| Indicator | LED Status Light |
- Dimensions
- 99 x 97 x 35 mm
- Certifications
- CERoHS
