Technical Specifications
Overview
Industrial Robotic Arm for Material Handling
This high-performance industrial robotic arm is engineered for precise material handling, featuring a robust 4-degree-of-freedom design. It is optimized for versatile automation tasks, including stacking, unstacking, transferring, stamping, and loading/unloading across sectors such as food, chemical, and packaging industries. With a 50kg payload capacity and advanced AC servo drive technology, it delivers reliable efficiency and repeatable performance for demanding production environments.
Key Metrics
Payload Capacity
50 kg
Payload
660 kg
Machine Weight

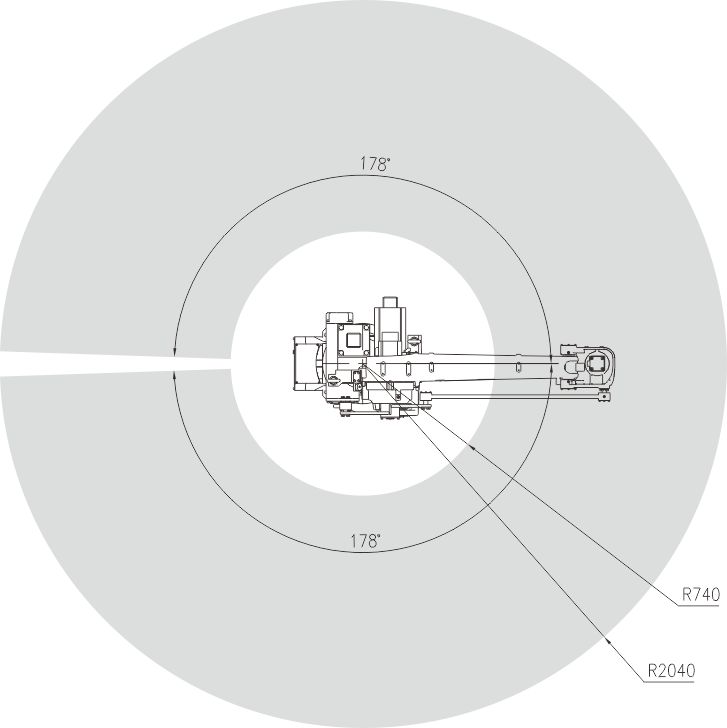

2,040 mm
Motion Radius
Technical Specifications
Core Technical Details
| Feature | Value |
|---|---|
| Degrees of Freedom | 4 |
| Drive System | AC Servo Drive |
| Repeatability | ±0.2 mm |
| Wrist Allowable Load Inertia | 4.5 kg·m² |
| Cycle Time | 1700 r/h |
Joint Motion Range
| Joint | Range (°) | Top Velocity (m/s) |
|---|---|---|
| J1 | ±178 | 171 |
| J2 | +90~-40 | 171 |
| J3 | +65~-78 | 171 |
| J4 | ±360 | 222 |
Applications
Automation Tasks
- Stacking
- Unstacking
- Transferring
- Stamping
- Loading and Unloading
- Suitable Industries
- PackagingBeverageChemicalFood Processing
