Technical Specifications
Overview
High-Performance Industrial Robotic Arm
This industrial robotic arm is engineered for high-precision material handling, offering robust construction and advanced motion control. It is designed to streamline complex tasks such as stacking, unstacking, transferring, stamping, and loading/unloading. Suitable for diverse sectors including packing, chemical, and food industries, this modular system integrates easily with various end-effectors for reliable, automated operation.
Applications
- Primary Applications
- StackingUnstackingTransferringStampingLoadingUnloading
- Suitable Industries
- PackingBeverageChemicalFood Industry
Technical Specifications

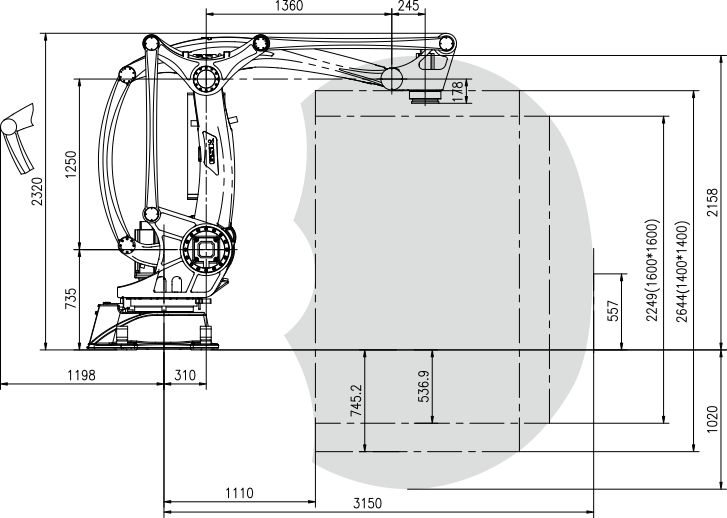

Working Range Metrics
1,600 mm
Max Reach
1,400 mm
Horizontal Range
1,400 mm
Vertical Range
180 °
Working Range

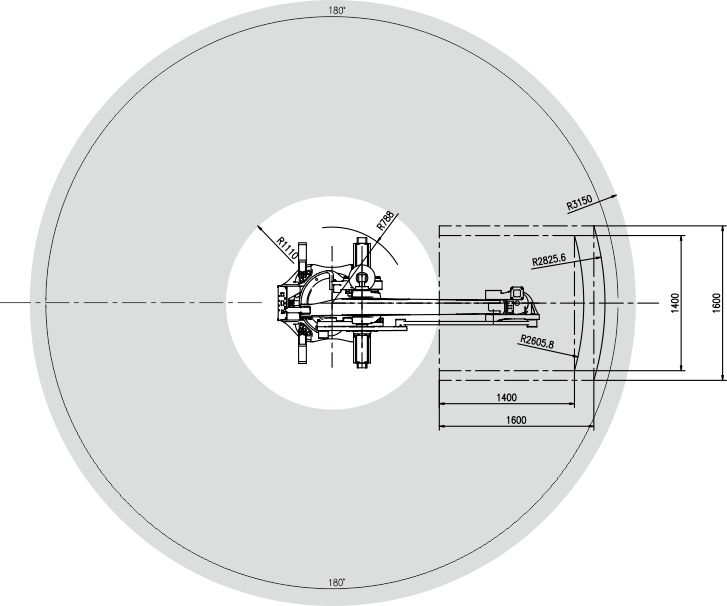

Work Envelope Radii
- R1110
- R788
- R2605.8
- R2825.6
- R3150
Available Models
RMD/120RMD/160RMD/200RMD/300
