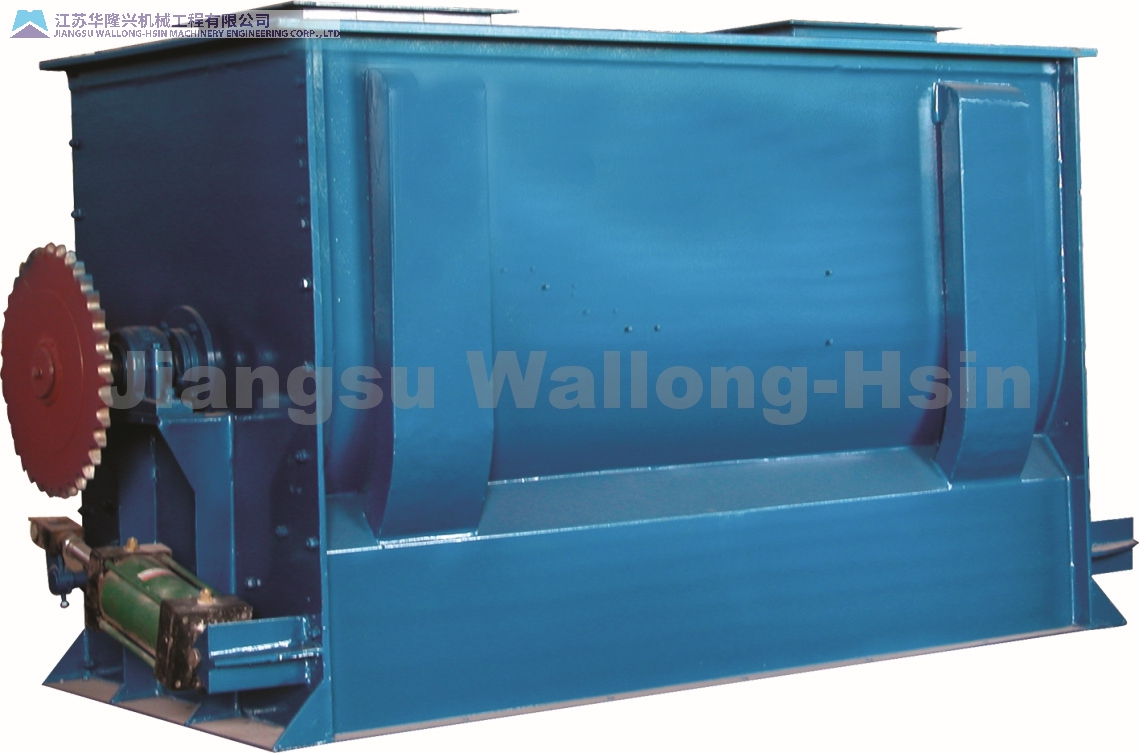

Industrial Ribbon Mixer
The industrial ribbon mixer is designed for the efficient mixing of dry materials. It features a horizontal trough with a rotating ribbon agitator that moves materials both axially and radially for thorough blending.
Technical Specifications
Overview
Industrial Ribbon Mixer
This industrial ribbon mixer is designed for the efficient blending of dry materials in various applications, including food processing, chemical, and feed production. It features a horizontal trough with a rotating ribbon agitator that ensures thorough axial and radial mixing. Built for reliability, the machine offers consistent performance with a wide-open discharge port to minimize material residue and ensure easy handling.
Performance
Mixing Efficiency
3 min
Min Mixing Time
6 min
Max Mixing Time
7 %
Coefficient of Variation (CV)
Applications
- Suitable Industries
- Feed ProductionPremix FeedChemical ProcessingFood ProcessingFlour Milling
Technical Specifications
Model Specifications
| Model | Output (kg/p) | Power (kW) |
|---|---|---|
| SLHY1 | 500 | 7.5 |
| SLHY2.5 | 1,000 | 15 |
| SLHY5 | 2,000 | 30 |
Design Features
Key Features
- Wide open door discharge port
- Minimized material leftover
- High sealing performance
- Robust horizontal trough design
- Heavy-duty motor and drive system
