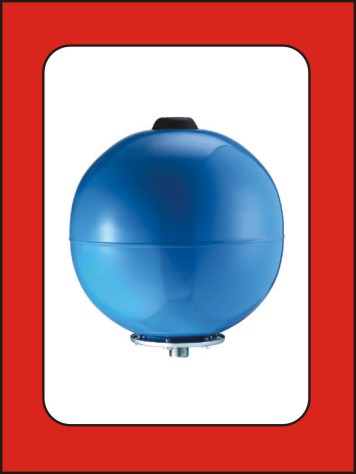

Industrial Pressure Tank
This pressure tank is designed for industrial applications requiring consistent pressure maintenance. It features a robust construction with a flanged connection for secure mounting and efficient fluid transfer.
Technical Specifications
Product Overview
Industrial Pressure Tank Overview
These industrial pressure tanks are designed for reliable pressure regulation and fluid storage in demanding environments. Featuring a robust spheroidal construction, they are built to withstand high pressures and temperatures while maintaining consistent performance. The compact design ensures easy integration into existing fluid management systems, suitable for a wide range of industrial applications.
Technical Specifications
- Maximum Pressure
- 8 bar
- Maximum Temperature
- 99 °C
- Air Pressure Range
- 1.5 - 1.8 bar
- Connection Sizes
- 1/2"G3/4"G1"G
Model Range
Model Specifications
| Capacity (L) | Diameter (mm) | Height (mm) |
|---|---|---|
| 1 | 80 | 150 |
| 5 | 114 | 180 |
| 8 | 200 | 235 |
| 12 | 205 | 400 |
| 19 | 265 | 400 |
| 24 | 265 | 470 |
| 36 | 383 | 470 |
