Technical Specifications
Overview

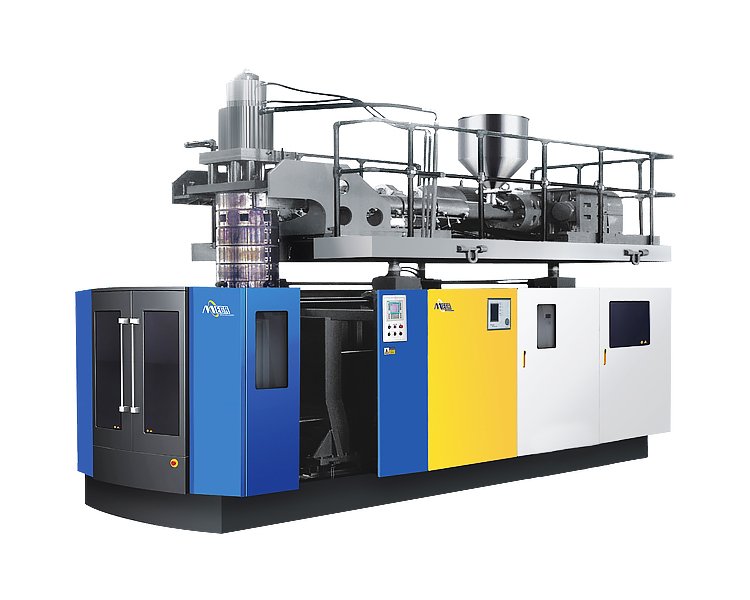

Industrial Accumulator Head Blow Molding
This series of accumulator head extrusion blow molding machines is specifically engineered for the high-volume production of large-format plastic hollow products. With material storage capacities reaching up to 12kg, these machines are ideal for manufacturing industrial containers ranging from 20L to 120L, as well as automotive components like gas tanks and wind pipes. The system integrates a high-performance closed-loop hydraulic unit, ensuring consistent part quality while optimizing power consumption.
Technical Specifications
Performance Metrics
12 kg
Max Accumulator Capacity
120 L
Max Container Volume
Model Comparison
| Model | Theoretical Output (Pcs/h) | Weight (T) | Dimensions (L×W×H m) |
|---|---|---|---|
| MG-S25L | 600 | 11.5 | 4.1×2.2×2.5 |
| MG-S50L | 450 | 12 | 4.5×2.4×3.8 |
| MG-S80L | 360 | 16 | 5.4×2.5×3.9 |
| MG-S120L | 360 | 17 | 5.2×2.5×4.2 |
- Supported Materials
- PEPP
Extrusion Head
Heating Zones
- 4 zones (MG-S25L, MG-S50L)
- 5 zones (MG-S80L, MG-S120L)
- Heating Capacity
- 5 KW
