Industrial Centrifugal Compressor Unit
This industrial compressor unit is available in horizontal split, vertical split, and integrally-geared configurations. Each type offers specific maximum discharge pressures to suit diverse application needs.
Technical Specifications
Product Overview
High-Performance Centrifugal Compressor Units
This industrial centrifugal compressor unit is engineered for demanding large-flow conditions and continuous gas transmission across the oil, gas, and petrochemical sectors. Designed in accordance with API617 standards, it offers a robust service life of at least 30 years with a continuous maintenance-free running time of up to 40,000 hours. The system provides stable, pulsation-free pressure and versatile driving options including motors, steam turbines, and gas turbines.
Performance Metrics
Key Performance Metrics
40,000 h
Maintenance-Free Hours
30 years
Design Service Life
70 MPa
Max Discharge Pressure
Technical Specifications

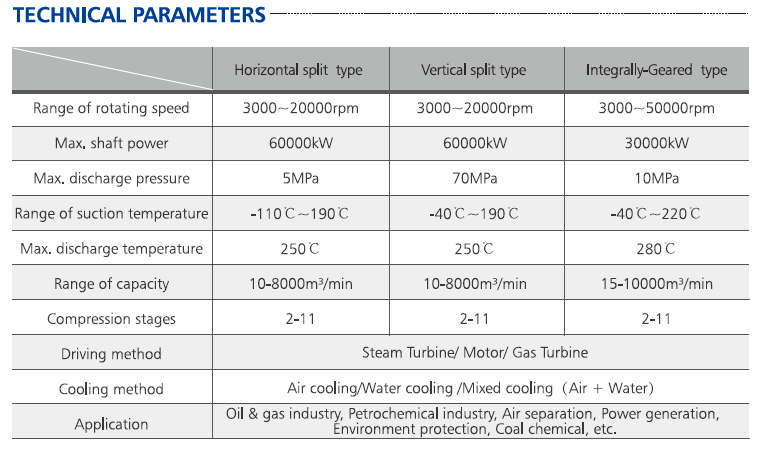

Technical Parameters by Type
| Parameter | Horizontal Split | Vertical Split | Integrally-Geared |
|---|---|---|---|
| Rotating Speed (rpm) | 3000-20000 | 3000-20000 | 3000-50000 |
| Max Shaft Power (kW) | 60000 | 60000 | 30000 |
| Max Discharge Pressure | 5MPa | 70MPa | 10MPa |
| Suction Temp Range | -110°C to 190°C | -40°C to 190°C | -40°C to 220°C |
| Max Discharge Temp | 250°C | 250°C | 280°C |
| Capacity (m³/min) | 10-8000 | 10-8000 | 15-10000 |
- Compression Stages
- 2-11 stages

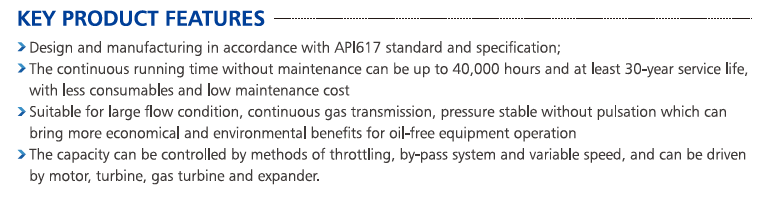

Key Features
Compliance Standards
API617
Operational Advantages
- Continuous gas transmission without pulsation
- Oil-free equipment operation
- Economical and environmental benefits
- Low maintenance costs and reduced consumables
- Capacity control via throttling, by-pass, or variable speed
System Configuration
- Driving Methods
- MotorSteam TurbineGas TurbineExpander
- Cooling Methods
- Air coolingWater coolingMixed cooling
Applications
- Target Industries
- Oil & GasPetrochemicalAir SeparationPower GenerationEnvironment ProtectionCoal Chemical
