Technical Specifications
Product Overview

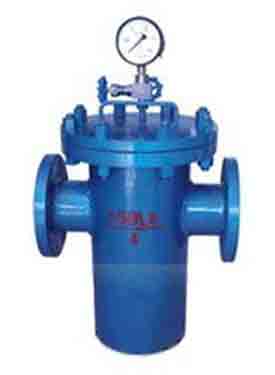

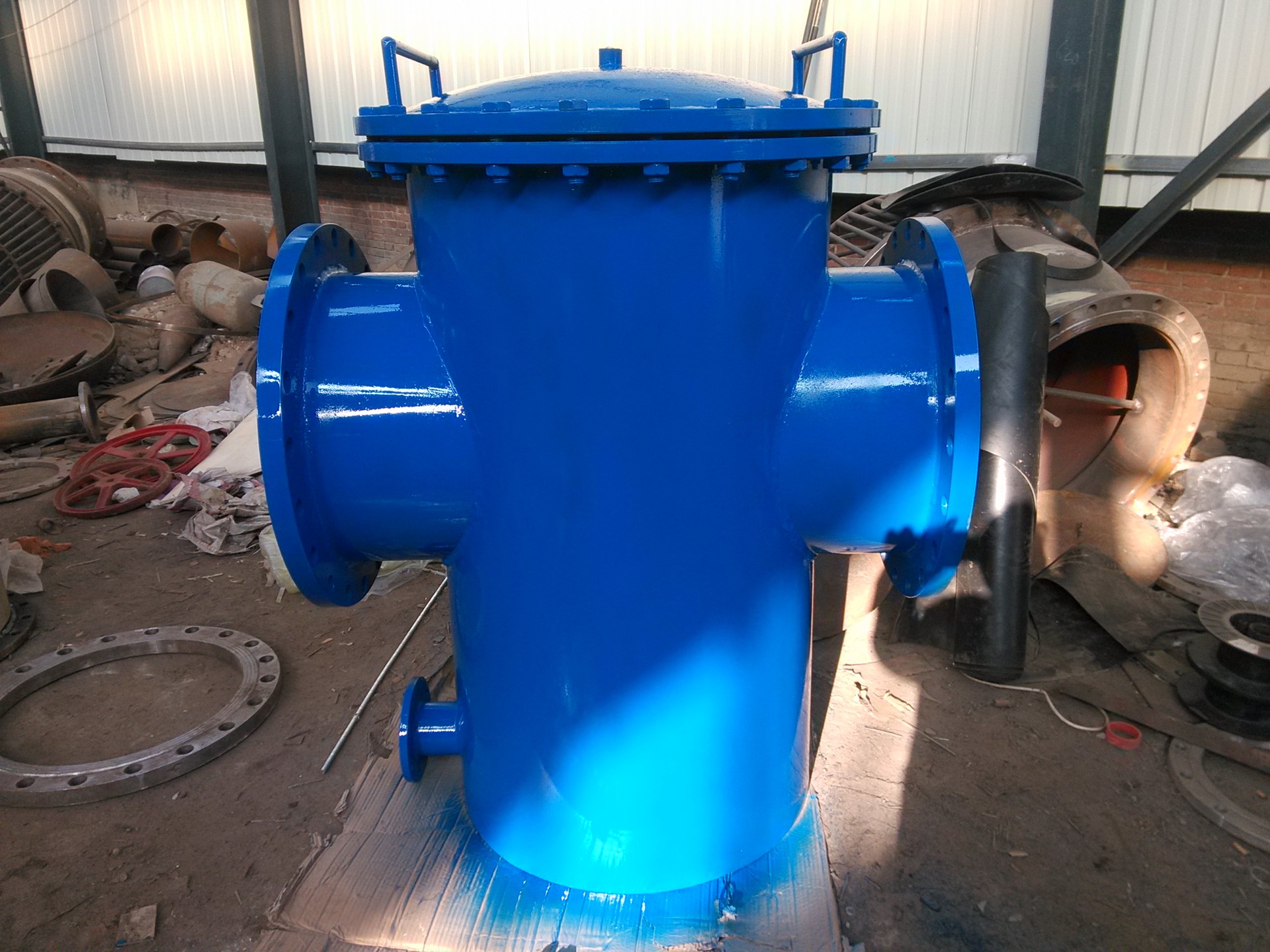

Industrial Basket Strainer
This industrial basket strainer is engineered to efficiently remove solid particles from liquid flows, serving as a critical component for protecting downstream equipment. Featuring a robust, bolted-lid design, it allows for convenient access to the internal basket for routine maintenance and cleaning. Built with high-quality materials and flanged connections, this unit is suitable for demanding industrial environments including mining, paper production, and sugar processing.
Technical Specifications
Design Standards
| Criteria | Standard |
|---|---|
| Design | ASME B16.34 |
| Face to Face | ASME B16.10 |
| End Connection | ASME B16.5 |
| Inspection & Test | API 598 |
Size Range
2 in
Minimum Size
14 in
Maximum Size
- Pressure Rating
- 150lb300lb
Materials & Construction
- Body Materials
- Carbon SteelStainless SteelAlloy SteelDuplex Steel
- Screen Materials
- SS304SS316
Applications
Suitable Industries
- Coal mining industry
- Paper-making industry
- Sugar-making industry
- Water treatment
- Oil and gas
- Chemical processing
