Industrial Airflow Dryer for Material Processing
This airflow dryer offers strong drying capabilities, a short working period, and low energy consumption. It is suitable for drying powdery, flake, and heat-sensitive materials.
Technical Specifications
Overview
High-Efficiency Industrial Airflow Drying

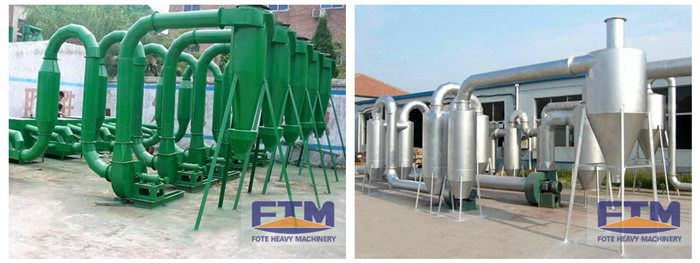

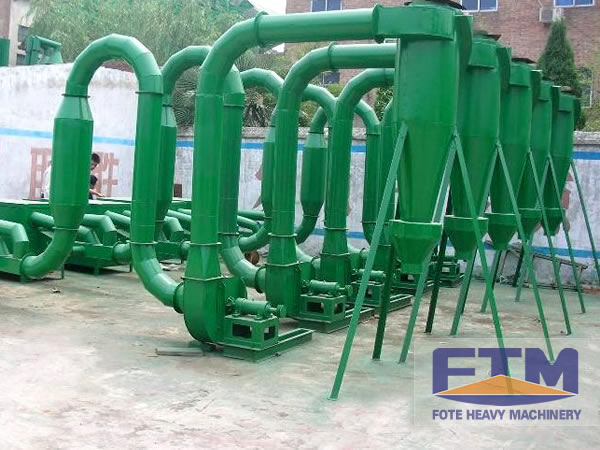

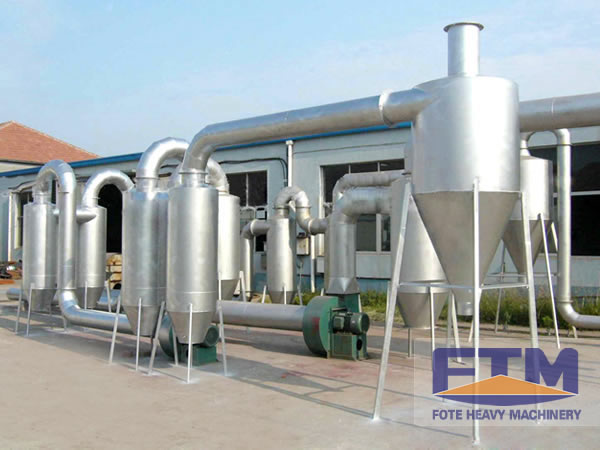

The Industrial Airflow Dryer, also known as a hot air pipe dryer, provides direct heating and rapid moisture removal for a wide range of materials. It is specifically designed for heat-sensitive, powdery, and flake materials, offering a compact, foldable installation to optimize floor space. This system ensures a short working period and low energy consumption while maintaining high-quality output with steady humidity and excellent fineness.
Performance
Maximum Production Capacity
- Key Features
- Strong Drying AbilityShort Working PeriodLow Energy ConsumptionSimple OperationDirect HeatingQuick Drying
Applications
Suitable Materials
- Starch
- Rice flour
- Food products
- Medicine
- Chemical materials
- Sawdust
- Wood shavings
- Agricultural waste
Technical Specifications
Model Specifications & Technical Data
| Model (m) | Capacity (T/H) | Motor Power (KW) | Weight (T) |
|---|---|---|---|
| Φ1.2×10m | 2.5 | 7.5 | 13.5 |
| Φ1.5×12m | 3.3-4.9 | 10 | 18.9 |
| Φ1.5×15m | 4-6 | 18.5 | 21 |
| Φ1.8×12m | 4-6 | 18.5 | 23 |
| Φ2.2×12m | 7-12 | 18.5 | 38 |
| Φ2.2×14m | 7-12 | 22 | 40 |
| Φ2.2×16m | 12 | 30 | 45 |
| Φ2.4×14m | 12 | 30 | 51 |
| Φ2.4×18m | 10-13 | 37 | 54 |
| Φ2.4×20m | 10-14 | 37 | 55 |
| Φ3×20m | 25 | 55 | 78 |
| Φ3×25m | 32-36 | 75 | 105 |
- Installation
- Foldable design for space-saving installation
Operational Principle
How it Works
Wet materials enter the dryer pipe where they are turned over by spread shoveling plates. This ensures complete contact with hot air to accelerate mass transfer. Materials are then discharged through a starry valve under the combined effect of the inclining plates and high-velocity hot air.
