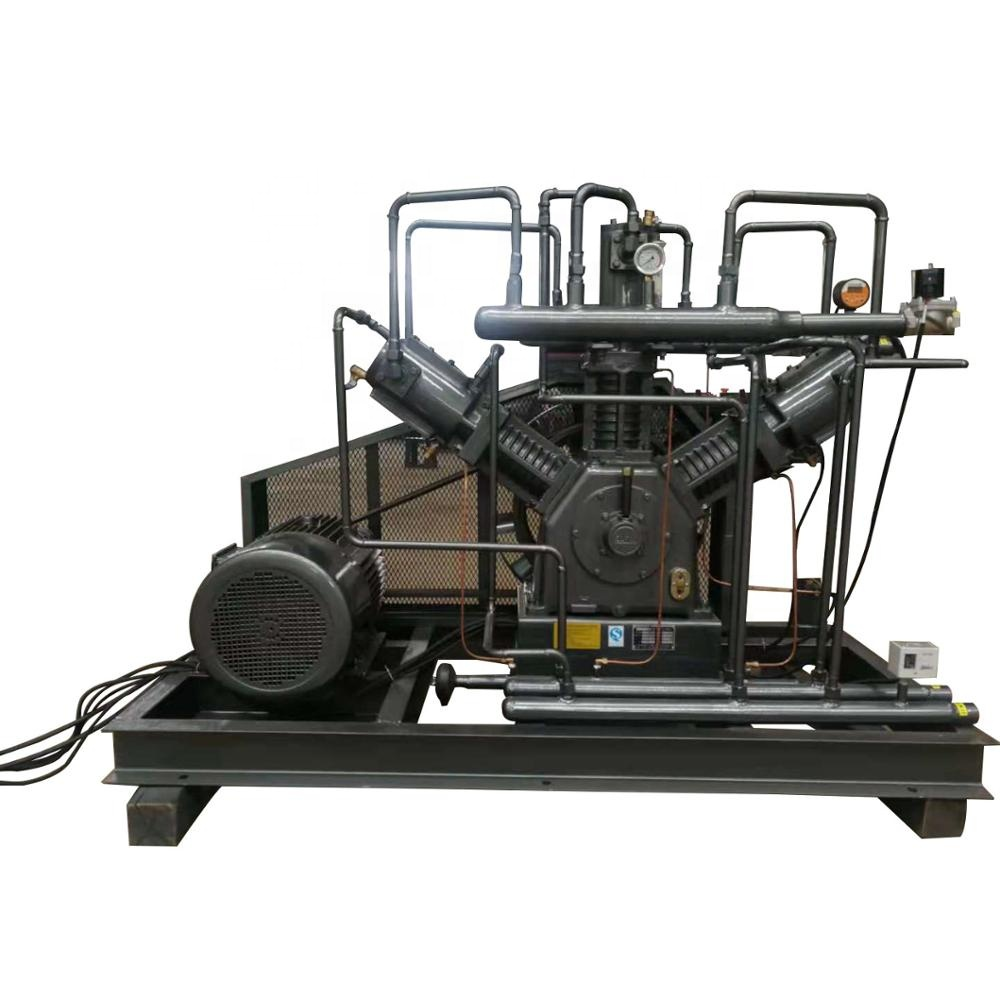

Industrial Air Compressor Unit
This industrial air compressor unit delivers high-pressure air for various applications. It features a multi-cylinder compressor, electric motor, and integrated piping, mounted on a heavy-duty steel frame.
Technical Specifications
Product Overview
High-Performance Industrial Air Compressor
This industrial-grade air compressor unit is designed for demanding high-pressure applications, featuring a robust multi-cylinder reciprocating design. Mounted on a heavy-duty steel skid base for maximum stability and vibration dampening, it integrates an electric motor drive with advanced cooling systems. Equipped with precision pressure gauges and safety valves, it ensures reliable and efficient compressed air delivery for professional B2B operations.
Key Performance Metrics
Key Performance Metrics
3 Mpa
Max Pressure
1.5 m3/min
Max Displacement
15 kw
Max Power

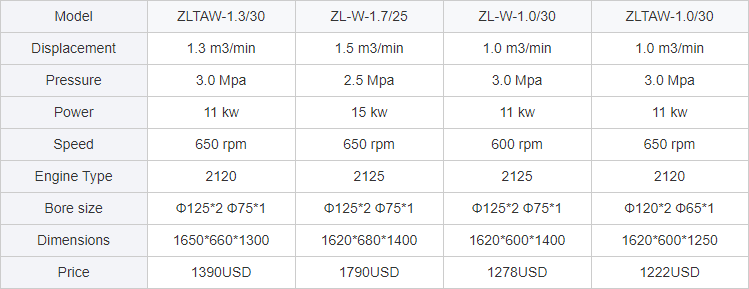

Model Comparison
Technical Specifications by Model
| Model | Displacement (m3/min) | Pressure (Mpa) | Power (kw) | Speed (rpm) | Engine Type |
|---|---|---|---|---|---|
| ZLTAW-1.3/30 | 1.3 | 3 | 11 | 650 | 2120 |
| ZL-W-1.7/25 | 1.5 | 2.5 | 15 | 650 | 2125 |
| ZL-W-1.0/30 | 1 | 3 | 11 | 600 | 2125 |
| ZLTAW-1.0/30 | 1 | 3 | 11 | 650 | 2120 |
Mechanical Details
Bore Sizes
- Φ125*2 Φ75*1
- Φ120*2 Ф65*1
Physical Dimensions
- Dimensions (L*W*H)
- 1650*660*1300 mm1620*680*1400 mm1620*600*1400 mm1620*600*1250 mm
Construction Features
Design Features
- Multi-cylinder reciprocating compressor head
- Heavy-duty steel skid base for stability
- Integrated electric motor drive
- Built-in cooling fan for thermal management
- Integrated pressure gauges and safety valves
