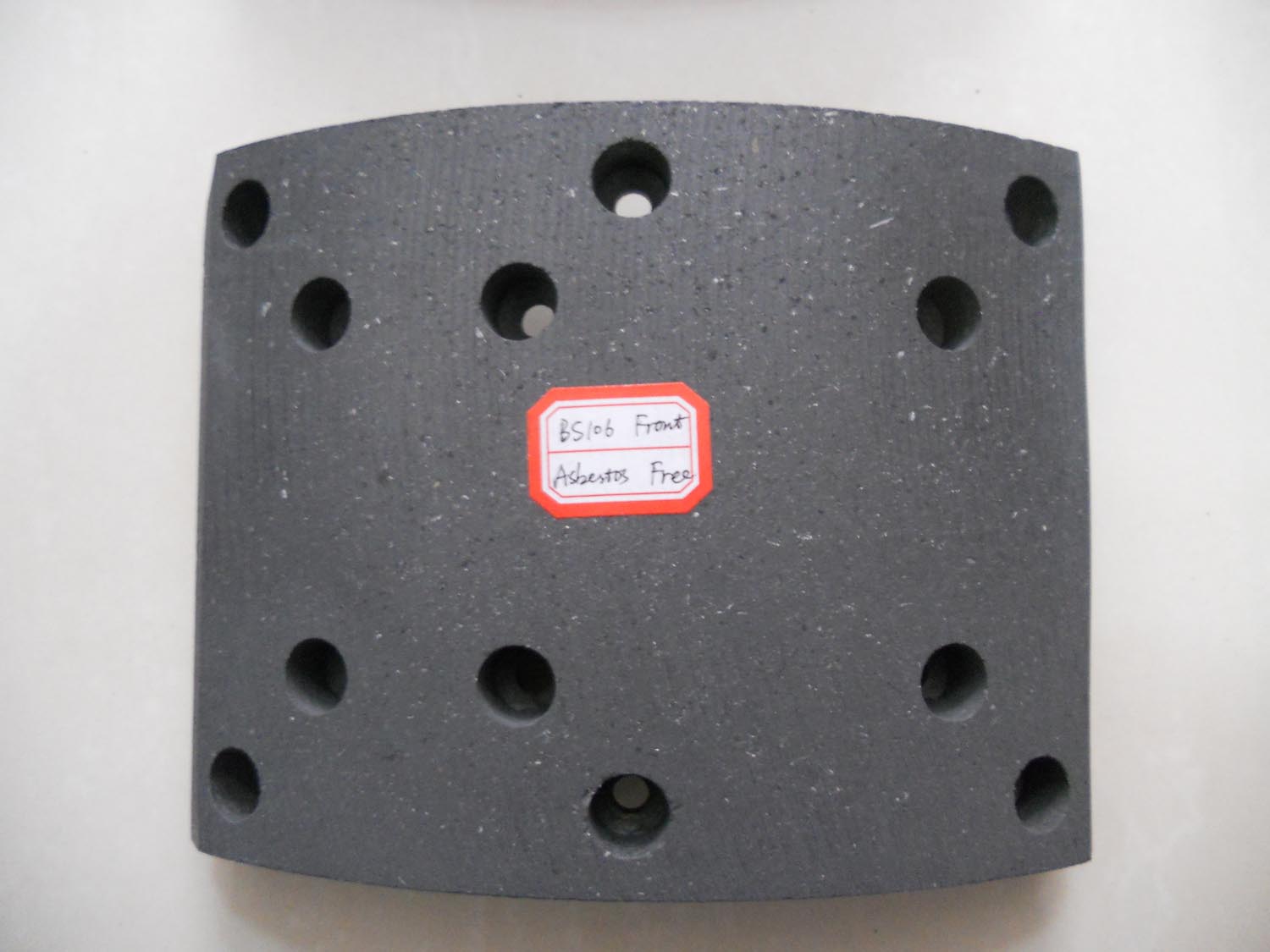

Hyundai Bus Brake Lining
This brake lining delivers excellent stopping power for Hyundai buses. Its durable construction ensures long-lasting, noise-free performance.
Technical Specifications
Product Overview
High-Performance Bus Brake Lining
This high-performance brake lining is engineered for heavy-duty bus applications, providing reliable stopping power and exceptional durability. Constructed from asbestos-free materials, it offers superior heat dissipation and wear resistance to ensure safe operation and extended service life. Designed to meet or exceed OEM specifications, this component features precise mounting configurations for optimal fit and reduced maintenance requirements.

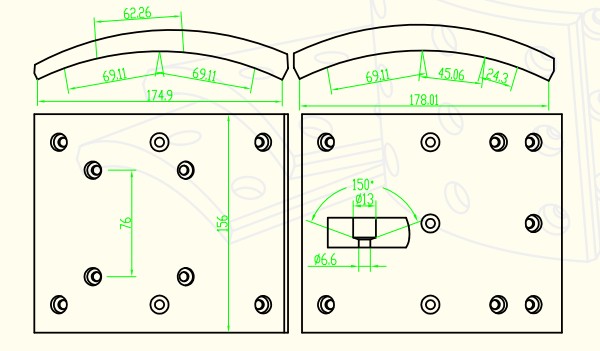

Technical Dimensions
Standard Dimensions
| Specification | Value |
|---|---|
| Primary Lining Set | 200 x 156 x 11.3/15.6 mm |
| Secondary Lining Set | 205 x 156 x 16.7/18.5 mm |
| Mounting Hole Diameter | 13 mm |
| Secondary Mounting Hole | 6.6 mm |
Geometric Metrics
150 °
Mounting Angle
156 mm
Overall Width
76 mm
Plate Height
Material & Compatibility
Application Types
BS/106 FrontBS106 Rear
- Material Composition
- Asbestos FreeHigh Heat ResistanceWear Resistant
